  • 05-2S
  • Nile Series

    05/05-B3/05-Z-B3

    05-B31/05-B32/05-2S/05-SB3

    Application:

    BASIC CULTURE

    Features:



    Standard Width:

    72"(1850mm)/ 96"(2438mm)

    Products Certification:

    1 2 3

Product Description

Nile  is our classical roller shades fabrics series, the beautiful coating is wildly appreciated by our clients, PVC free. It complies with Oeko-Tex 100 and GREENGUARD standard. Cold knife can be applied in processing.

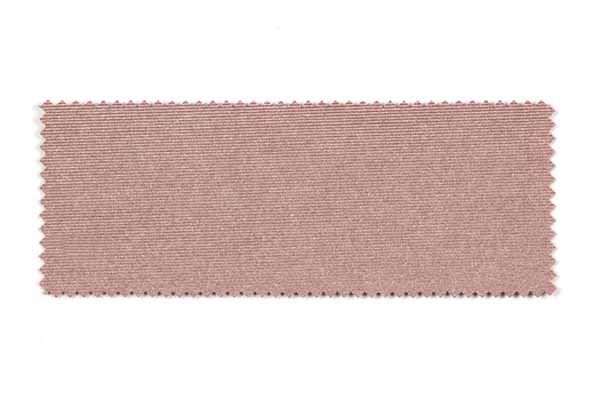

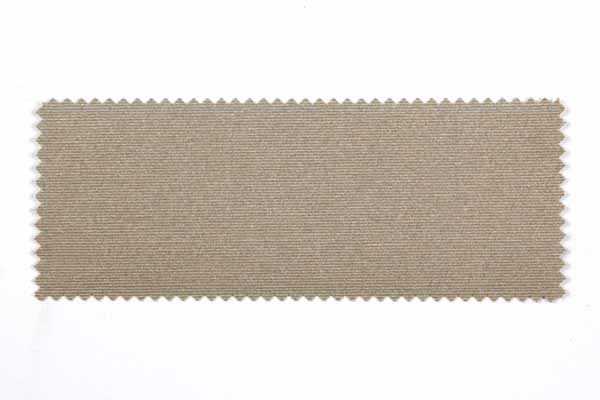

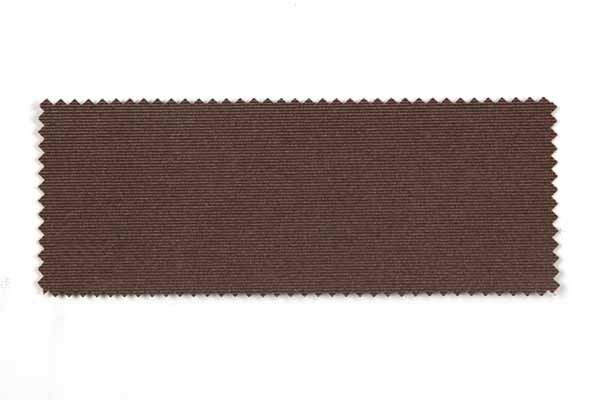

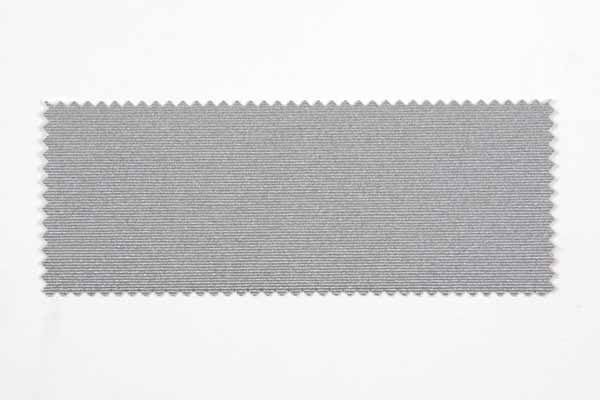

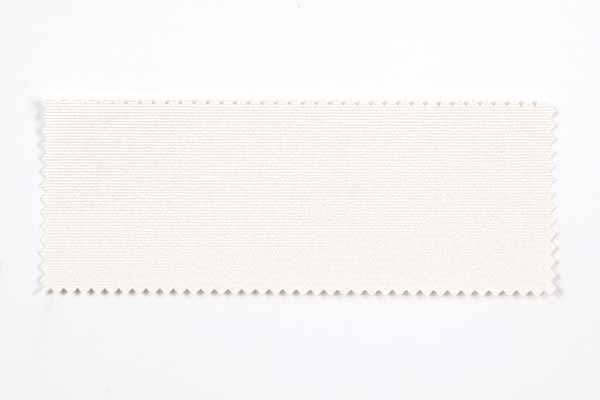

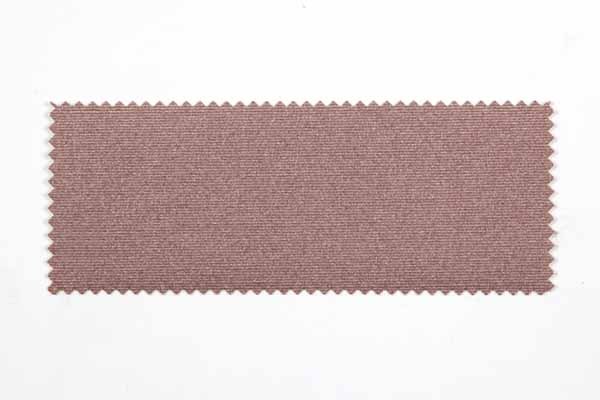

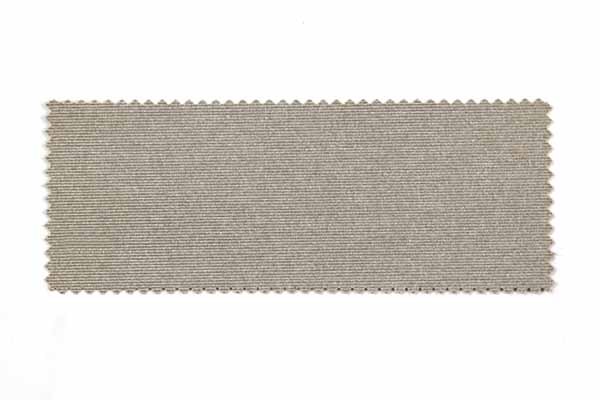

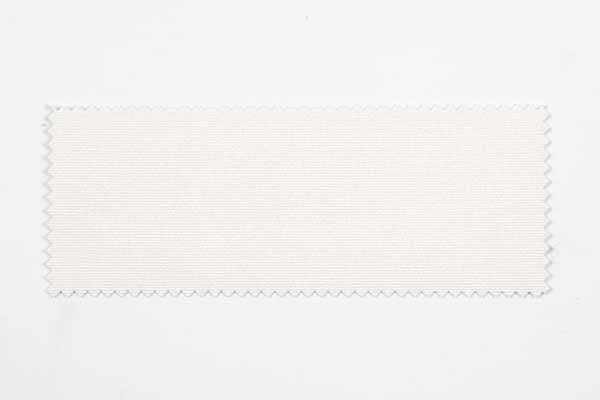

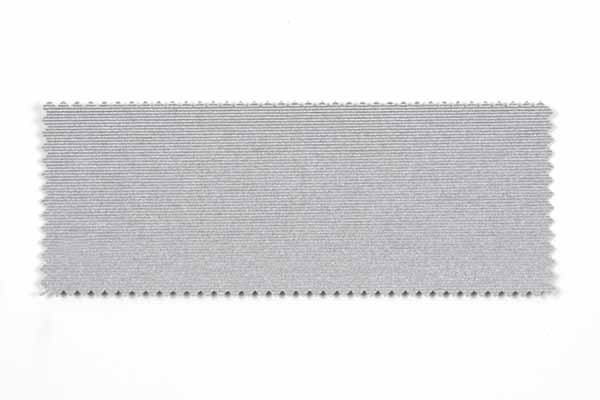

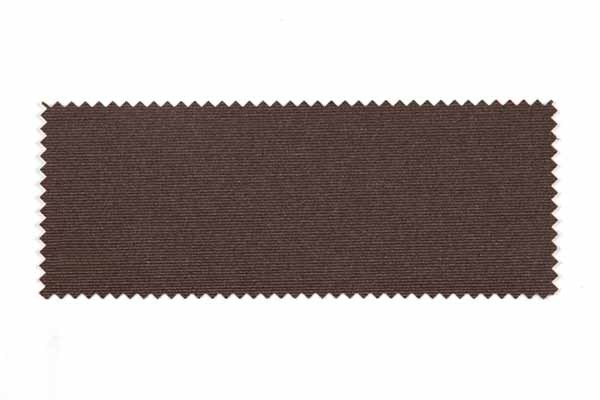

05-2S: Dim out fabrics with pearlized coating, same color in both side, the rough and thick base fabrics offer you a tough feel. 17 standard color.

05-B3: Black out fabrics with white form coating in back side, it has 8 standard color in front side. Available for many different type of coating.

Standard Width is 2430 mm.

Features

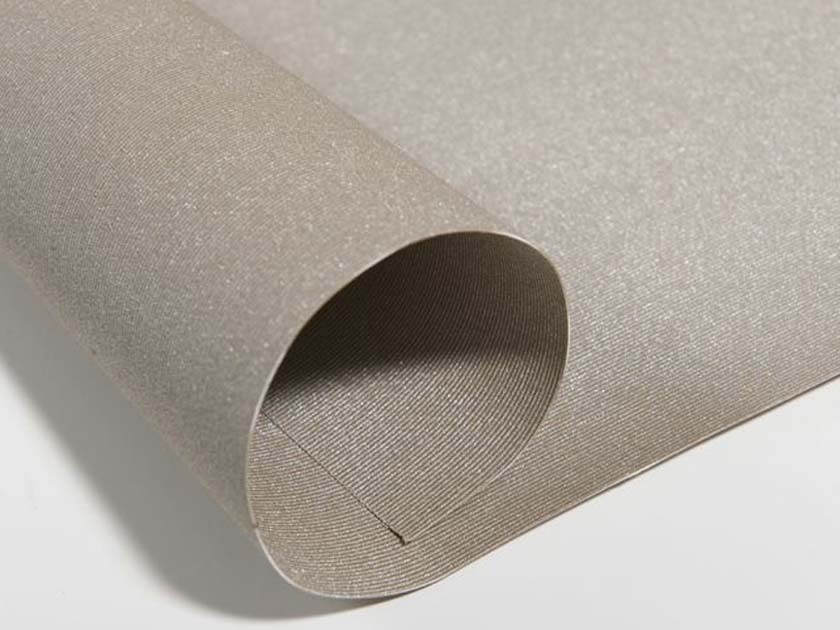

05-2S

Dim-out

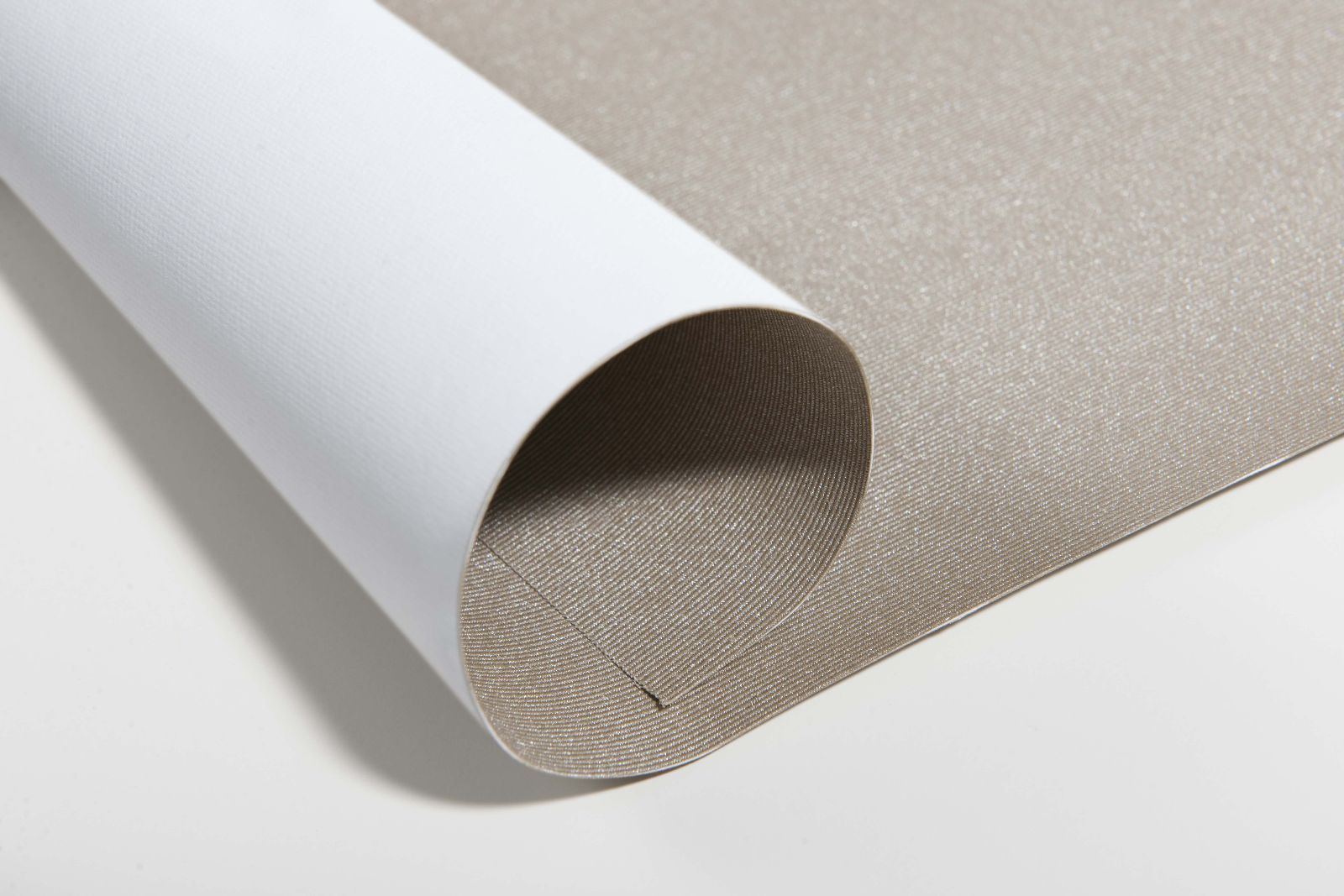

05-B3

Black-out





Specifications

Series 05 05-2S 05-SB3 05-B3 05-B31 05-B32 05-Z-B3
Technique Same color both side Both sides pearlised Front pearlised White back coated White back coated Same color back coated Alu back coated White back coated
Composition PET & RAYON
Standard Width 72"(1830mm)/ 96"(2438mm)
Mesh Weight Abt. 240g/m2 Abt. 270g/m2 Abt. 400g/m2
Thickness Abt. 0.45 mm Abt. 0.65 mm
PVC Content Free
Shading Rate -- 100%
UV-Blocking 100%
Color Fastness ≥4-5 Grade
Fire-retardant and the Standard Upon client's request

B1/DIN4102-1

B1/GB/T5455



Production Process



Weaving
  Professional weaving quipment from ltaly.
Raw material inspection
Raw material inspection (100% inspection)
Dying

Color difference detection equipment

Yarn dyed inspection
Yarn dyed inspection (100% inspection)
Coating & processing inspection



Coating processing inspection (100% inpection)

Final inspection
  100% inpection
Packing





Applicable System & Accessories

Ball chain controlled spring roller system Up-Down matching system Ball chain controlled system with auto-lowering function
Pull the ball chain to raise or drop the blinds in any target position; Gently pull the ball chain, the blinds goes in steady .Special design of the ball chain on stability compromises the mute and the utility of this product. This type has a unique design on the head rail, easy to control and to be installed by DIY. Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system Arc-shaped motorized system

It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights. Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.



Application



Packaging Information





Roll length: 30m + 5m per roll

MOQ: 300 m/color

Carton L W H
Packing Size 78" / 90" / 102" 7.28" 7.28"
Tube L Ø
Packing Size 78" / 90" / 102" 7.08"
