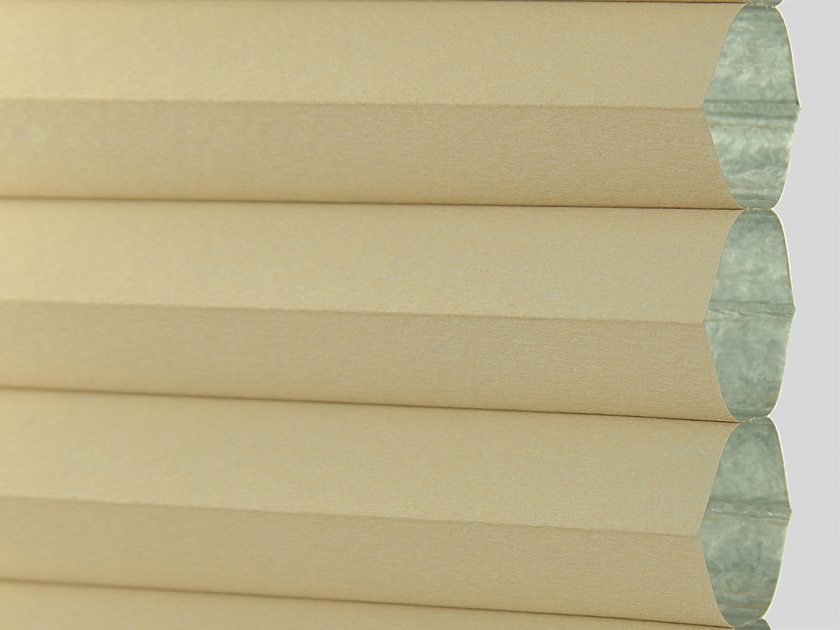

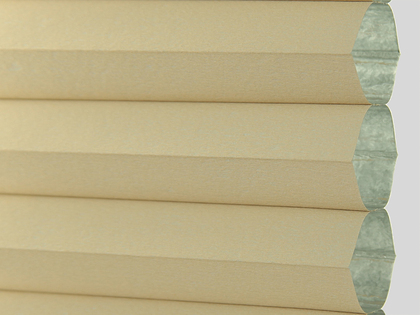

• Insulation Glass Honeycomb Blinds Fabrics



  Features:



  Pleat Height:15mm/20mm



Available Color

• 00 01 02 03 04 05 16 18

Product Description



MST insulation glass blinds material is specialized for being used in between insulation glass with hot and strong UV enviorenment.



Our test shows it can stay with good condition in between IG for over 10 years.

Features





Specifications

Space Between IG	≥15mm	≥19mm	≥24mm
Pleating Width	12.5mm	15mm	20mm
Cell Height	Abt. 8mm	Abt. 10mm	Abt. 13mm
Standard Width	118" (3m)
Blinds/Window	1.1:1
Fabric	Non-woven	Non-woven	Non-woven
Mesh Weight	120±10g/m2	120±10g/m2	145±10g/m2
Functions	Dim Out	Dim Out / Black Out (attached with aluminium foil)
Working Life	≥10 years



Production Process





Applicable System & Accessories

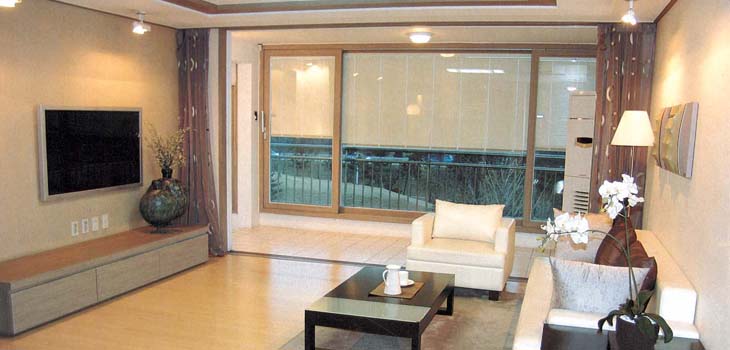

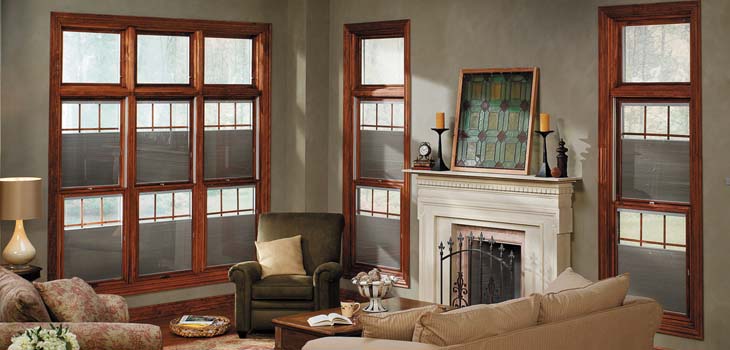

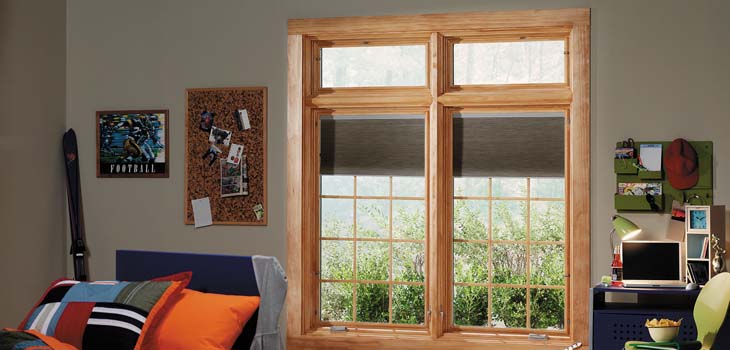

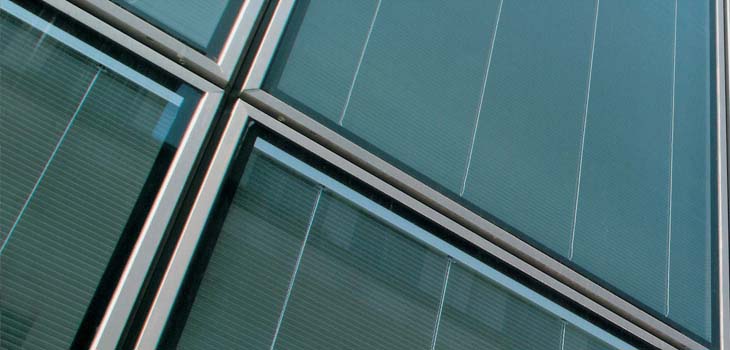

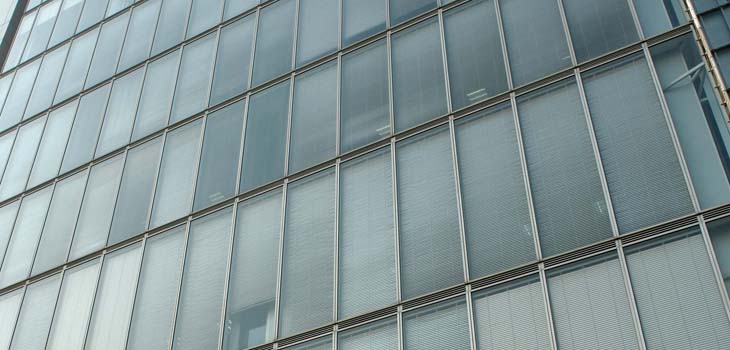

Application





Packaging Information







Fabric length: 18~20m per carton

MOQ: 60m / color



Pleated Height	25mm	38mm	45mm
Packing Size	L120" W16" H1.4"	L120" W16" H1.8"	L120" W16" H2.2"
