Victoria Series
11DA/11DA-SF/11DA-FM/11MD
11DA-B3/11DA-B1/11DA-ZB3/11MD-B3
Application:
Features:
Standard Width:
72"(1830mm)/ 96"(2438mm)
118"(3000mm)
Products Certification:

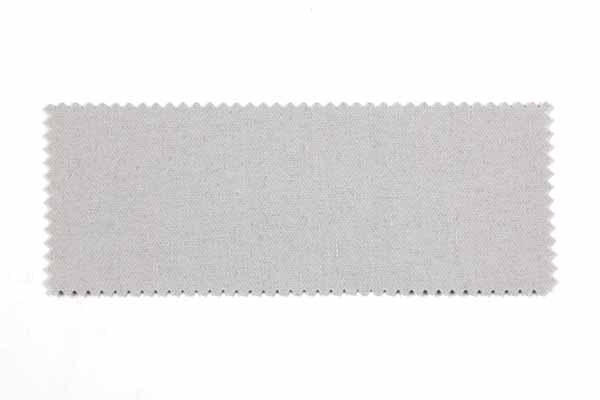

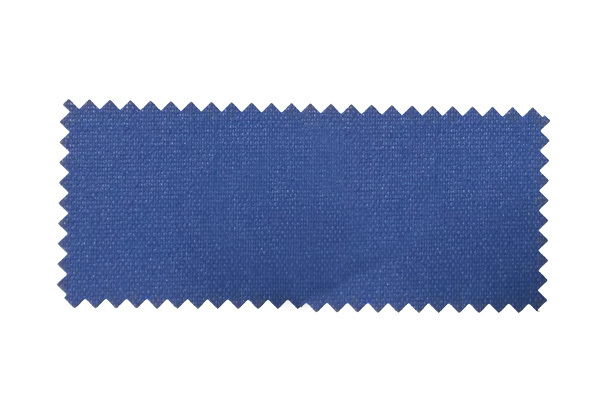

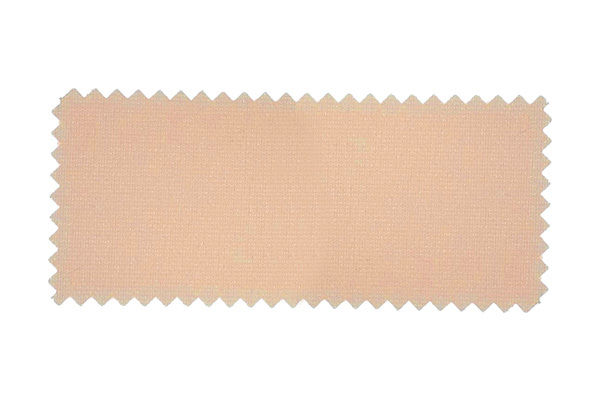

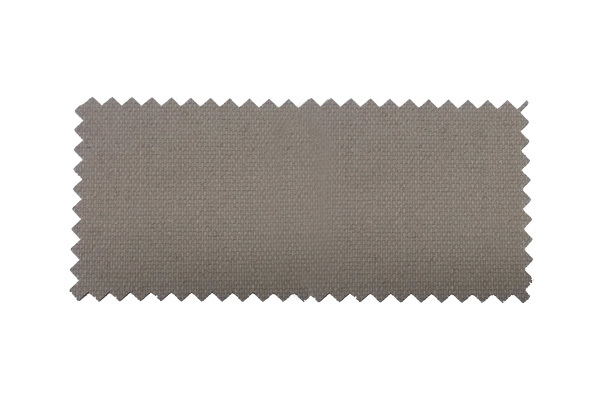

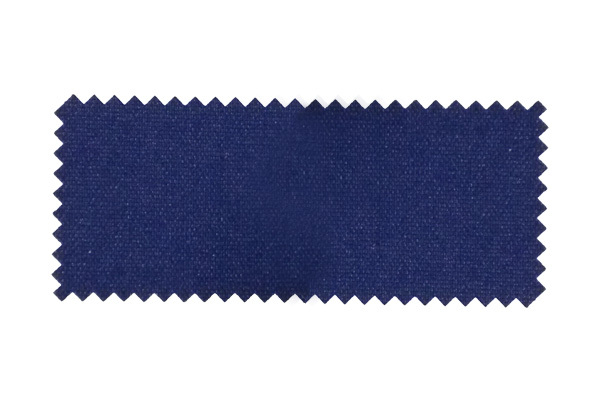

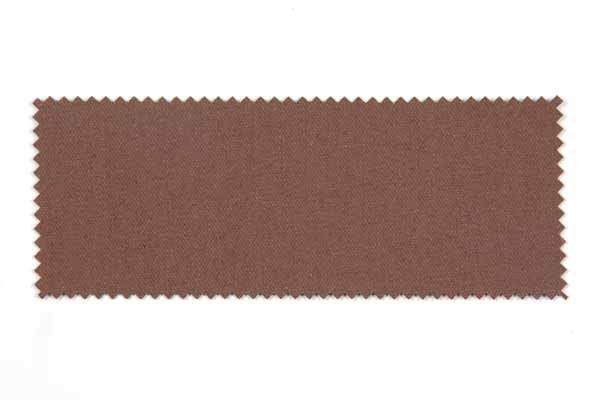

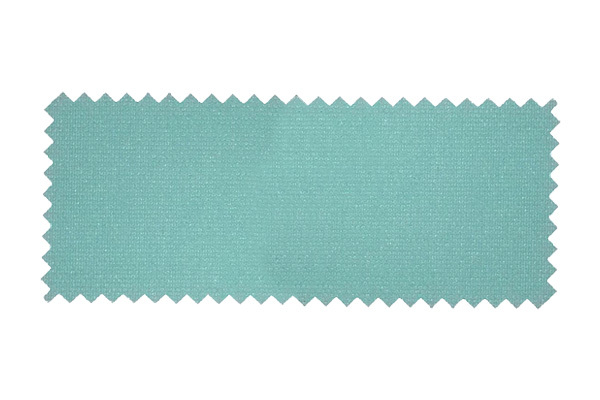

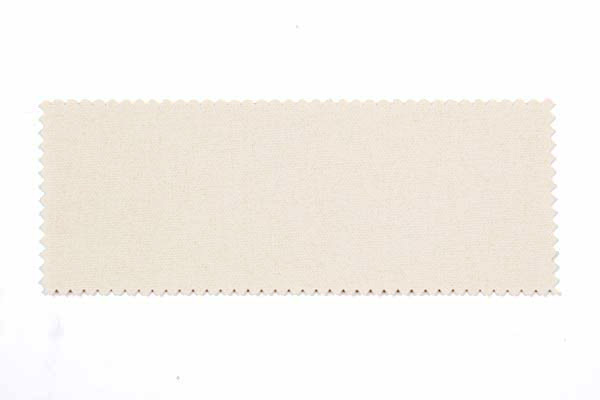

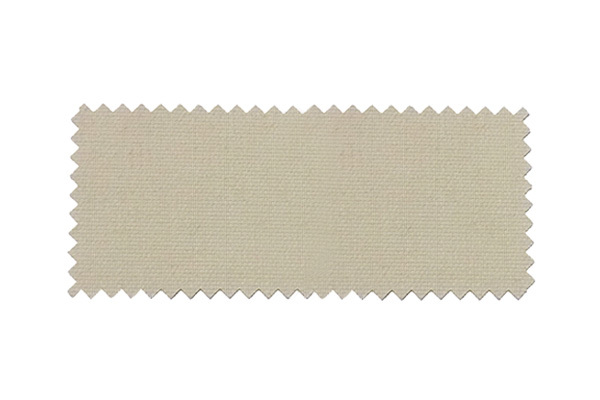

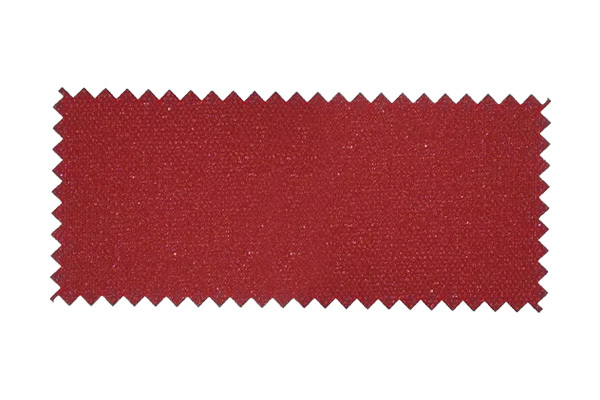

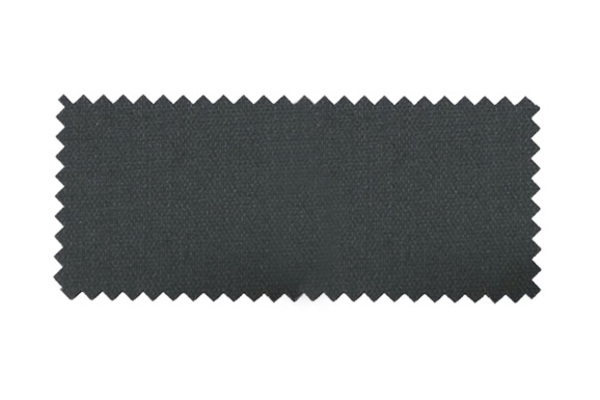

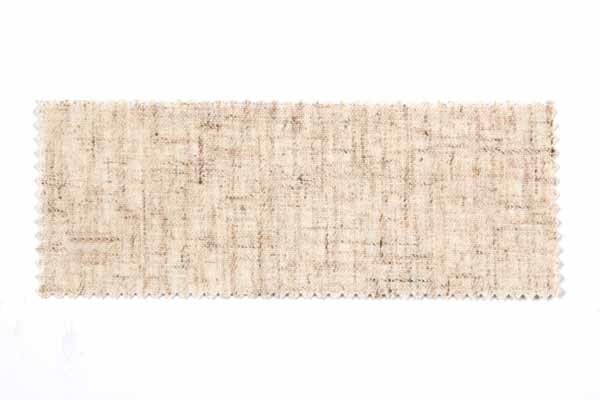

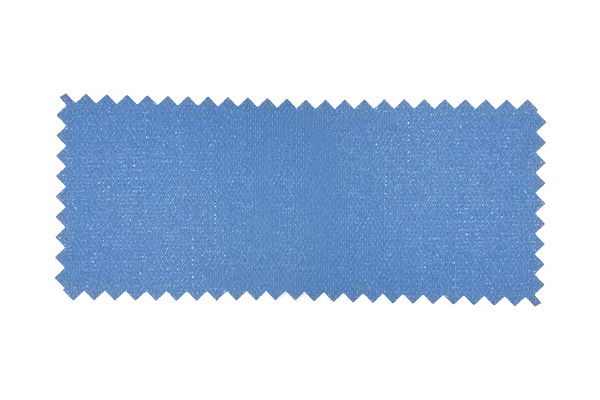

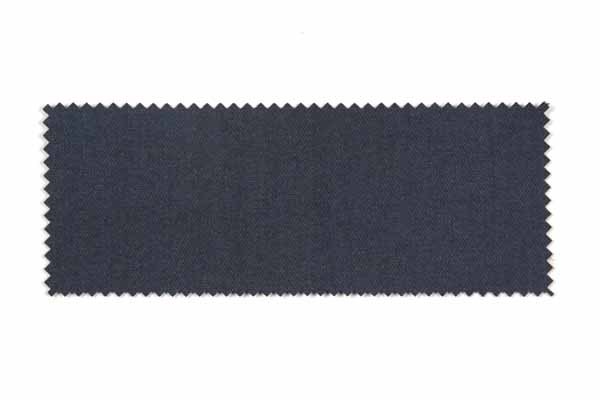

Available Color

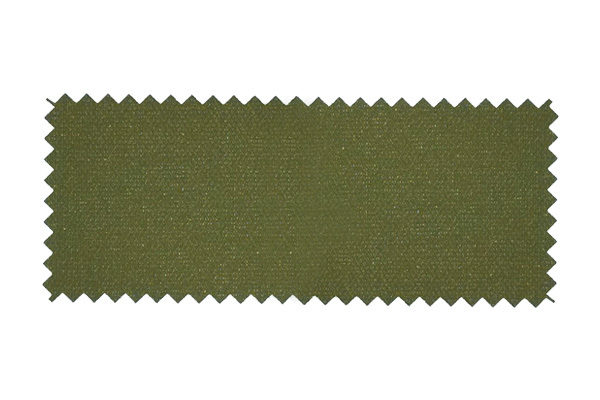

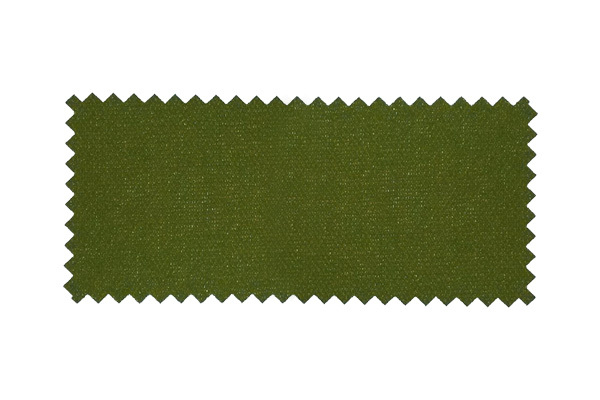

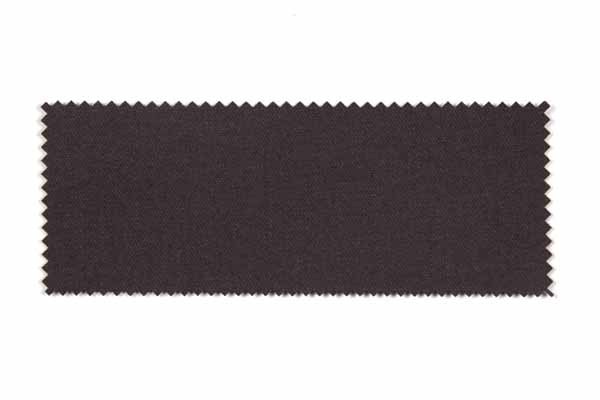

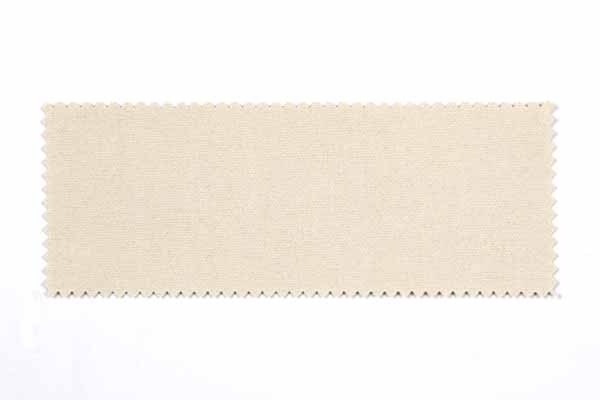

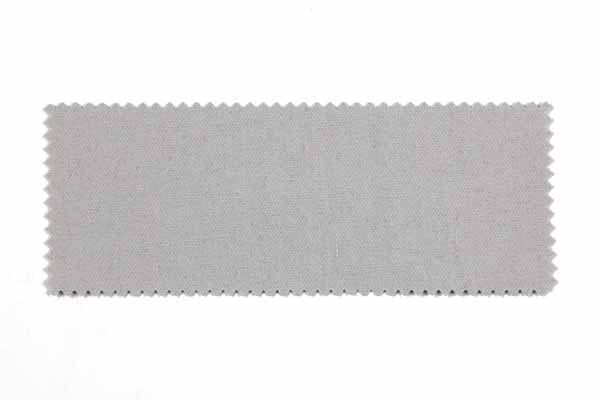

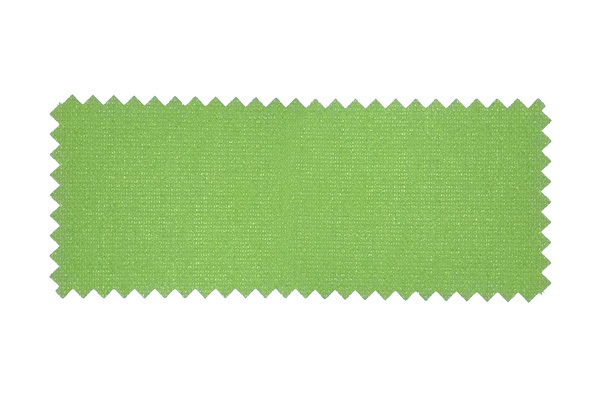

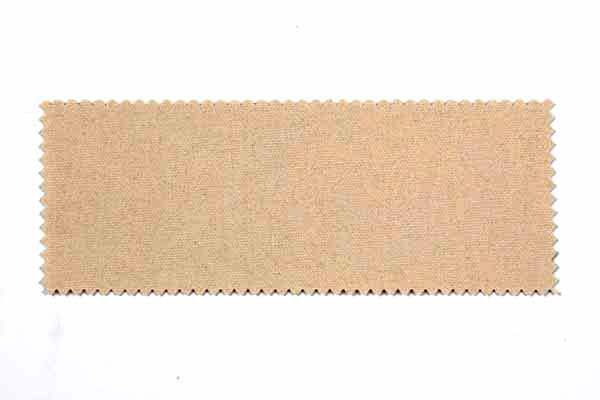

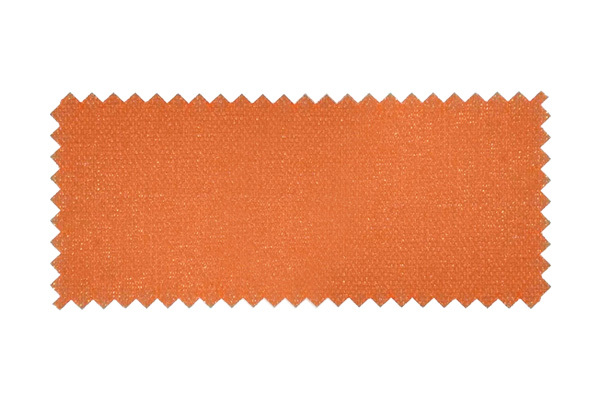

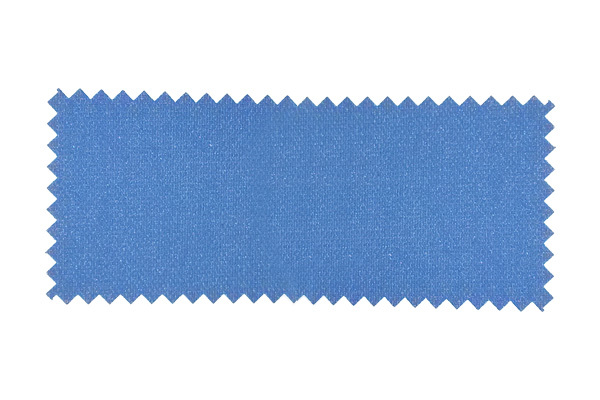

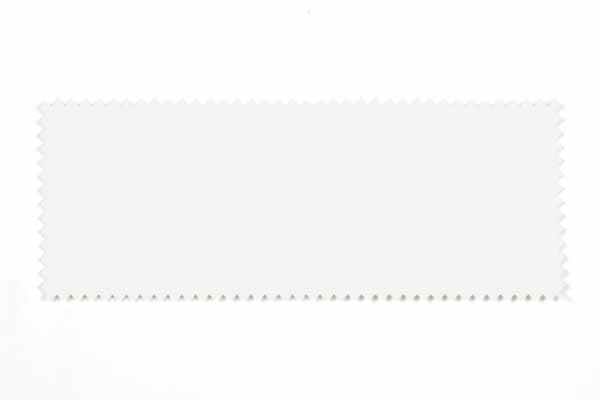

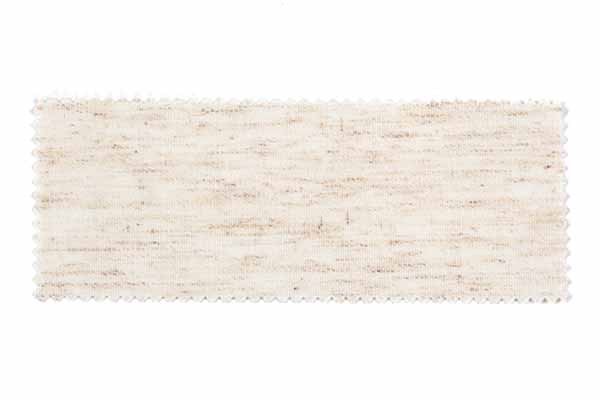

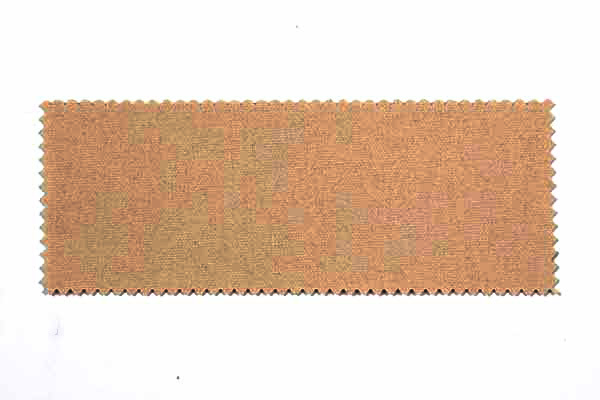

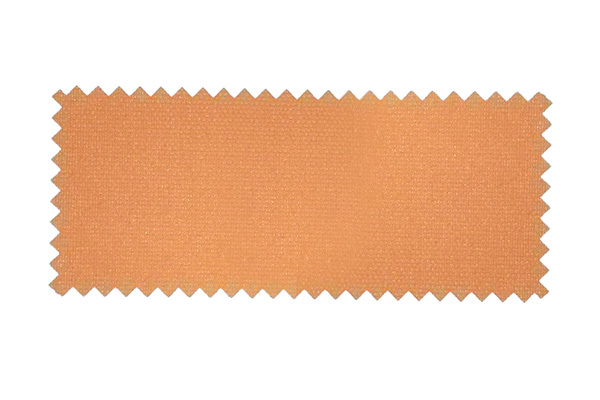

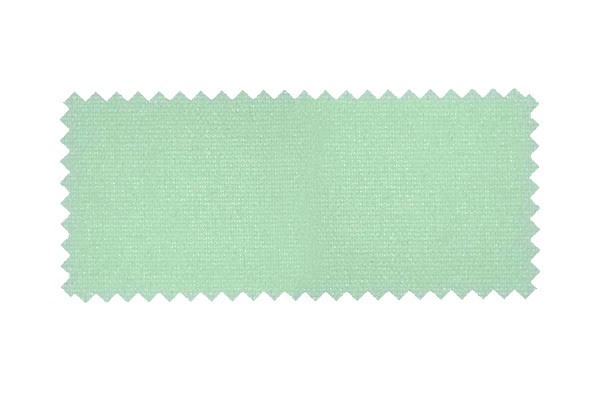

- 11DA0101 11DA0102 11DA0201 11DA0202 11DA0203 11DA0204 11DA0205 11DA0501 11DA0502 11DA0503 11DA0504 11DA1801 11DA1802 11DA1803 11DA1804 11DA1301 11DA1302 11DA1303 11DA1304 11DA1305 11DA1602 11DA1603 11DA1604 11DA1605 11DA1001 11DA1002 11DA1003 11DA1102 11MD-0101 11MD-1801 11DA-SF-0102 11DA-ZB3-0201 11DA-FM-0503 11DA-B1-0204
Product Description
Victoria is our best selling roller shades fabrics, the natural style is wildly appreciated by our clients, PVC free. It complies with Oeko-Tex 100 and GREENGUARD standard. Cold knife can be applied in processing. Victoria has 30 standard color in front side, and in back side, we can do many different coating upon the request of our clients.

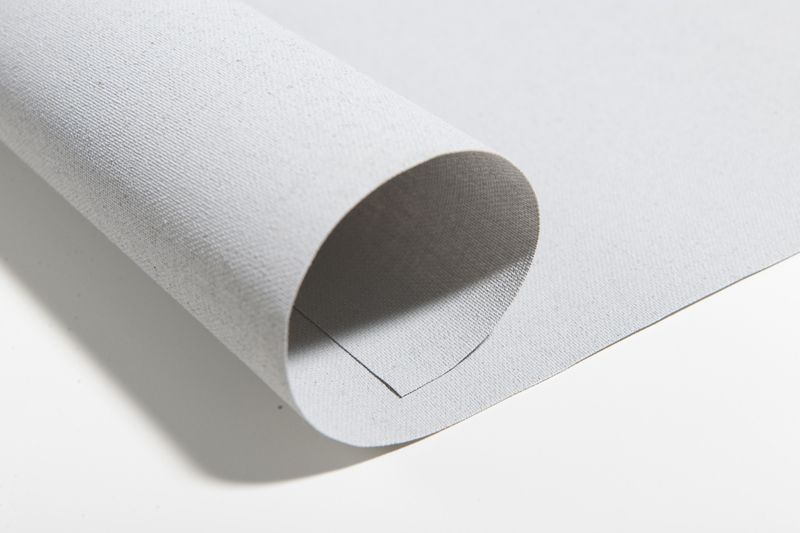

11DA Basic dim out shades fabrics, same color in both side.

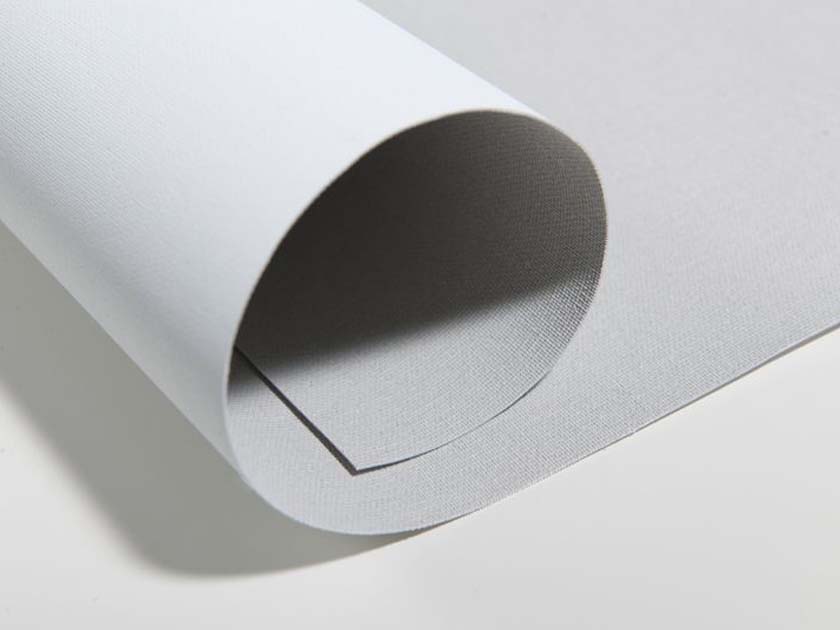

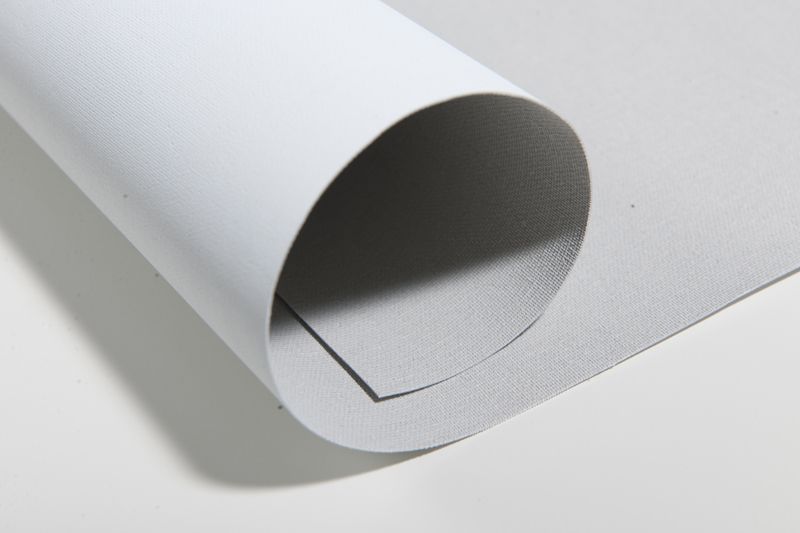

11DA-B3 Black out coated in back side ( white color), same as 11DA in the front side. it has very good performance in high temperature resistance.
Special Black out coated with same color, then pearlized coating as well in the back side, same as 11DA in the front side.
Standard Width is 2430 mm, color of back side can be customerized, we can add silver coating or other special coating upon the clients' need, like fire retardant coating, anti water coating, anti dust coating.
Features
11DA
Dim-out
|
11DA-B3
Black-out
|
11MD
Dim-out
|
11DA-B3
Black-out
|
Specifications
Series | 11DA | 11DA-SF | 11DA-FM | 11MD | 11DA-B3 | 11DA-B1 | 11DA-ZB3 | 11MD-B3 |
Technique | Same color both sides | Same color both sides | Same color both sides | Same color both sides | White back coated | Same color both sides | White back coated | White back coated |
Composition | PET | PET&LINEN | PET | PET&LINEN | ||||
Standard Width | 96"(2430mm) | |||||||
Mesh Weight | Abt. 180g/m2 | Abt. 200g/m2 | Abt. 340g/m2 | Abt. 440g/m2 | ||||
Thickness | Abt. 0.35 mm | Abt. 0.40 mm | Abt. 0.45 mm | Abt. 0.60 mm | ||||
PVC Content | Free | |||||||
Shading Rate | -- | 99% | ||||||
UV-Blocking | 100% | |||||||
Color Fastness | ≥5 Grade | ≥4 Grade | ≥5 Grade | ≥4 Grade | ||||
Fire-retardant and the Standard |
B1/DIN4102-1 B1/GB/T5455 |
Production Process
Weaving | |
Professional weaving quipment from ltaly. | |
Raw material inspection | |
Raw material inspection (100% inspection) | |
Dying | |
Color difference detection equipment | |
Yarn dyed inspection | |
Yarn dyed inspection (100% inspection) | |
Coating & processing inspection | |
Coating processing inspection (100% inpection) |
|
Final inspection | |
100% inpection | |
Packing | |
Applicable System & Accessories
Ball chain controlled spring roller system | Up-Down matching system | Ball chain controlled system with auto-lowering function |
Pull the ball chain to raise or drop the blinds in any target position; Gently pull the ball chain, the blinds goes in steady .Special design of the ball chain on stability compromises the mute and the utility of this product. | This type has a unique design on the head rail, easy to control and to be installed by DIY. | Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself. |
TDBUaccordion system | Arc-shaped motorized system | |
It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights. | Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method. |
Application
Packaging Information
Roll length: 30m + 5m per roll
MOQ: 300 m/color
Carton | L | W | H |
Packing Size | 96" | 8.26" | 8.26" |
Tube | L | Ø |
Packing Size | 96" | 8.26" |
