Amazon Series
N05/N05-B3/N05-Z-B3
Application:
Features:
Standard Width:
78"(2000mm)/ 98"(2500mm)
Products Certification:
Product Description

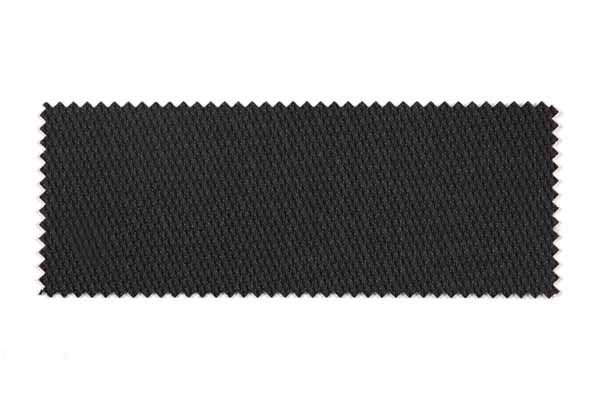

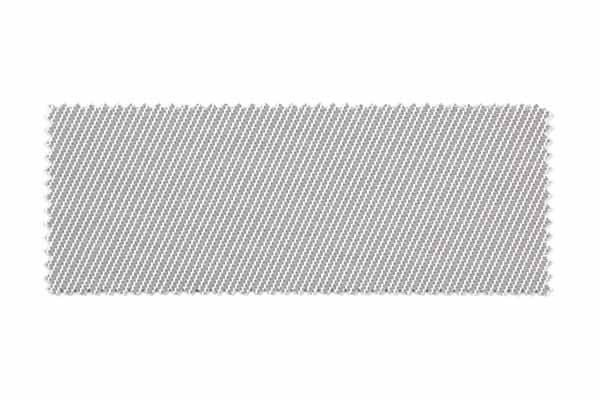

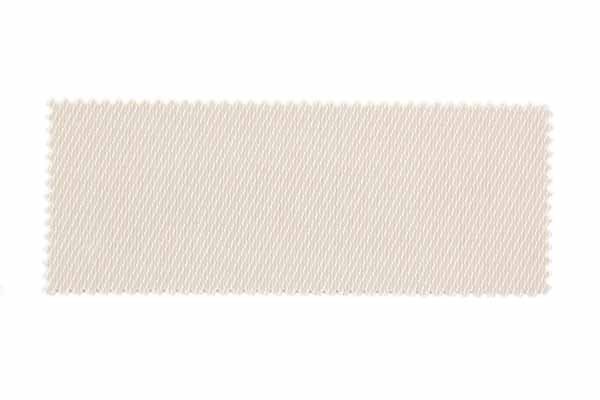

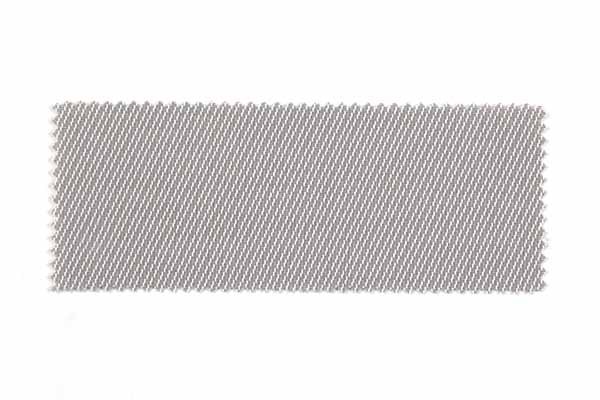

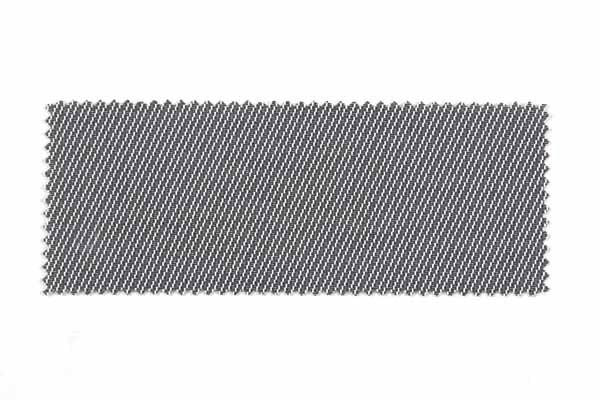

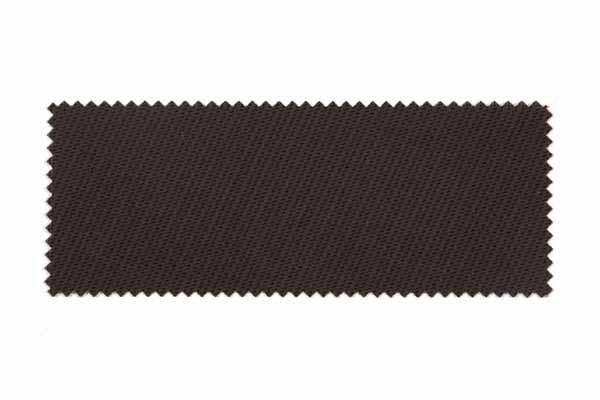

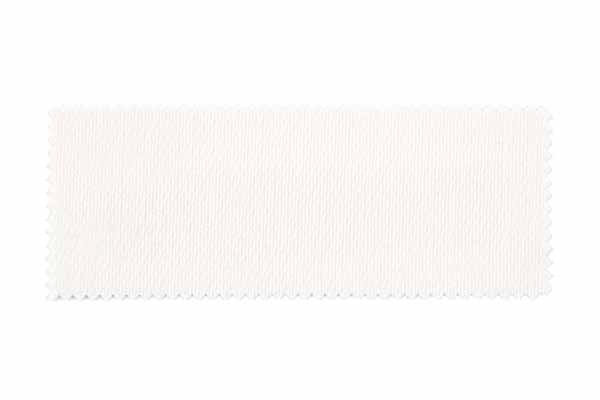

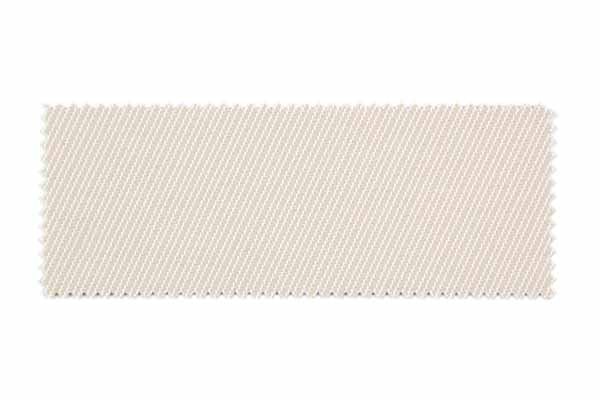

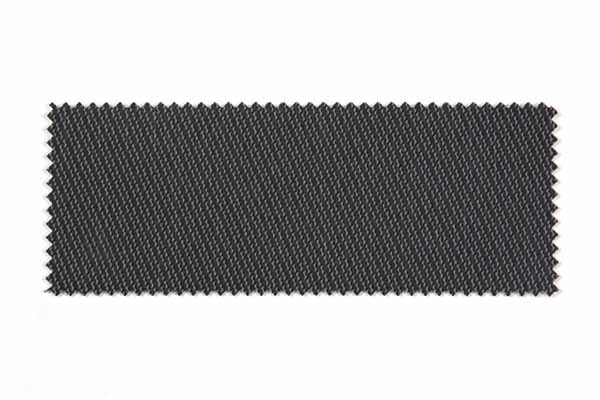

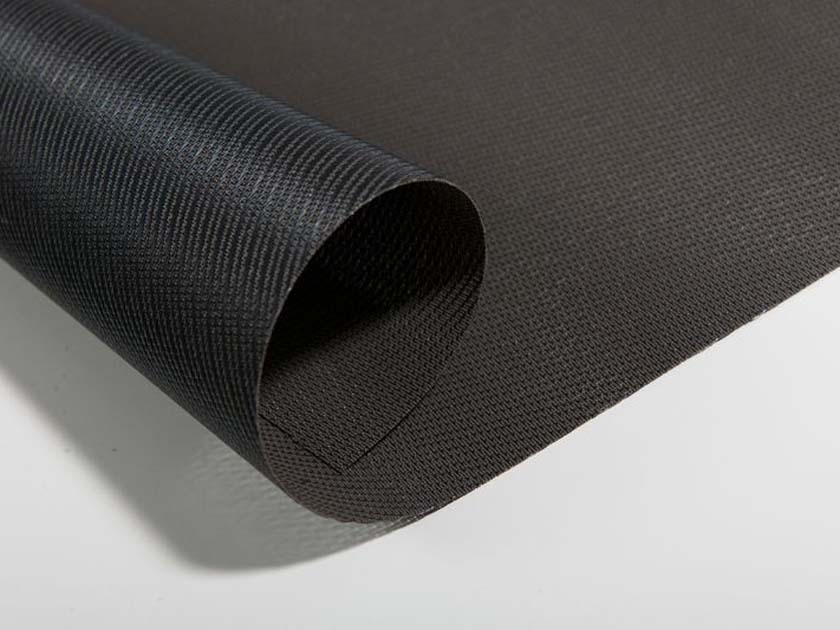

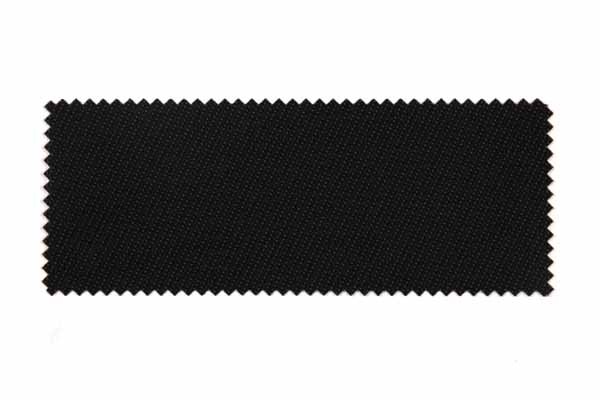

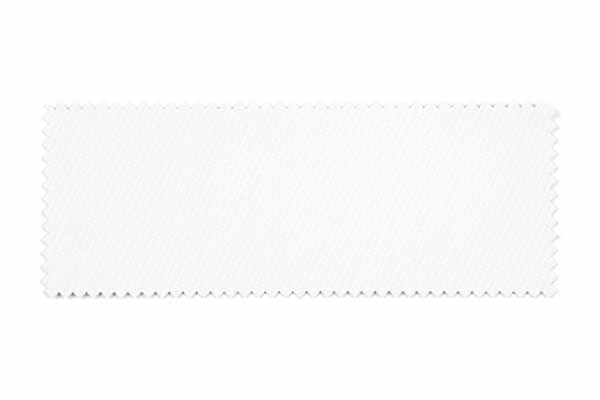

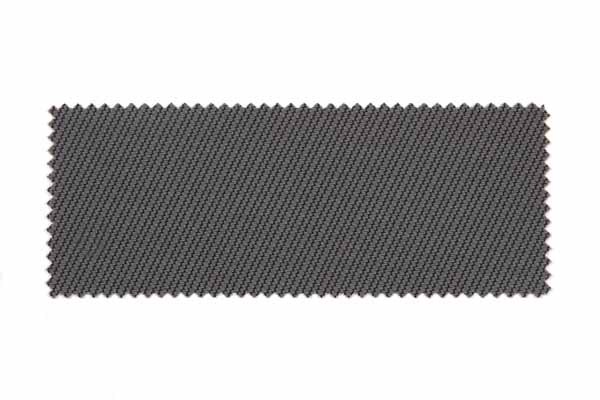

Amazon series use the fabrics made of polyester fiber with PVC coating, twill weaving technology and black out coating make Amazon the first developed fabrics in industry. Cold or hot knife can be applied in processing. It complies with Oeko-Tex 100 and GREENGUARD standard. it has 8 standard color.
N05: Sun screen fabrics, available for fabrics' welding.

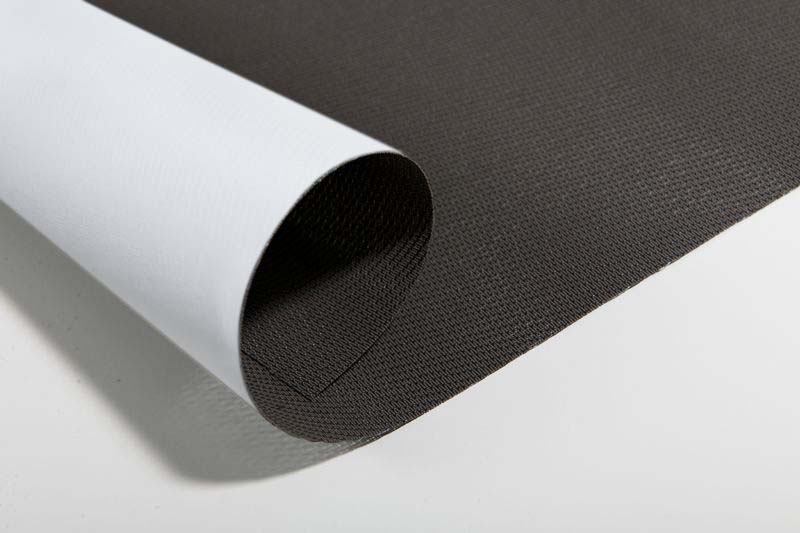

N05-B3: Black out shades fabrics, white color in back side, color of backside can be customerized, and clients can also ask for additional flame retardant coating.
Features
Dim-out
|
Black-out
|
Specifications
Series | N05 | N05-B3 | N05-Z-B3 |
Technique | White back coated | White back coated | |
Composition | PET | ||
Standard Width | 78"(2000mm)/ 98"(2500mm) | 72"(1830mm)/ 92"(2350mm) | |
Mesh Weight | Abt. 420g/m2 | Abt. 600g/m2 | |
Thickness | Abt. 0.55 mm | Abt. 0.75 mm | |
PVC Content | 70% | ||
Shading Rate | Abt. 95% | 100% | |
UV-Blocking | Abt. 95% | 100% | |
Color Fastness | 7-8 Grade | ||
Fire-retardant and the Standard | NFPA 701-2004 |
B1/DIN4102-1 B1/GB/T5455 |
Production Process
Weaving | |
![]() |
Professional weaving quipment from ltaly. |
![]() |
|
Raw material inspection | |
![]() |
Raw material inspection (100% inspection) |
![]() |
|
Dying | |
![]() |
|
![]() |
|
Color difference detection equipment | |
![]() |
|
![]() |
|
Yarn dyed inspection | |
![]() |
Yarn dyed inspection (100% inspection) |
![]() |
|
Coating & processing inspection | |
Coating processing inspection (100% inpection) |
|
![]() |
|
Final inspection | |
![]() |
100% inpection |
![]() |
|
Packing | |
![]() |
|
Applicable System & Accessories
Ball chain controlled spring roller system | Up-Down matching system | Ball chain controlled system with auto-lowering function |
![]() |
![]() |
![]() |
Pull the ball chain to raise or drop the blinds in any target position; Gently pull the ball chain, the blinds goes in steady .Special design of the ball chain on stability compromises the mute and the utility of this product. | This type has a unique design on the head rail, easy to control and to be installed by DIY. | Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself. |
TDBUaccordion system | Arc-shaped motorized system | |
![]() |
![]() |
|
It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights. | Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method. |
Application
Packaging Information
Roll length: 30m + 5m per roll
MOQ: 600m/special color; no MOQ requirement for regular color
Tube | L | Ø |
Packing Size |
85" / 104" for dim out 78.7" / 98.4" for blackout |
7.08" for dim out 8.86" for black out |
