Home-Products-Window Shade Fabrics- Roller Fabrics

Return

Olympus

O-P-081

Features:

Pleat Height:20mm/25mm/35mm

Products Certification:

Available Color

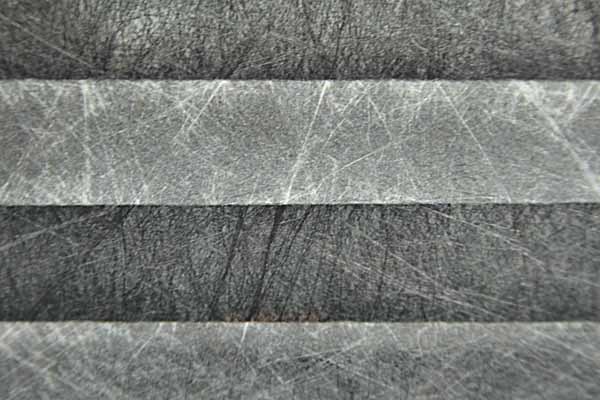

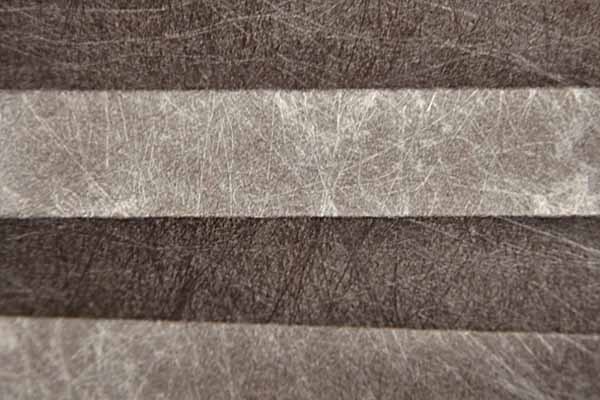

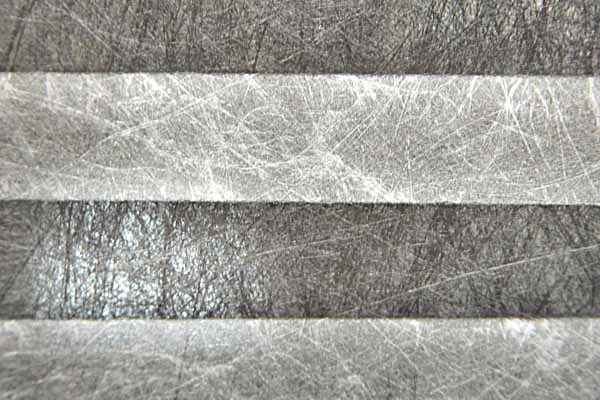

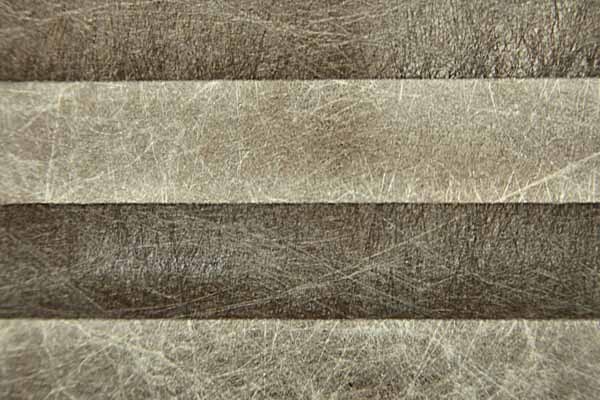

O-P-08101 O-P-08102 O-P-08103 O-P-08104

Product Description

Olympus series use special semi-transparent fabrics with mental yarn appearance, after our sepcial technology in coating and pleating, the fabrics of Olympus offer you a unique semi-transparent effect. It's complies with Oeko-Tex 100 and GREENGUARD standard.

O-P-081: Semi-transparent pleated shades fabrics, totally 4 standard color, can be used seperately or together with other fabrics in Day-night system. Cold knife can be applied in processing.

Standard pleated height is 20 mm, but 10 to 50 mm is also available, standard width is 2000 mm.

Features

O-P-081

Fransparent

Specifications

Series	O-P-081
Features	transparent
Composition	100% Polyester
Standard Width	1950mm
Mesh Weight	Abt. 50g/m²
Thickness	Abt. 0.2 mm
PVC Content	Free
Shading Rate	-
UV-Blocking	90%
Color Fastness	≥5 Grade
Fire-retardant and the Standard	-

Production Process

Weaving
	Professional weaving quipment from ltaly.

Raw material inspection
	Raw material inspection (100% inspection)

Dying


Color difference detection equipment
	Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated. High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement. This system is also available for day and night blinds.

Yarn dyed inspection
	Yarn dyed inspection (100% inspection)

Coating processing inspection
Coating processing inspection (100% inpection)

Pleating
	Pleating machines from Germany.

Finished product inspection
	Finished product inspection (100% inspection)

Packing

Applicable System & Accessories

Day-night system	Up-Down matching system	Ball chain controlled system with auto-lowering function

It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system	cordlock system	Arc-shaped motorized system

It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights.	Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated. High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement. This system is also available for day and night blinds.	Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.
