Loch Lomond Series

55/55-2S/55-B2/55-B3/55-Z-B3/55-B31/55-B32/55-SB3

Application:

Features:

Standard Width:

72"（1830mm）/ 96"（2438mm）

Products Certification:

Available Color

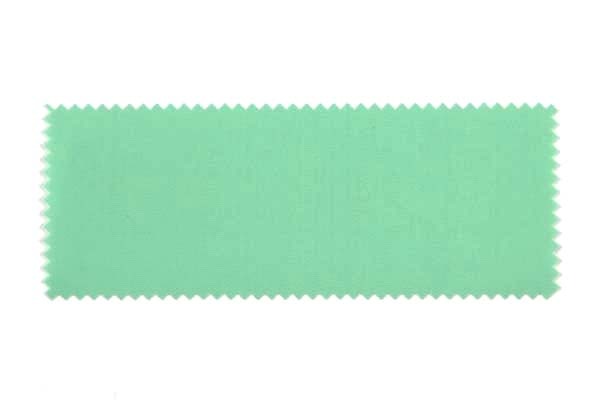

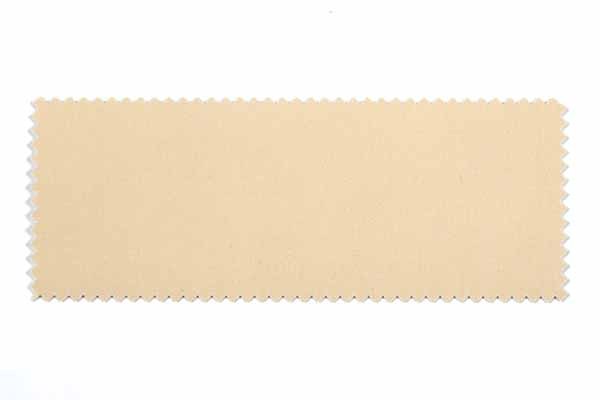

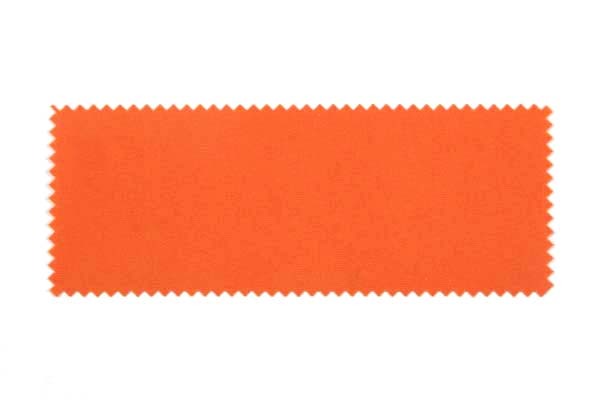

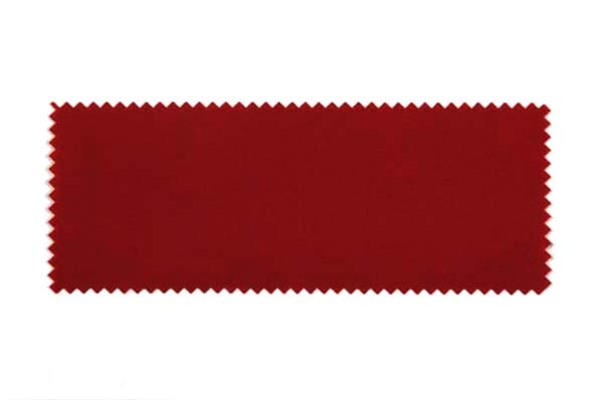

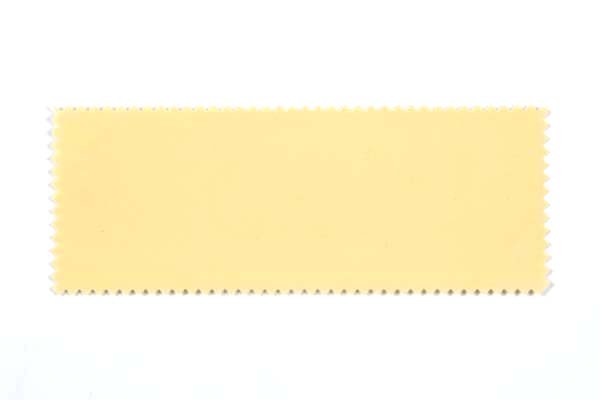

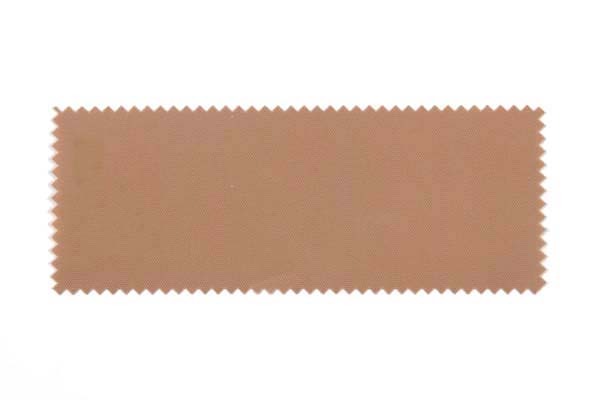

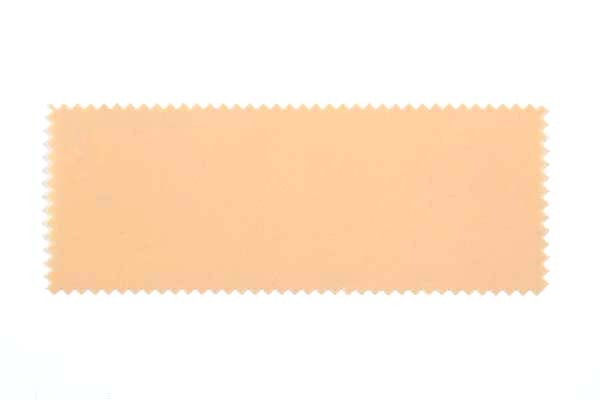

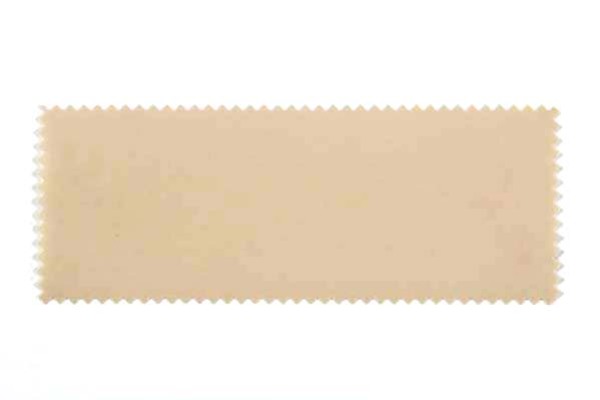

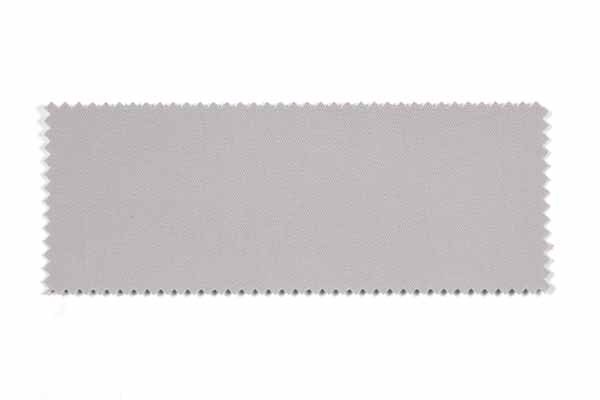

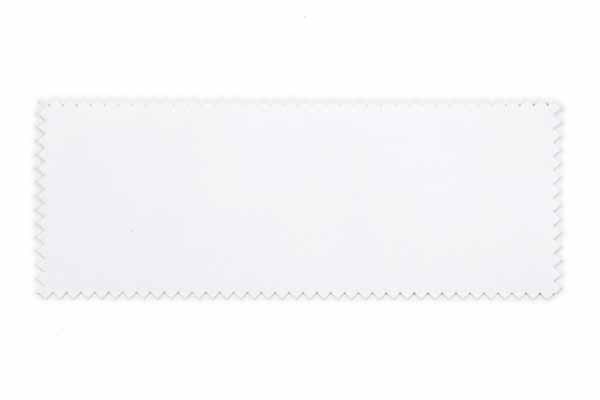

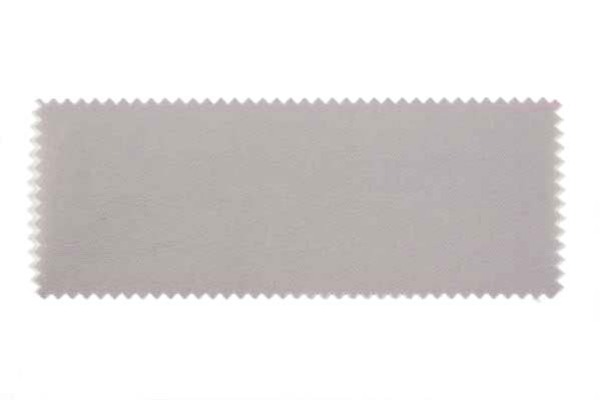

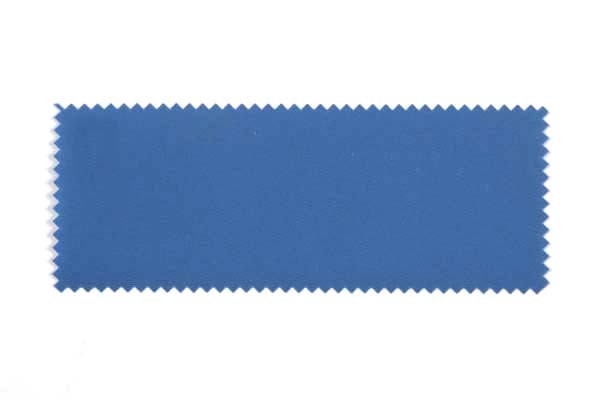

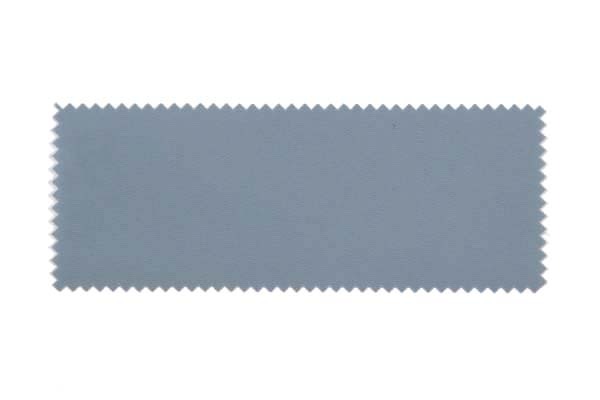

55001 55002 55005 55006 55007 55008 55010 55011 55013 55015 55016 55001-B3 55002-B3 55005-B3

Product Description

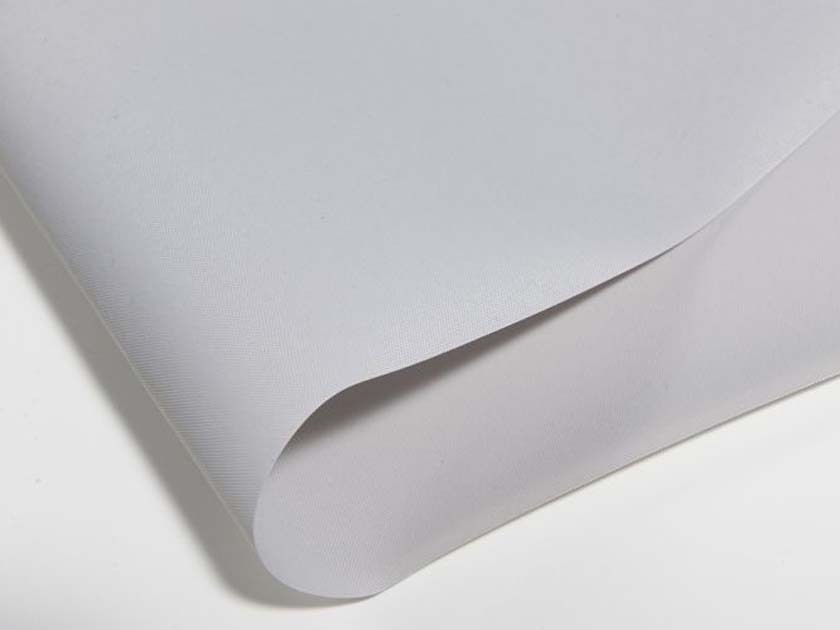

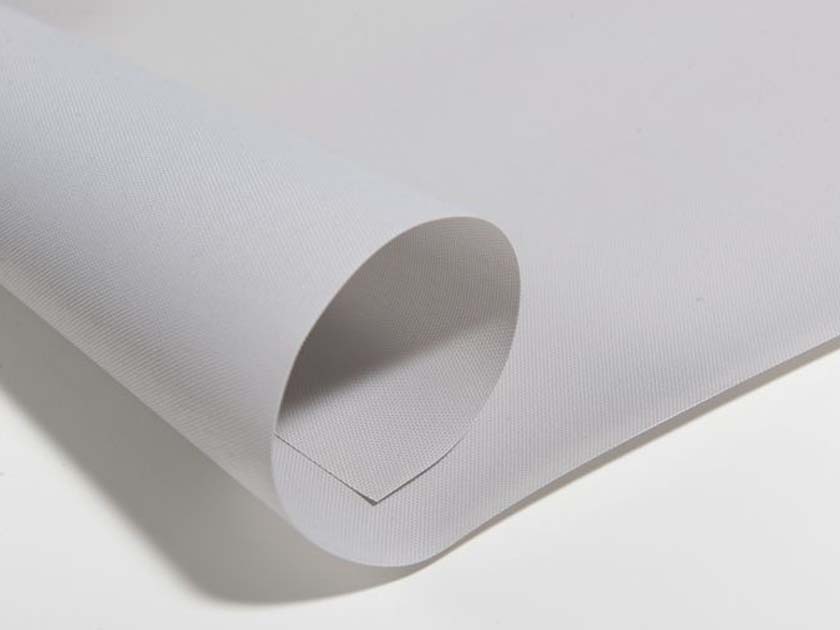

Loch Lomond series is another classical roller shades fabrics, plain weaving structure offer you a natural feeling, PVC free. It complies with Oeko-Tex 100 and GREENGUARD standard. Cold knife can be applied in processing. It has 18 standard color in front side, and in back side, we can do many different coating upon the request of our clients.

55: Basic dim out shades fabrics, same color in both side.

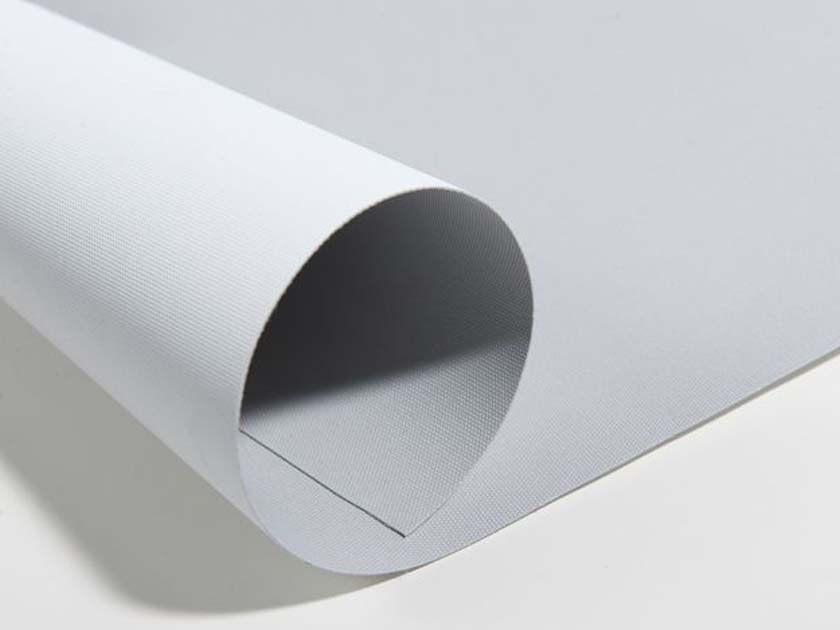

55-B3: Black out coated in back side ( white color), same as 66W in the front side. it has very good performance in high temperature resistance.

Standard Width is 2430 mm, color of back side can be customerized, we can add silver coating or other special coating upon the clients' need.

Features

Dim-out

55-B2

Black-out

55-B3

Black-out

Specifications

Series	55	55-2S	55-B2	55-B3	55-B31	55-B32	55-SB3	55-Z-B3
Technique	Same color both side	Both sides pearlised	Alu back coated	White back coated	White back coated	Alu back coated	Front pearlised White back coated	White back coated
Composition	PET
Standard Width	72"（1830mm）/ 96"（2438mm）
Mesh Weight	Abt. 200g/m²	Abt. 220g/m²		Abt. 380g/m²
Thickness	Abt. 0.30 mm	Abt. 0.35 mm		Abt. 0.55 mm
PVC Content	Free
Shading Rate	--	--		100%
UV-Blocking	100%
Color Fastness	≥4-5 Grade
Fire-retardant and the Standard	Upon client's request							B1/DIN4102-1 B1/GB/T5455

Production Process

Weaving
	Professional weaving quipment from ltaly.

Raw material inspection
	Raw material inspection (100% inspection)

Dying


Color difference detection equipment


Yarn dyed inspection
	Yarn dyed inspection (100% inspection)

Coating & processing inspection
Coating processing inspection (100% inpection)

Final inspection
	100% inpection

Packing

Applicable System & Accessories

Ball chain controlled spring roller system	Up-Down matching system	Ball chain controlled system with auto-lowering function

Pull the ball chain to raise or drop the blinds in any target position; Gently pull the ball chain, the blinds goes in steady .Special design of the ball chain on stability compromises the mute and the utility of this product.	This type has a unique design on the head rail, easy to control and to be installed by DIY.	Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system	Arc-shaped motorized system

It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights.	Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.
