Yenisei Series
100-2S/100-B2
Application:
Features:
Standard Width:
72"（1830mm）/ 96"（2438mm）
Products Certification:
Product Description
Yenisei is well recognized by its' unique silver coating outlook, PVC free. It complies with Oeko-Tex 100 and GREENGUARD standard. Cold knife can be applied in processing. It has 8 standard color in front side, and in back side, it's silver coated.
100-B2: Dim out shades fabrics, silver coated in back side. Good choice for commercial project because it has very good performance in long drop shades.
Standard Width is 2430 mm.
Features
|
Both sides pearlised |
Silver coating |
.jpg)

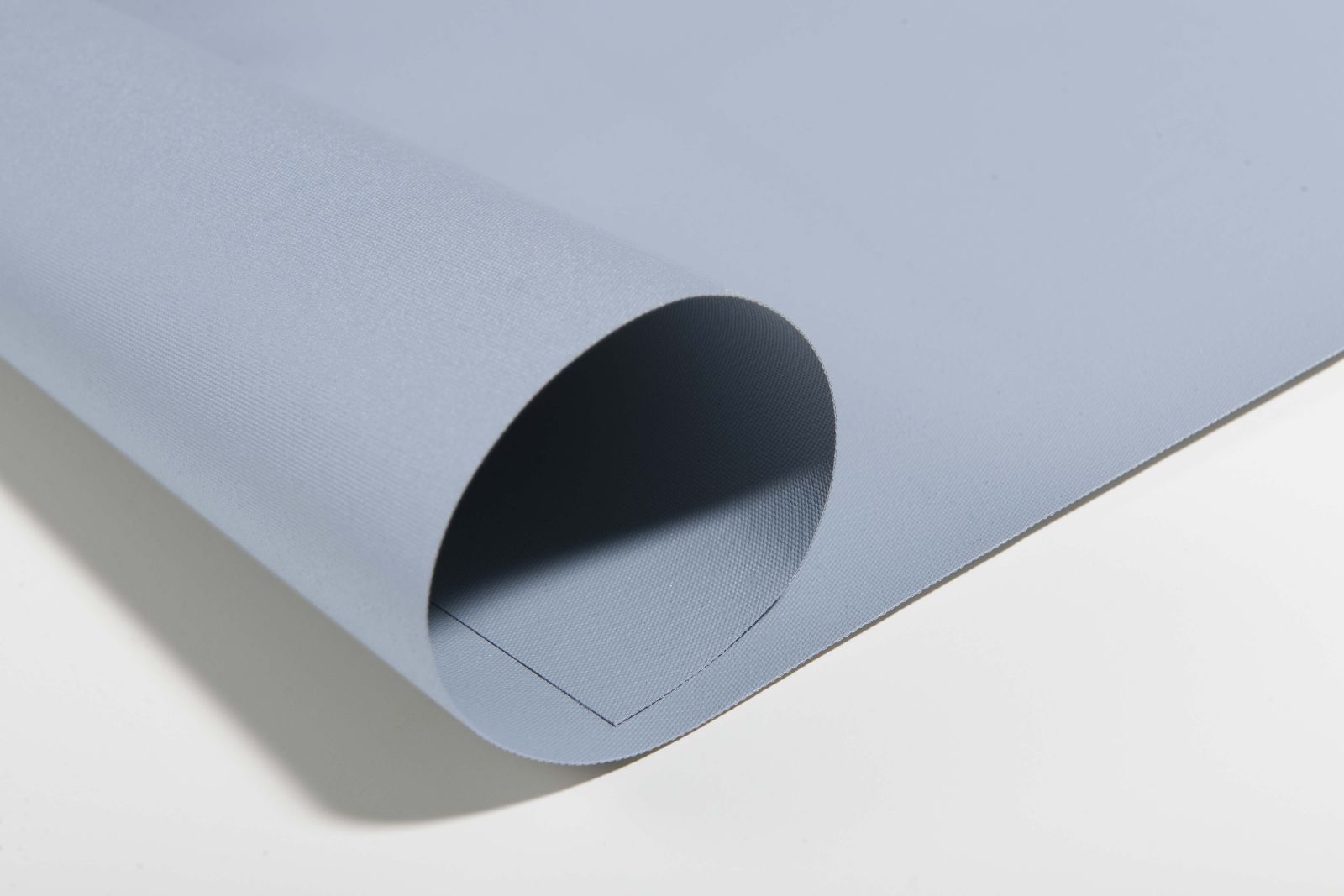

100-2S
.jpg)

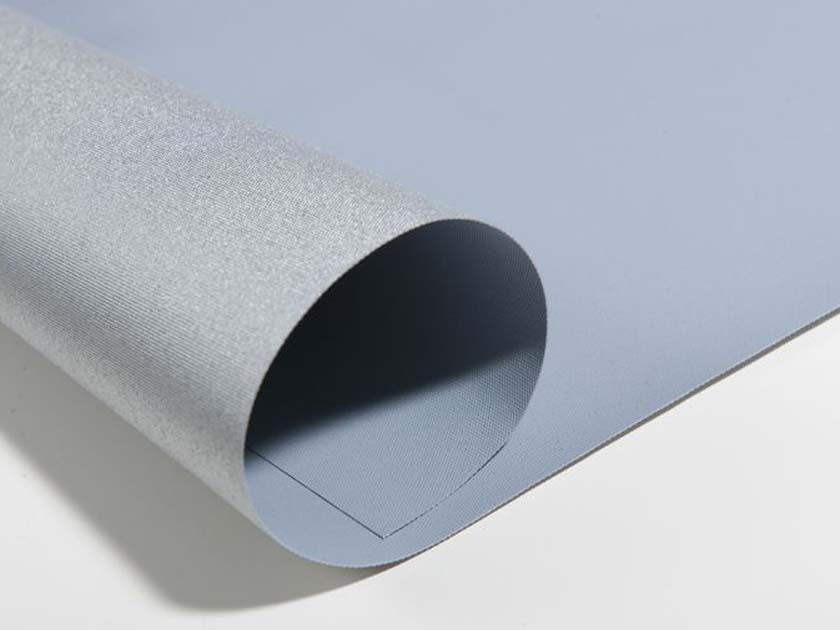

100-B2
Specifications
| Series | 100-2S | 100-B2 |
| Features | Both sides pearlised | Silver coating |
| Composition | T-PET | |
| Standard Width | 72"（1830mm）/ 96"（2438mm） | |
| Mesh Weight | Abt. 220g/m2 | |
| Thickness | Abt. 0.35 mm | |
| PVC Content | Free | |
| Shading Rate | -- | 100% |
| UV-Blocking | 100% | |
| Color Fastness | ≥4-5 Grade | |
| Fire-retardant and the Standard | Upon client's request | |
Production Process
| Weaving | |
 |
Professional weaving quipment from ltaly. |
 |
|
| Raw material inspection | |
 |
Raw material inspection (100% inspection) |
|
|
|
| Dying | |
 |
|
|
|
|
| Color difference detection equipment | |
.jpg) |
|
|
|
|
| Yarn dyed inspection | |
 |
Yarn dyed inspection (100% inspection) |
|
|
|
| Coating & processing inspection | |
|
Coating processing inspection (100% inpection) |
|
|
|
|
| Final inspection | |
 |
100% inpection |
|
|
|
| Packing | |
 |
|
Applicable System & Accessories
| Ball chain controlled spring roller system | Up-Down matching system | Ball chain controlled system with auto-lowering function |
 |
 |
 |
| Pull the ball chain to raise or drop the blinds in any target position; Gently pull the ball chain, the blinds goes in steady .Special design of the ball chain on stability compromises the mute and the utility of this product. | This type has a unique design on the head rail, easy to control and to be installed by DIY. | Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself. |
| TDBUaccordion system | Arc-shaped motorized system | |
 |
 |
|
| It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights. | Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method. |
Application
.jpg)
.jpg)
Packaging Information
Roll length: 30m + 5m per roll
MOQ: 300 m/color
| Carton | L | W | H |
| Packing Size | 78" / 90" / 102" | 5.51" | 5.51" |
| Tube | L | Ø |
| Packing Size | 78" / 90" / 102" | 7.08" |
