Home-Products-Window Shade Fabrics- Roller Fabrics

Return

Rhine Series

C01/C01-B3/C01-Z-B3

Application:

Features:

Standard Width:

78"（2000mm）/ 98"（2500mm）

Products Certification:

Available Color

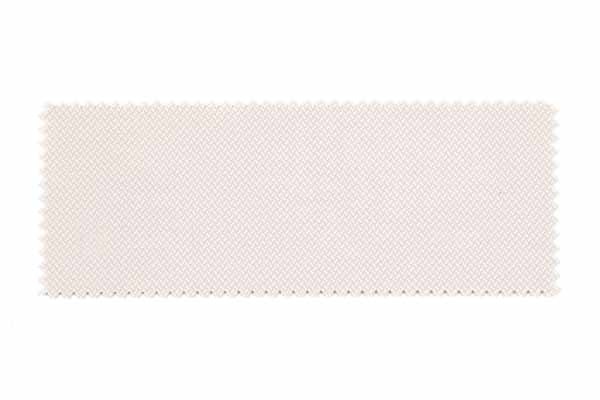

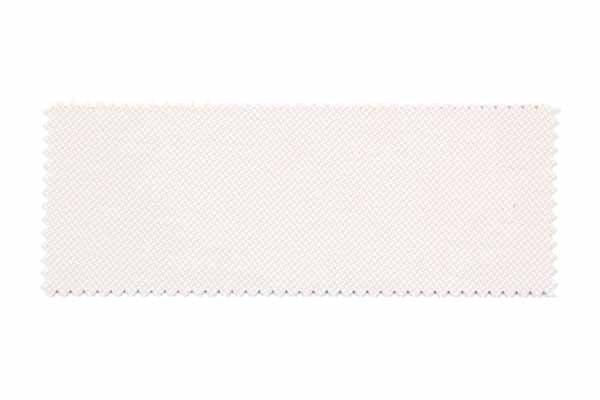

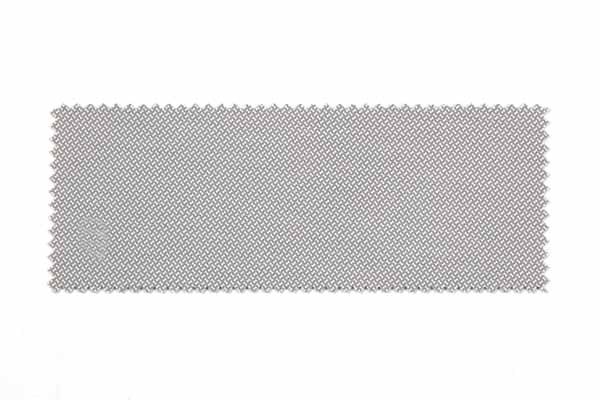

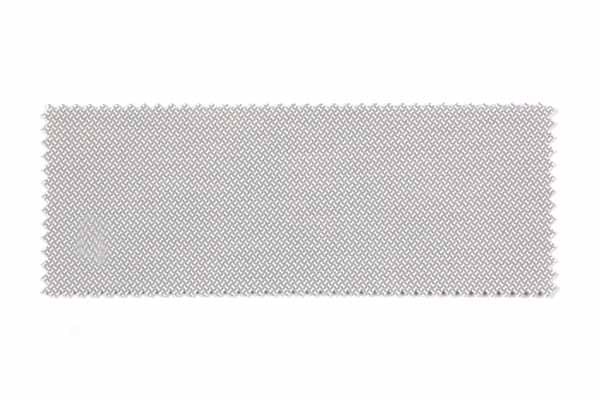

C0104 C0107 C0104-B3 C0107-B3

Product Description

Rhine series use the fabrics made of polyester fiber with PVC coating, satin weaving technology and black out coating make Rhine the first developed fabrics in industry. Cold or hot knife can be applied in processing. It complies with Oeko-Tex 100 and GREENGUARD standard. it has 2 standard color.

C01: Sun screen fabrics, available for fabrics' welding.

C01-B3: Black out shades fabrics, white color in back side, color of backside can be customerized, and clients can also ask for additional flame retardant coating.

Features

C01

Dim-out

C01-B3

Black-out

Specifications

Series	C01	C01-B3	C01-Z-B3
Technique		White back coated	White back coated
Composition	PET
Standard Width	78"（2000mm）/ 98"（2500mm）	72"（1830mm）/ 92"（2350mm）
Mesh Weight	Abt. 420g/m²	Abt. 600g/m²
Thickness	Abt. 0.55 mm	Abt. 0.75 mm
PVC Content	70%
Shading Rate	Abt. 95%	100%
UV-Blocking	Abt. 95%	100%
Color Fastness	8 Grade
Fire-retardant and the Standard	NFPA 701-2004		B1/DIN4102-1 B1/GB/T5455

Production Process

Weaving
	Professional weaving quipment from ltaly.

Raw material inspection
	Raw material inspection (100% inspection)

Dying


Color difference detection equipment


Yarn dyed inspection
	Yarn dyed inspection (100% inspection)

Coating & processing inspection
Coating processing inspection (100% inpection)

Final inspection
	100% inpection

Packing

Applicable System & Accessories

Ball chain controlled spring roller system	Up-Down matching system	Ball chain controlled system with auto-lowering function

Pull the ball chain to raise or drop the blinds in any target position; Gently pull the ball chain, the blinds goes in steady .Special design of the ball chain on stability compromises the mute and the utility of this product.	This type has a unique design on the head rail, easy to control and to be installed by DIY.	Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system	Arc-shaped motorized system

It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights.	Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.
