Himalayas

O-P-550-B1/O-P-550-B2/O-P-550-B0/O-P-550-BOS

Features:

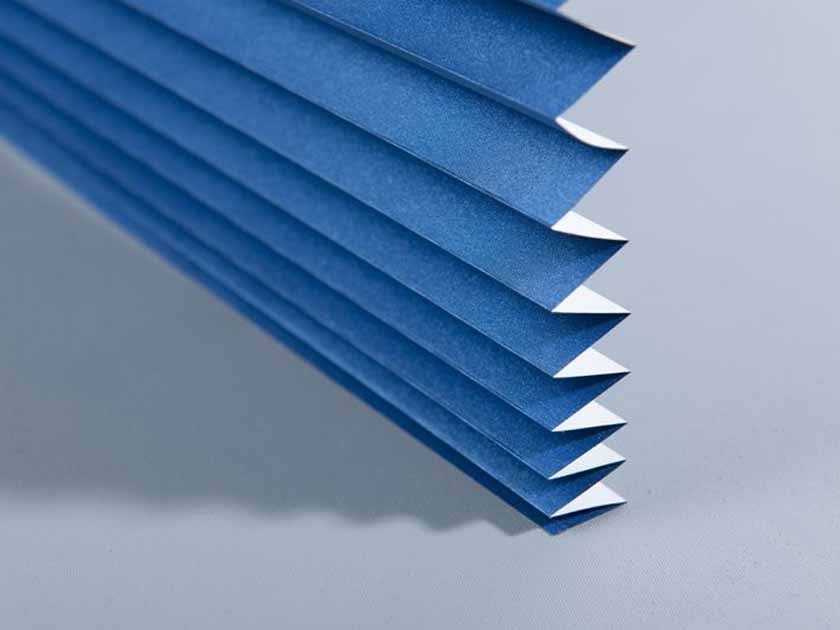

Pleat Height:20mm/25mm/35mm

Products Certification:

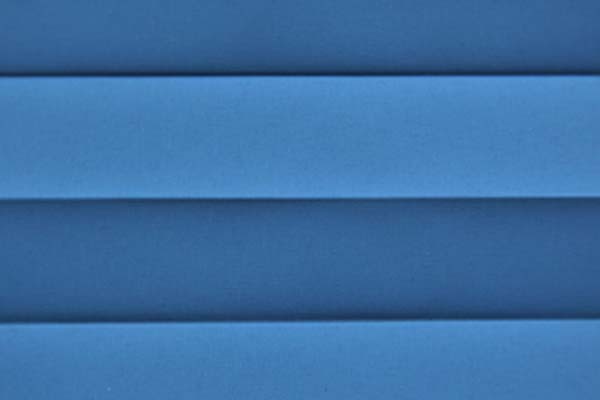

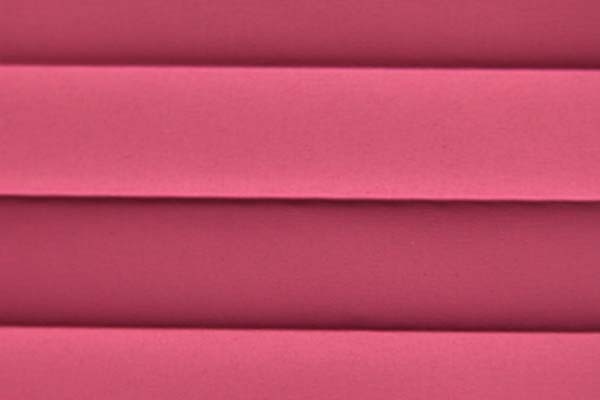

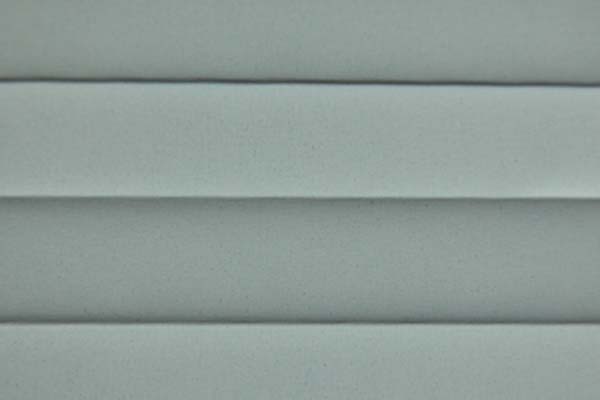

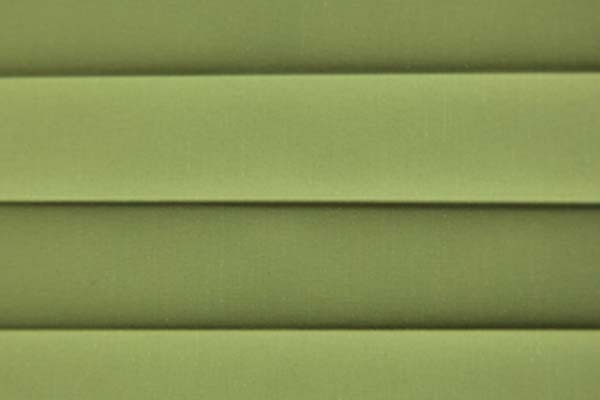

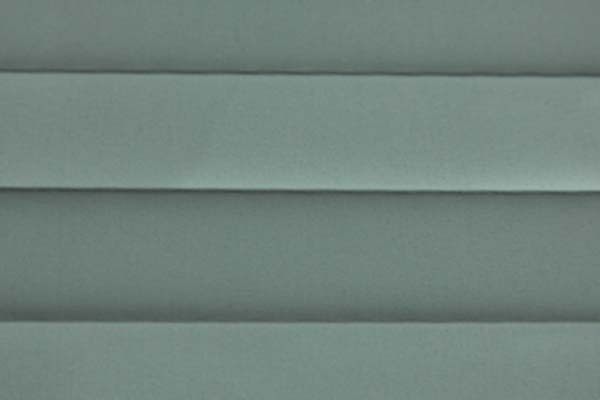

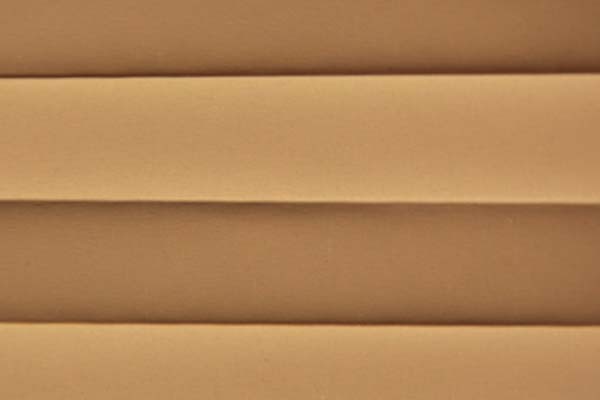

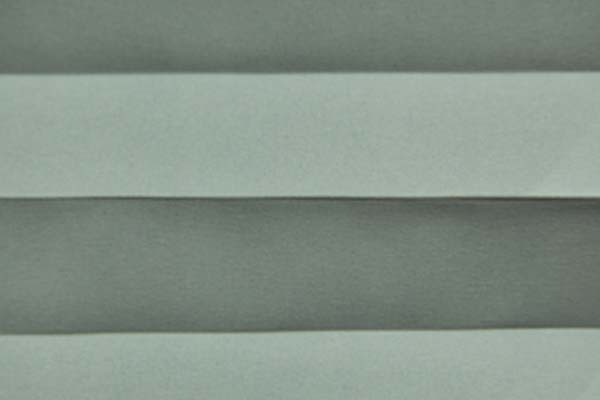

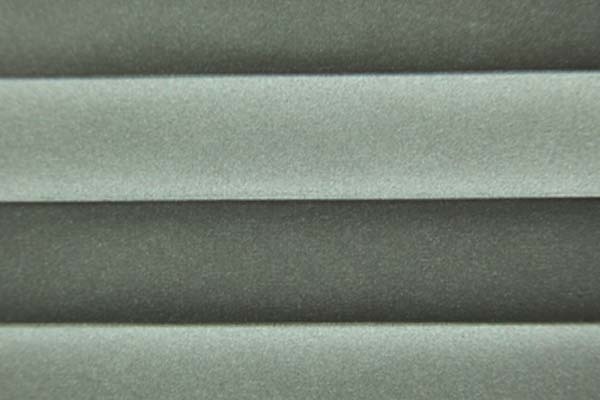

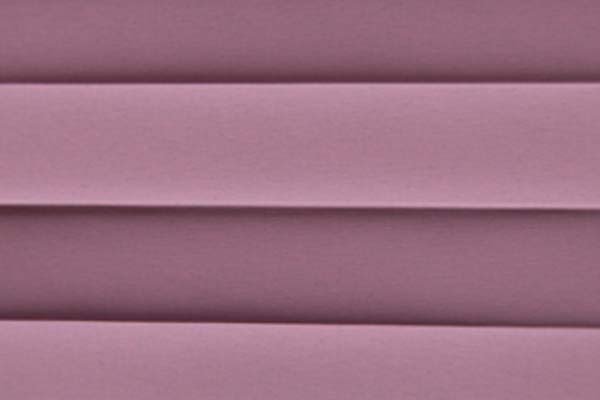

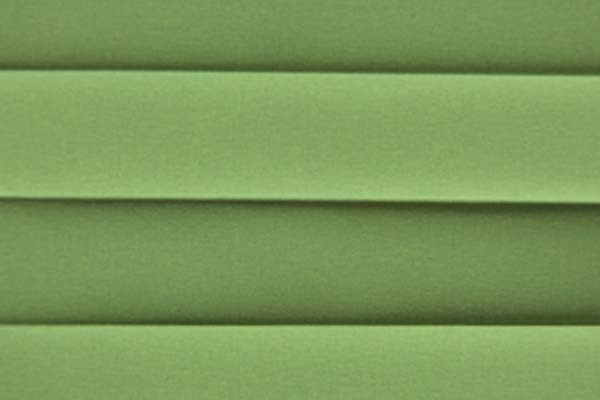

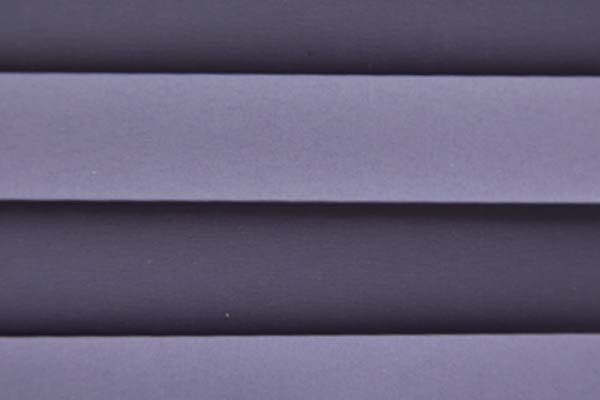

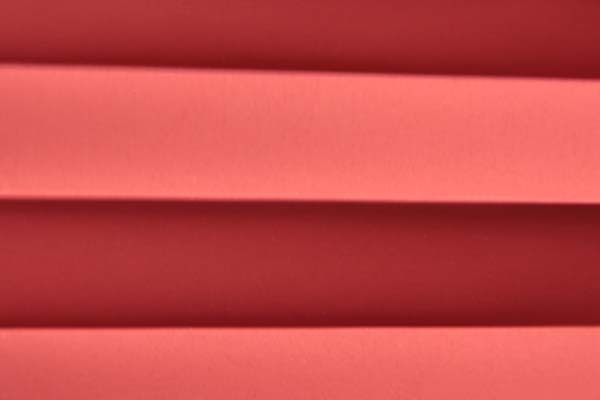

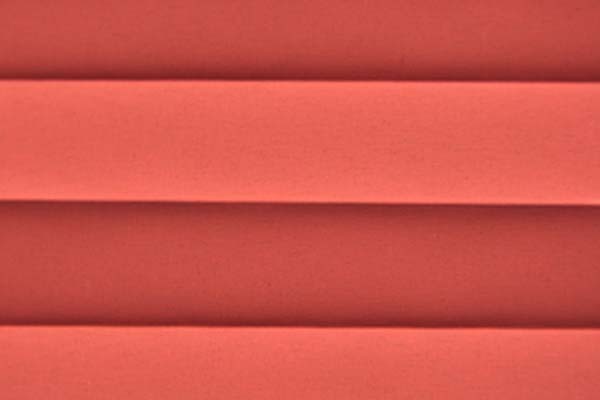

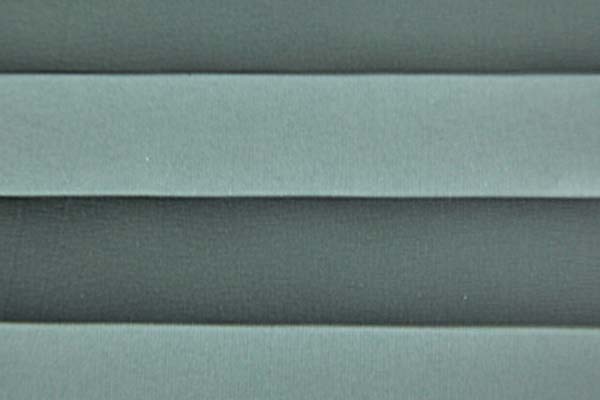

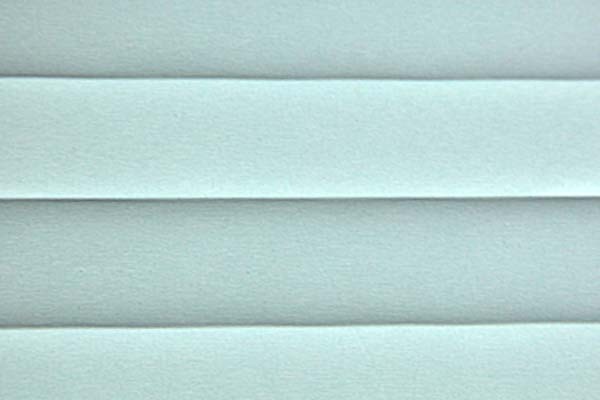

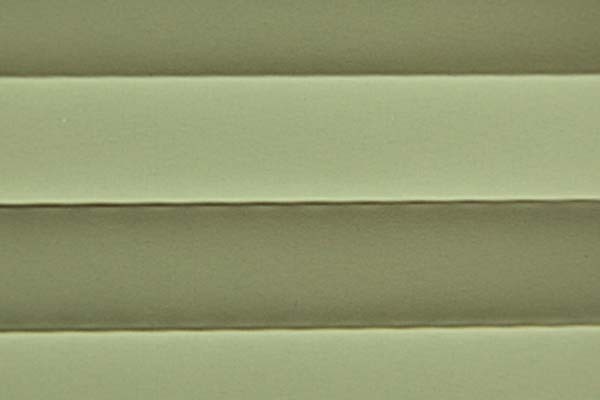

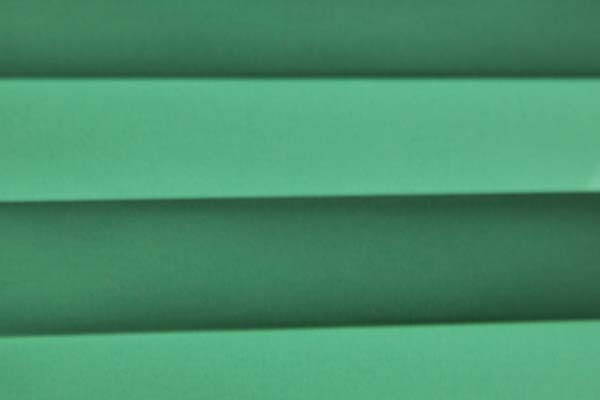

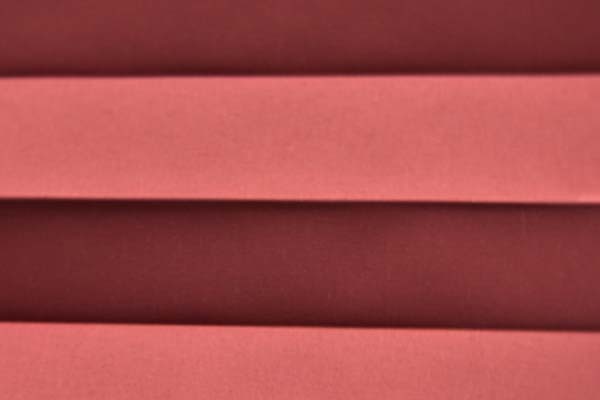

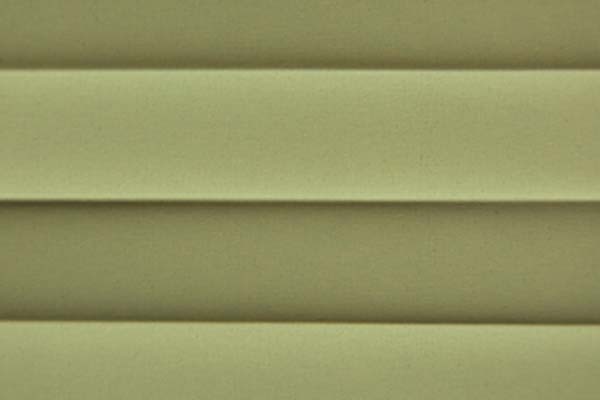

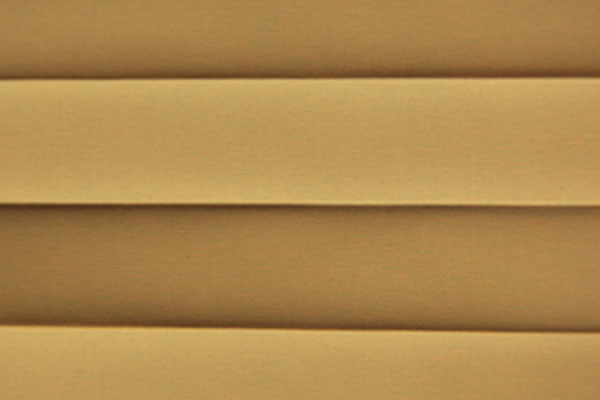

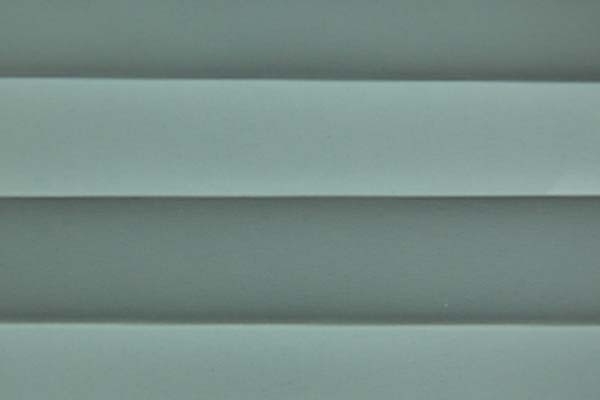

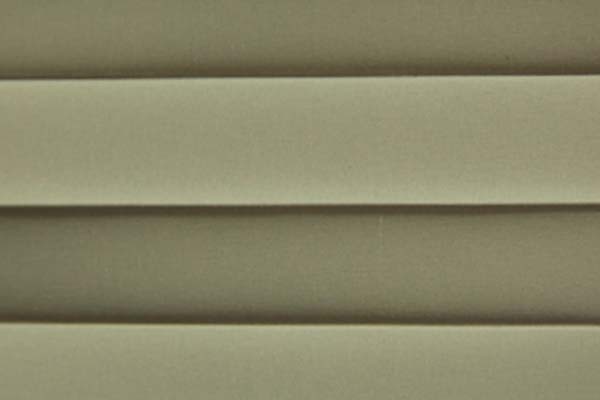

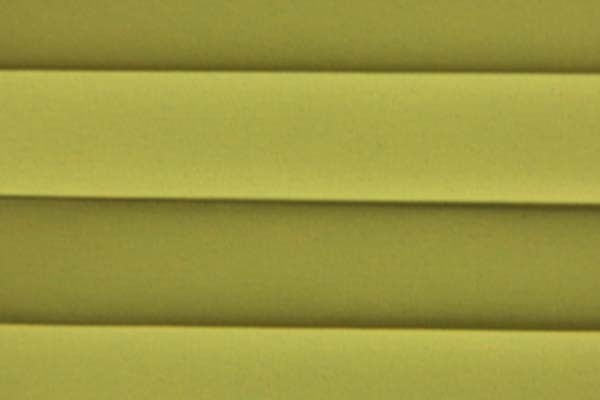

Available Color

O-P-55001-B0 O-P-55002-B0 O-P-55003-B0 O-P-55005-B0 O-P-55006-B0 O-P-55007-B0 O-P-55008-B0 O-P-55010-B0 O-P-55011-B0 O-P-55012-B0 O-P-55016-B0 O-P-55017-B0 O-P-55018-B0 O-P-55023-B0 O-P-55026-B0 O-P-55027-B0 O-P-55028-B0 O-P-55032-B0 O-P-55001-B2 O-P-55002-B2 O-P-55004-B2 O-P-55005-B2 O-P-55011-B2 O-P-55011-B2 O-P-55016-B2 O-P-55018-B2

Product Description

Himalayas series use standard plain weave fabrics, after our environmental friendly coating and pleating, the fabrics of Himalayas series have very good performance in color and appearance. Color is vivid and stable, flatness of pleating is appreciated by our clients. Pearlized coated with Merck's Pearlize powder from Germany. It's complies with Oeko-Tex 100 and GREENGUARD standard.

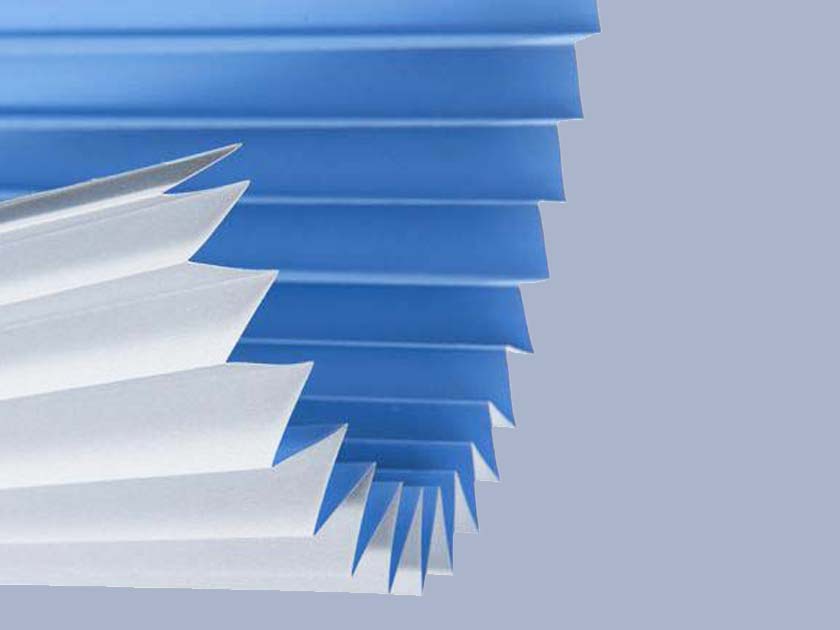

O-P-550-B0: Black out pleated shades fabrics, white color in back side, good in pleating shape's recovery. Cold knife can be applied in processing. Totally 18 standard color ( color of back side can be customized).

O-P-550-B0S: Black out pleated shades fabrics, white color in back side and pearlized coated in front side. Totally 18 standard color ( color of back side can be customized).

O-P-550-B1: Black out pleated shades fabrics, same color in both side. Totally 18 standard color.

O-P-550-B2: Black out pleated shades fabrics with fire-retardant coating, silver coated in back side. Totally 8 standard color.

Customized color available, standard pleated height is 20 mm, but 20 to 50 mm is also available, maximum width is 3000 mm.

Features

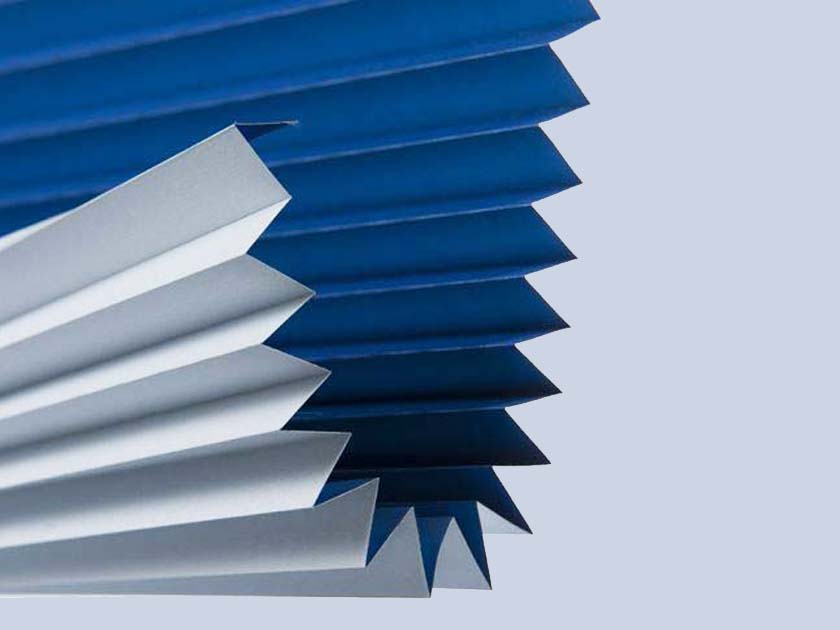

O-P-550-BOS

Front pearlised white

back coated

O-P-550-BO

White back coated

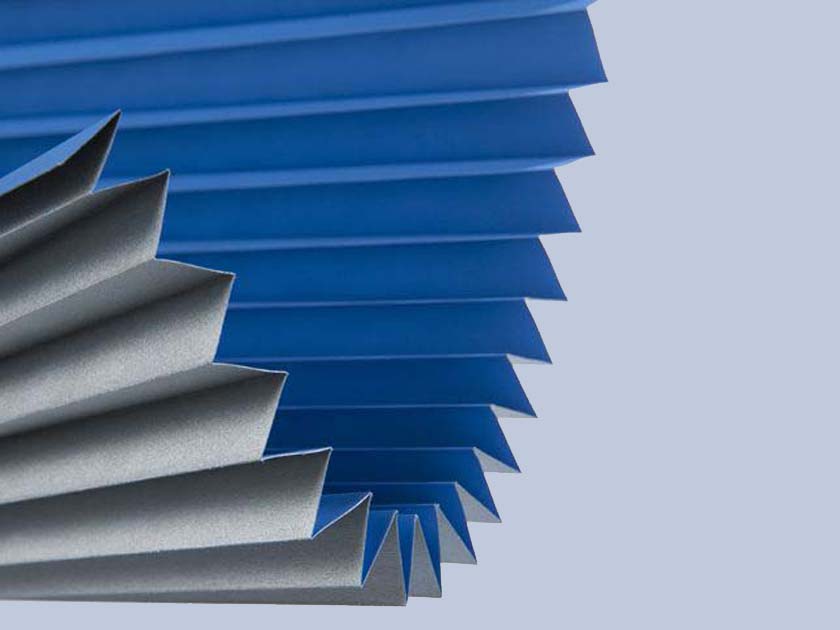

O-P-550-B2

Alu back coated

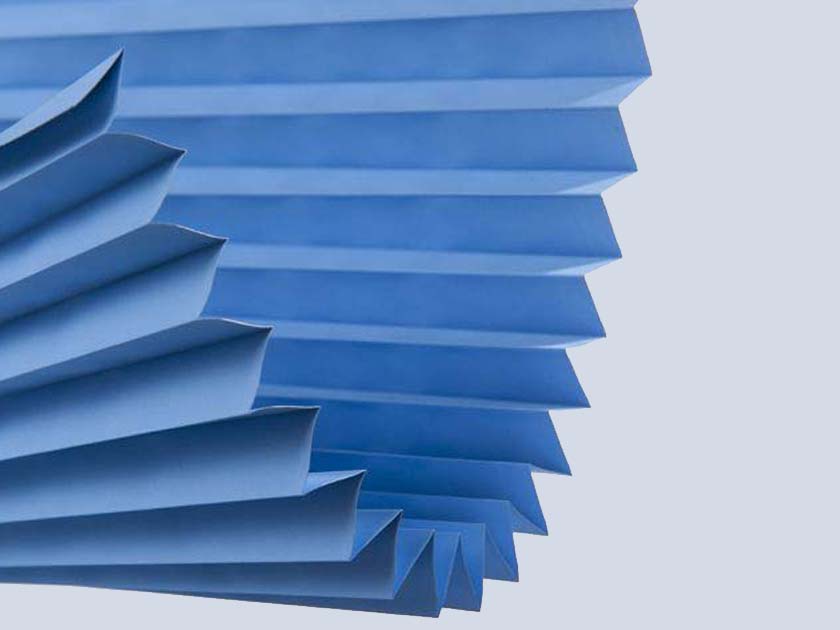

O-P-550-B1

Same color both side

Specifications

Series	O-P-550-B0	O-P-550-B0S	O-P-550-B1	O-P-550-B2
Features	white backing	white backing, pearlized coating	same color on both sides	silver coating
Composition	100% Polyester	100% Polyester	100% Polyester	100% Polyester
Standard Width	2000mm / 2400mm /2800mm	2000mm / 2400mm /2800mm	2000mm / 2400mm /2800mm	2000mm / 2400mm /2800mm
Mesh Weight	Abt. 160g/m²	Abt. 160g/m²	Abt. 160g/m²	Abt. 160g/m²
Thickness	Abt. 0.2 mm	Abt. 0.2 mm	Abt. 0.2 mm	Abt. 0.2 mm
PVC Content	Free	Free	Free	Free
Shading Rate	≥99%	≥99%	≥99.99%	≥99%
UV-Blocking	100%	100%	100%	100%
Color Fastness	≥5 Grade	≥5 Grade	≥5 Grade	≥5 Grade
Fire-retardant and the Standard	-	-	-	GB17591-2006 B1

Production Process

Weaving
	Professional weaving quipment from ltaly.

Raw material inspection
	Raw material inspection (100% inspection)

Dying


Color difference detection equipment
	Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated. High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement. This system is also available for day and night blinds.

Yarn dyed inspection
	Yarn dyed inspection (100% inspection)

Coating processing inspection
Coating processing inspection (100% inpection)

Pleating
	Pleating machines from Germany.

Finished product inspection
	Finished product inspection (100% inspection)

Packing

Applicable System & Accessories

Day-night system	Up-Down matching system	Ball chain controlled system with auto-lowering function

It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system	cordlock system	Arc-shaped motorized system

It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights.	Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated. High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement. This system is also available for day and night blinds.	Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.
