Alps

222PC-S/222PC-2S/222PC-3S/222PC-BS

Features:

Pleat Height:20mm/25mm/35mm

Products Certification:

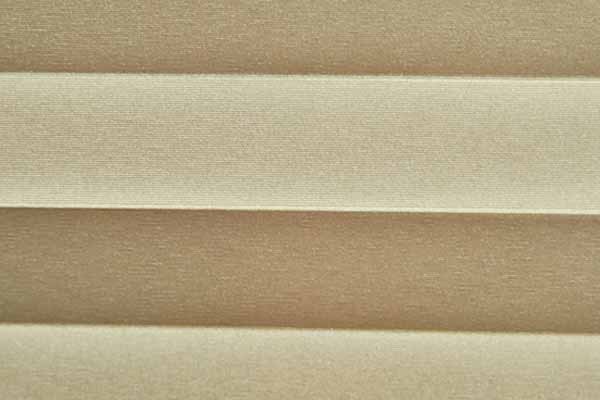

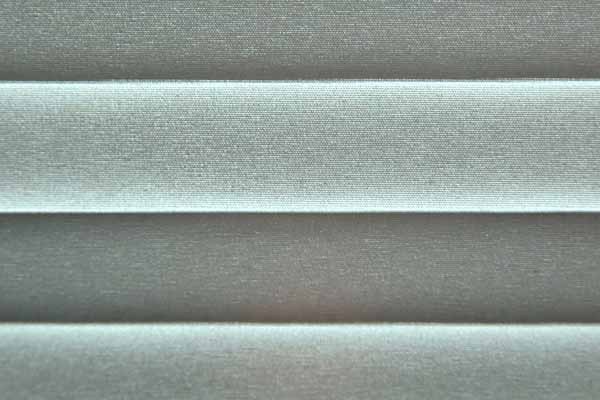

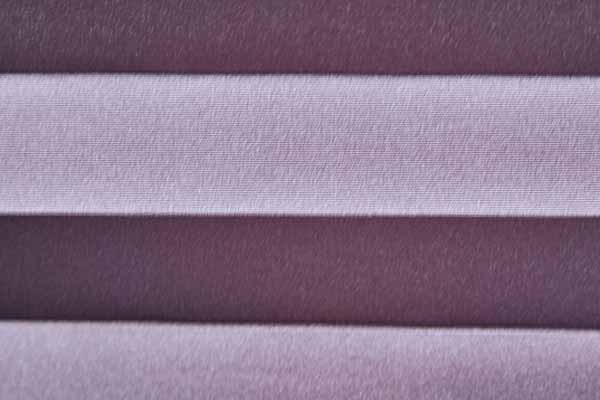

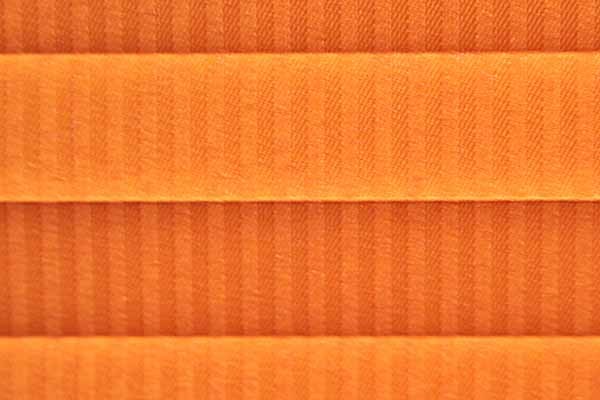

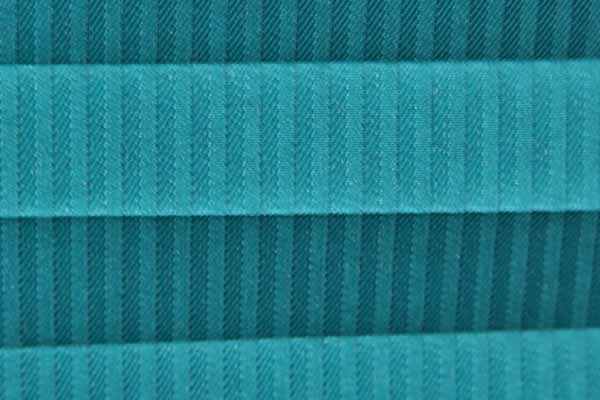

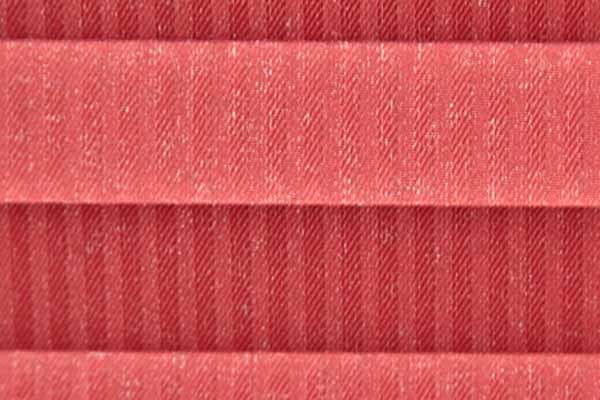

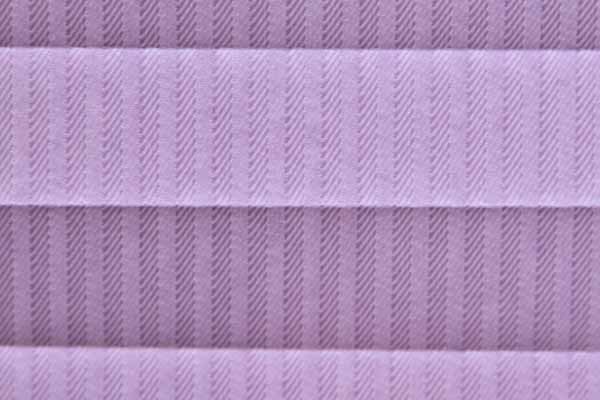

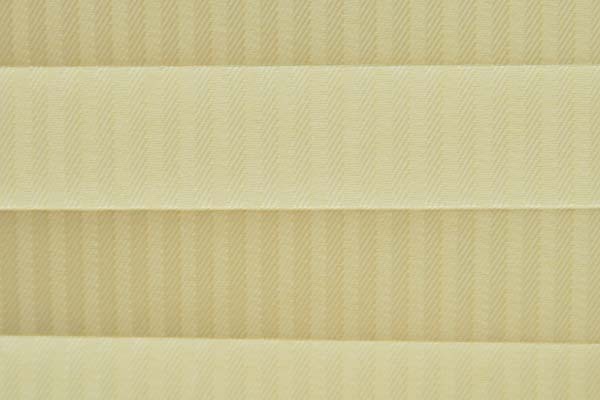

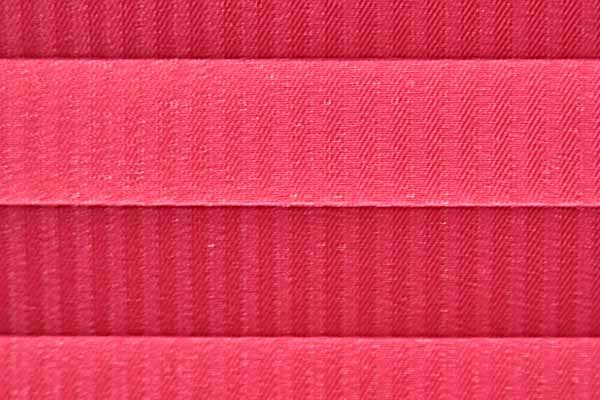

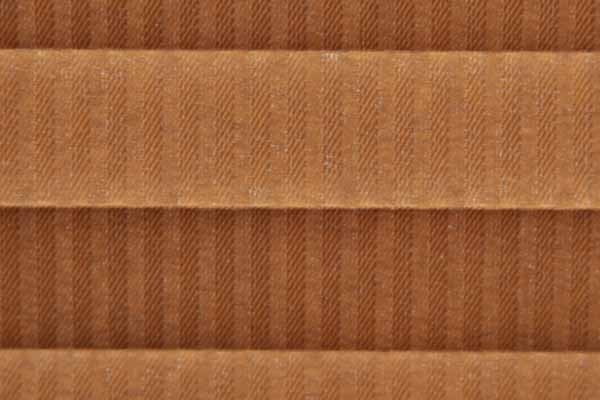

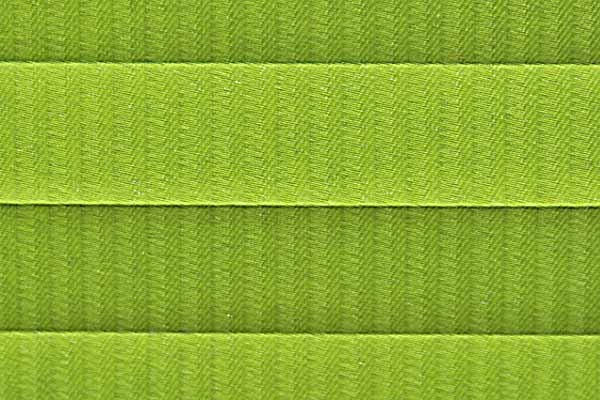

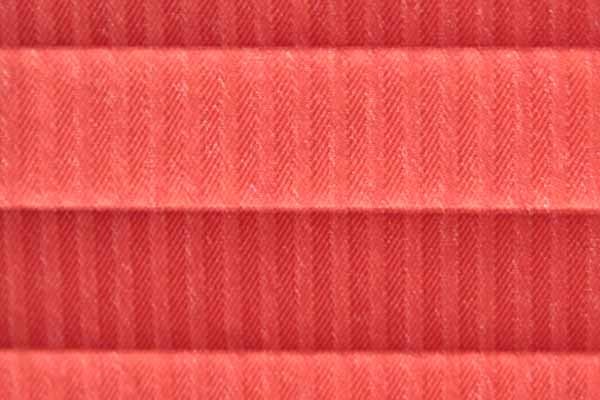

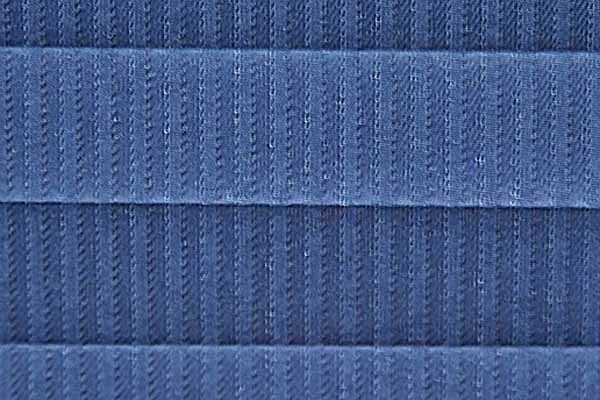

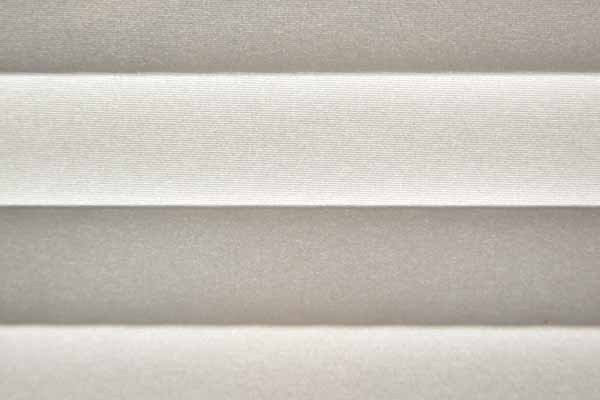

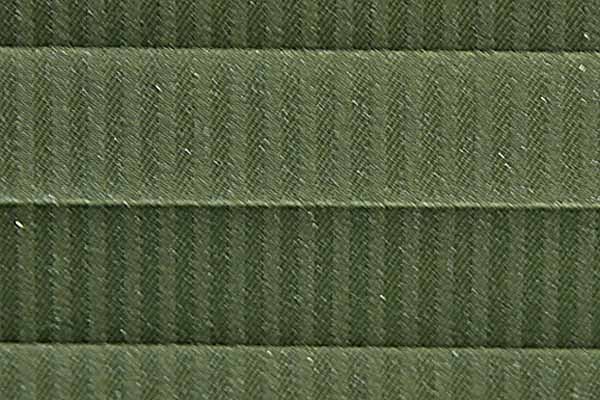

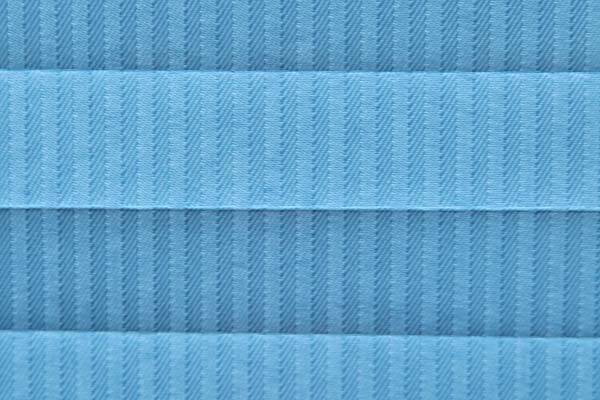

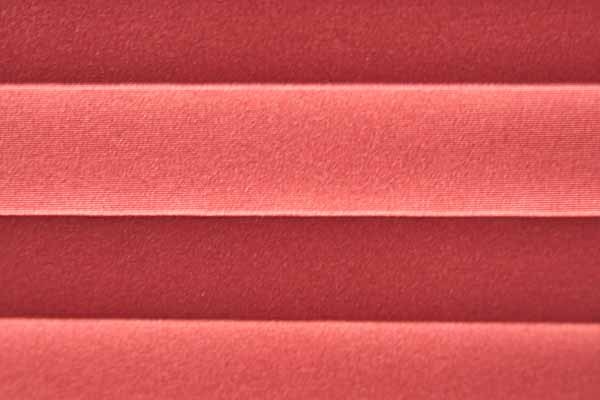

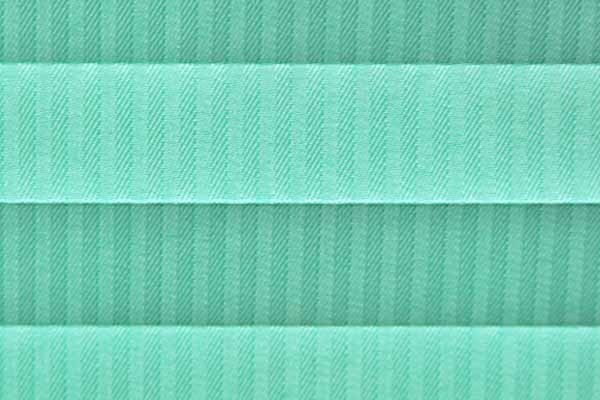

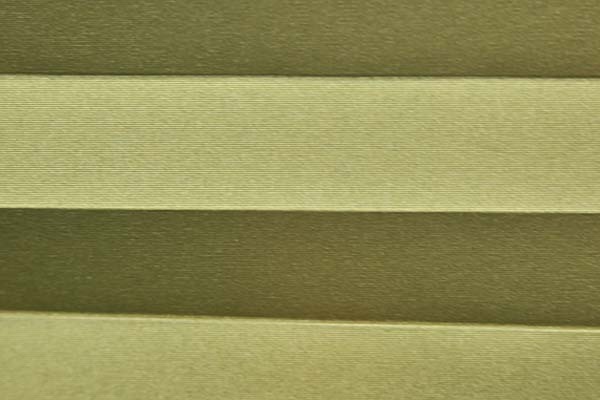

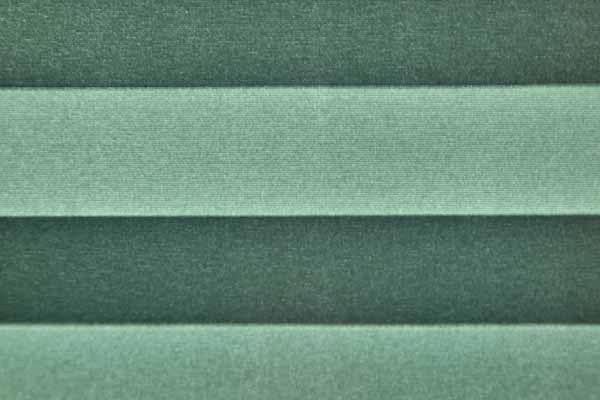

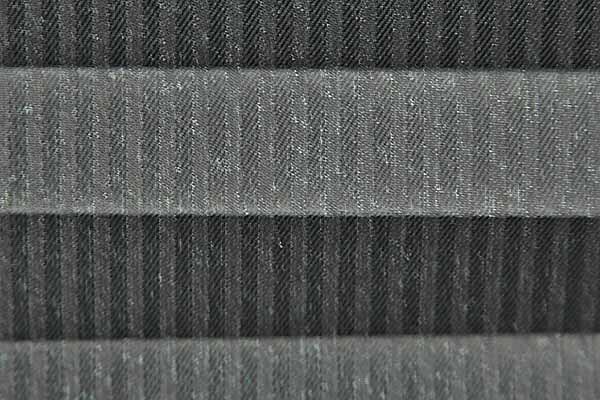

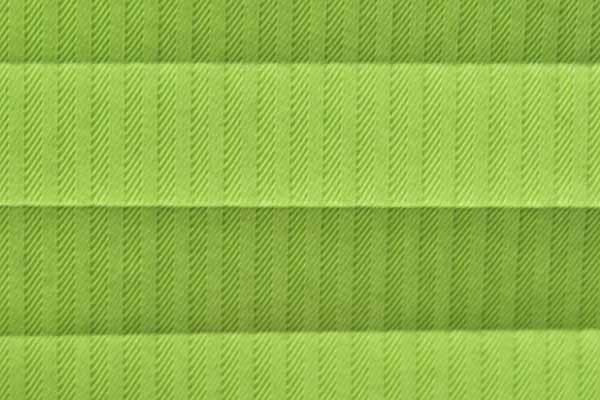

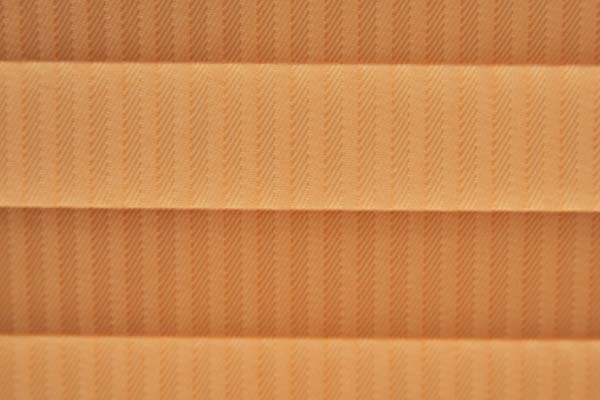

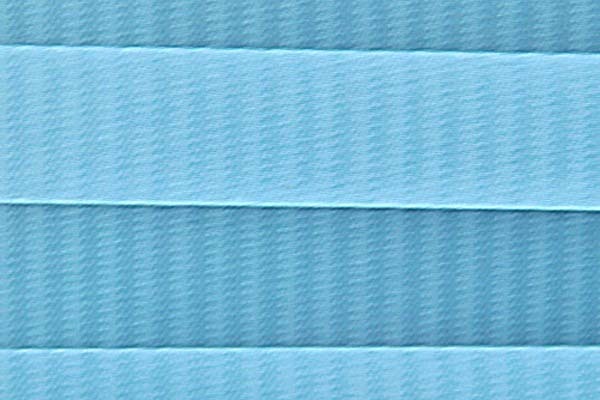

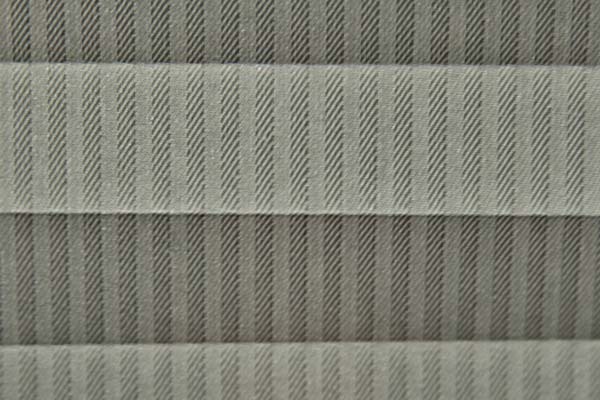

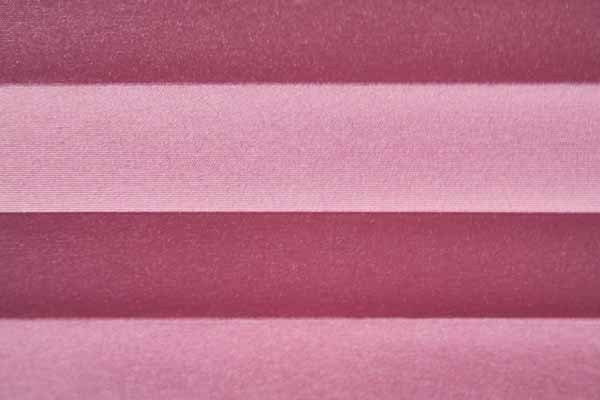

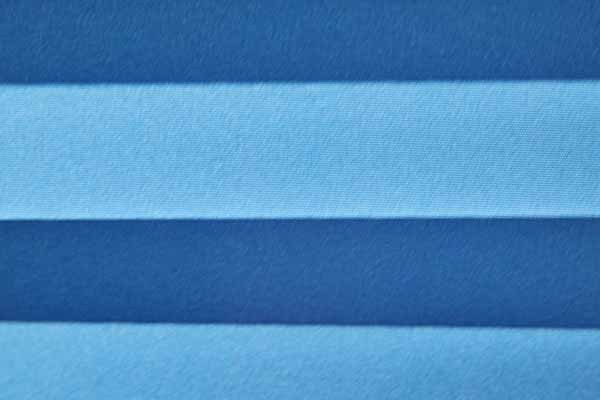

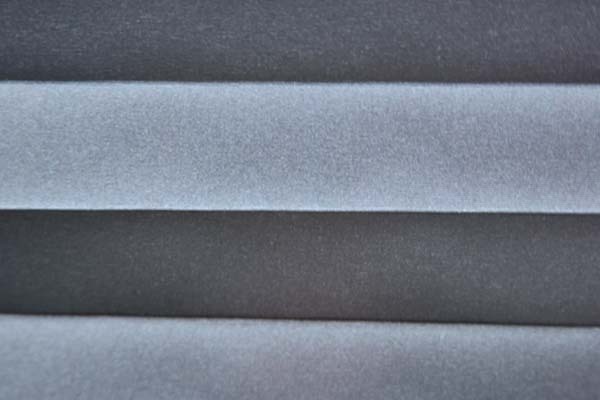

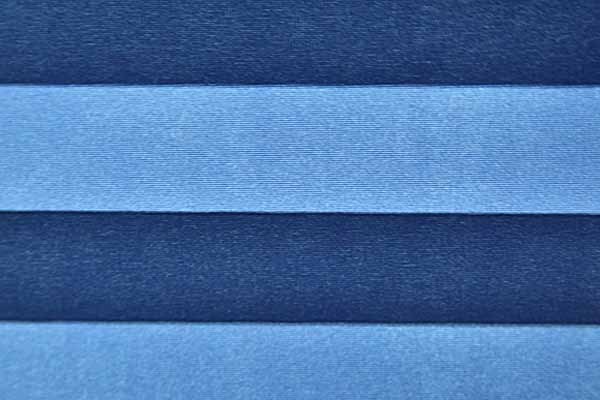

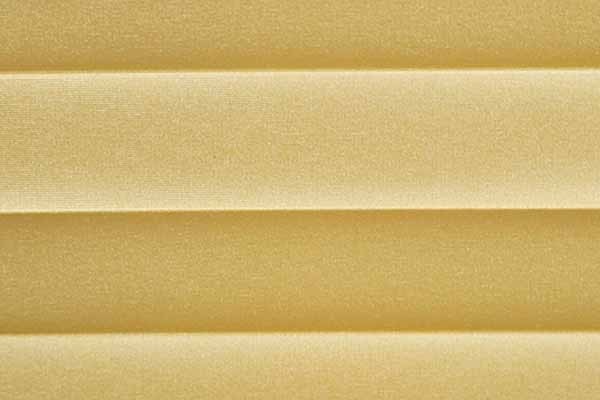

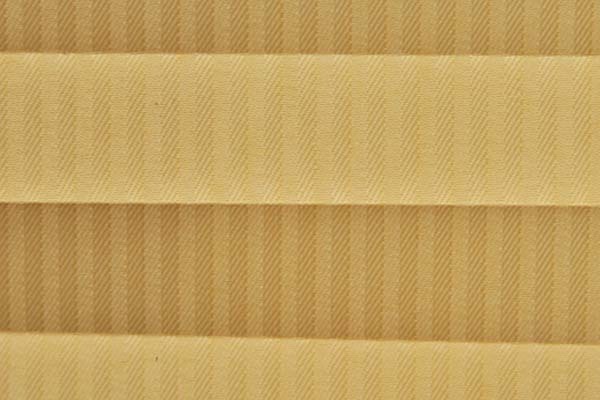

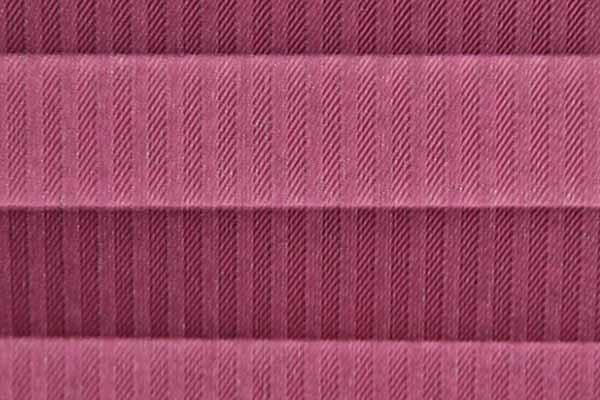

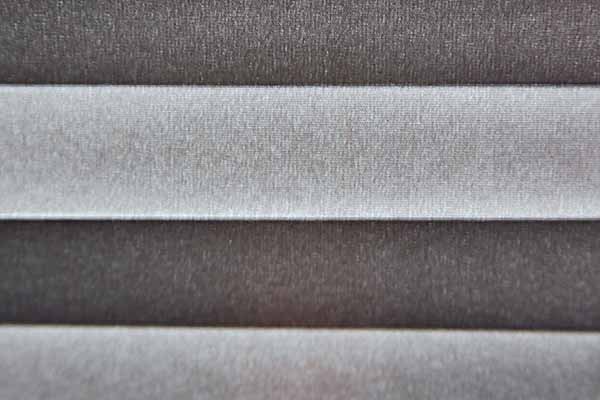

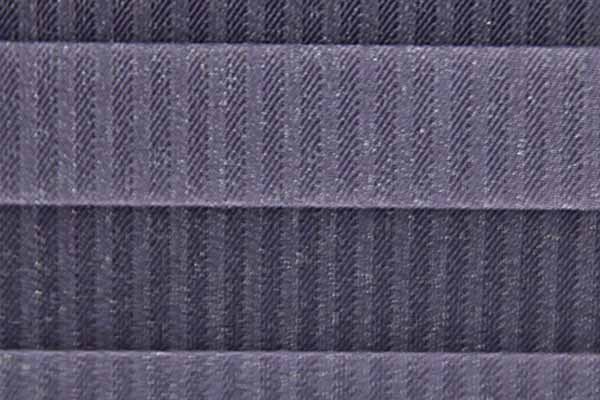

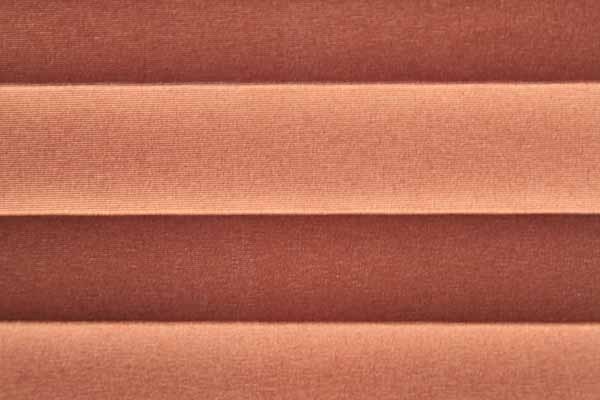

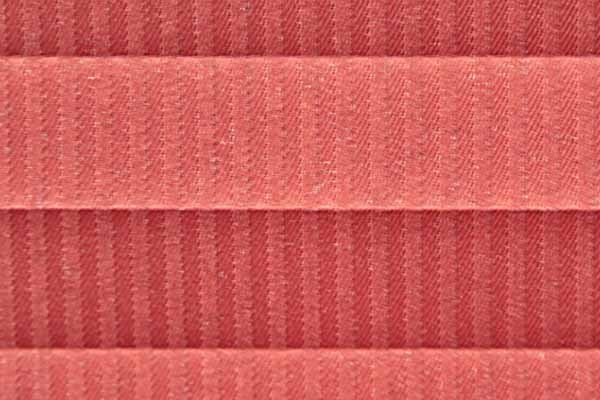

Available Color

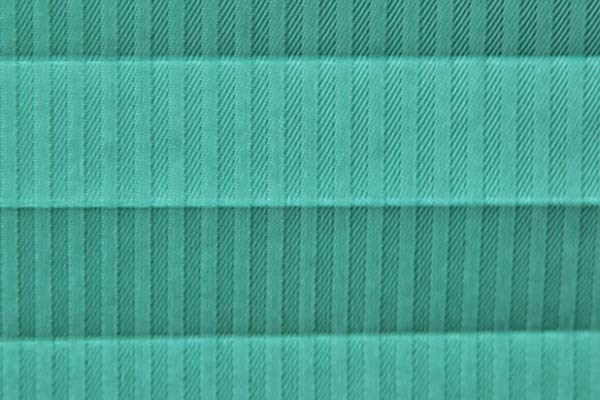

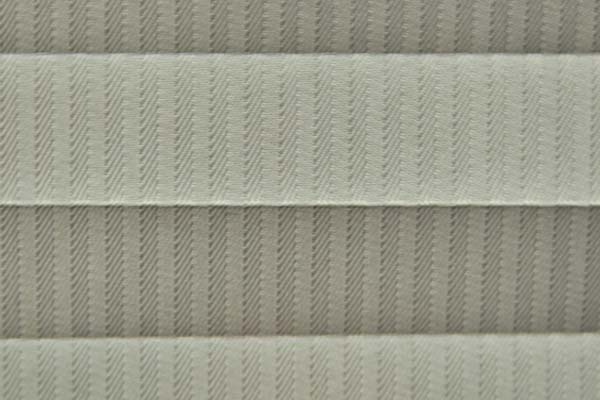

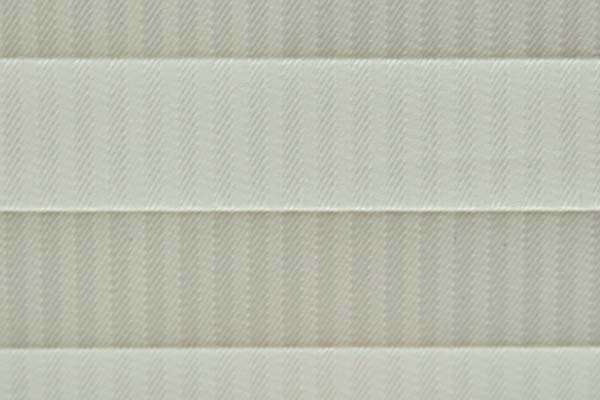

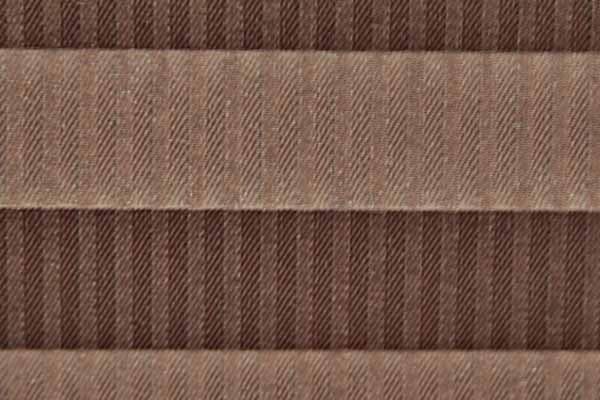

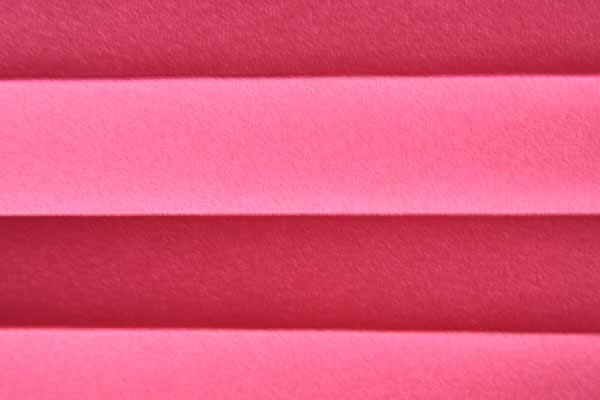

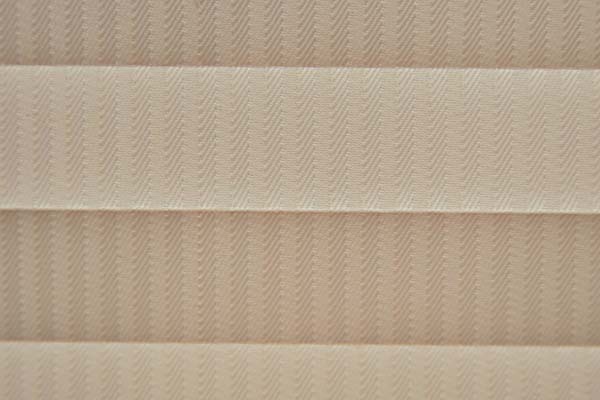

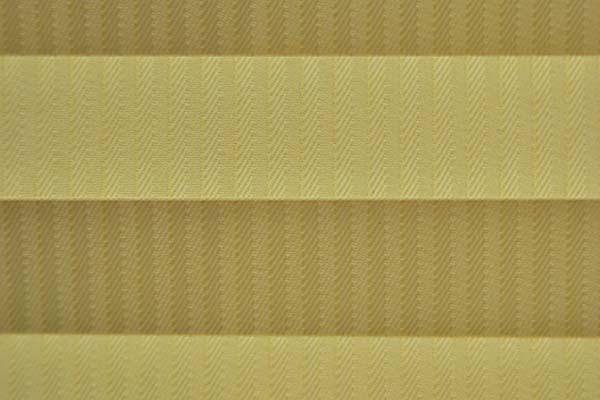

222PC01-S 222PC02-S 222PC03-S 222PC04-S 222PC05-S 222PC06-S 222PC07-S 222PC08-S 222PC09-S 222PC10-S 222PC11-S 222PC12-S 222PC13-S 222PC14-S 222PC15-S 222PC16-S 222PC17-S 222PC18-S 222PC19-S 222PC20-S 222PC21-S 222PC22-S 222PC23-S 222PC24-S 222PC25-S 222PC26-S 222PC27-S 222PC28-S 222PC29-S 222PC30-S 222PC01-2S 222PC02-2S 222PC03-2S 222PC04-2S 222PC05-2S 222PC10-2S 222PC11-2S 222PC14-2S 222PC16-2S 222PC17-2S 222PC18-2S 222PC23-2S 222PC26-2S 222PC28-2S 222PC32-2S 222PC33-2S

Product Description

With 50 standard color, ALPS series are available for many different coating technology like pearlized coating( in front side, back side or both side) or aluminium powder coating in back side. It's complies with Oeko-Tex 100 and GREENGUARD standard.

ALPS has very beautiful and neat outlook, Alu. or pearlized coating make it has very good anti-UV performance, even shading and good privacy protection.

222PC: Basic dim out.

222PC-S: Pearlized coated with Merck's Pearlize powder from Germany in backside, more energy efficient.

222PC-2S: Pearlized coated in both sides, same and more vivid color.

222PC-3S: Perlized coated in front side, aluminium powder coating in back side, much better in energy saving.

222PC-BS: Perlized coated in front side, black out coated in back side (in white color).

Customized color available, standard pleated height is 20 mm, but 10 to 50 mm is also available, maximum width is 3000 mm.

Features

222PC-S

Front Pearlised

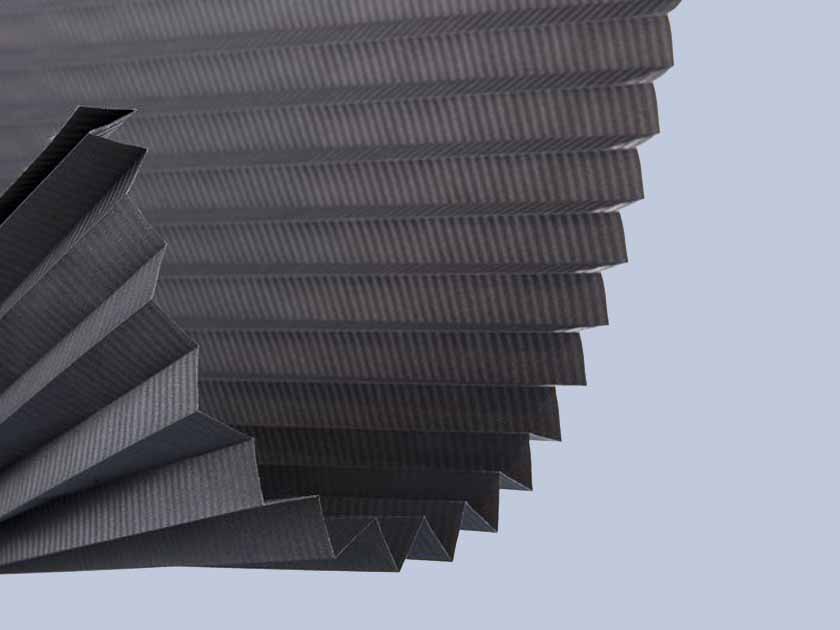

222PC-2S

Both Side Pearlised

222PC-3S

Front Pearlised, Backside Alu. Coated

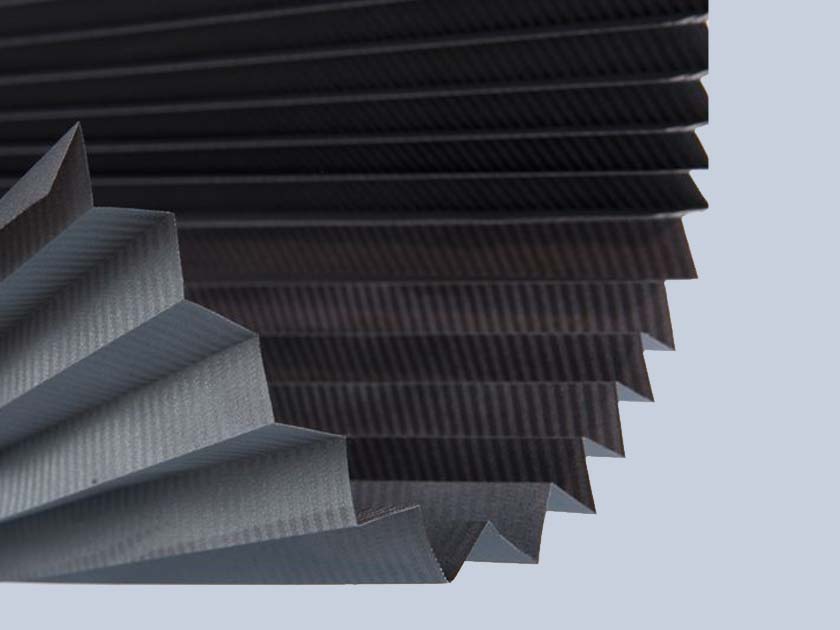

222PC-BS

Black-out

Specifications

Series	222PC-S	222PC-2S	222PC-3S	222PC-BS
Features	Back Pearlised	Both srde Pearlised	Front Pearlised alu back coated	Black-out, Front Pearlised
Composition	100% Polyester	100% Polyester	100% Polyester	100% Polyester
Standard Width	2000mm / 2400mm /2800mm	2000mm / 2400mm /2800mm	2000mm / 2400mm /2800mm	2000mm / 2400mm /2800mm
Mesh Weight	Abt. 100g/m²	Abt. 100g/m²	Abt. 100g/m²	Abt. 200g/m²
Thickness	Abt. 0.15 mm	Abt. 0.15 mm	Abt. 0.15 mm	Abt. 0.25 mm
PVC Content	Free	Free	Free	Free
Shading Rate	-	-	-	-
UV-Blocking	100%	100%	100%	100%
Color Fastness	≥4 Grade	≥4 Grade	≥4 Grade	≥4 Grade
Fire-retardant and the Standard	-	-	-	-

Production Process

Weaving
	Professional weaving quipment from ltaly.

Raw material inspection
	Raw material inspection (100% inspection)

Dying


Color difference detection equipment
	Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated. High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement. This system is also available for day and night blinds.

Yarn dyed inspection
	Yarn dyed inspection (100% inspection)

Coating processing inspection
Coating processing inspection (100% inpection)

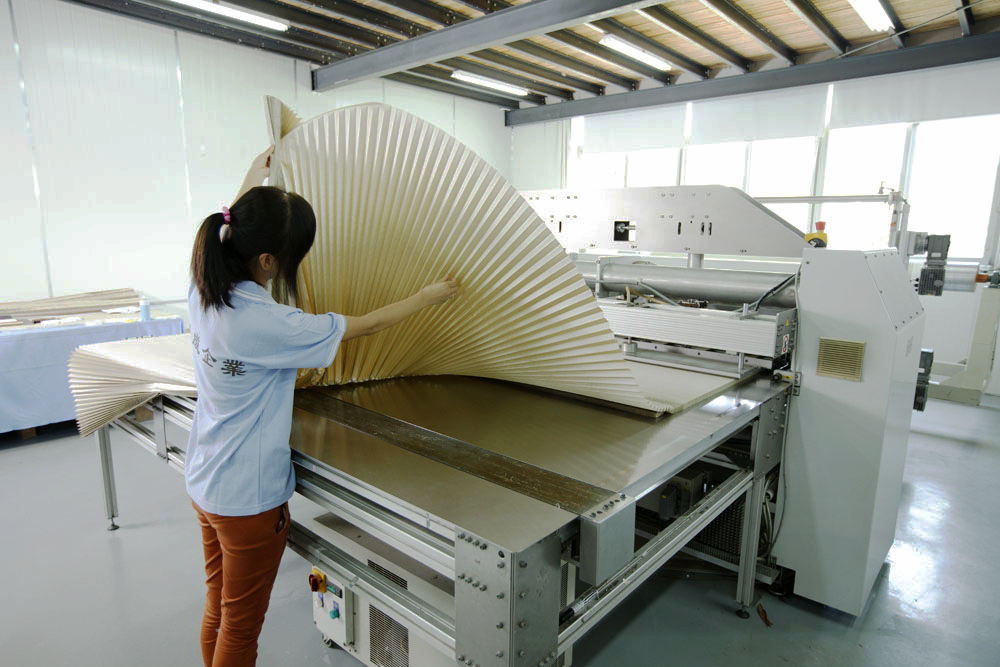

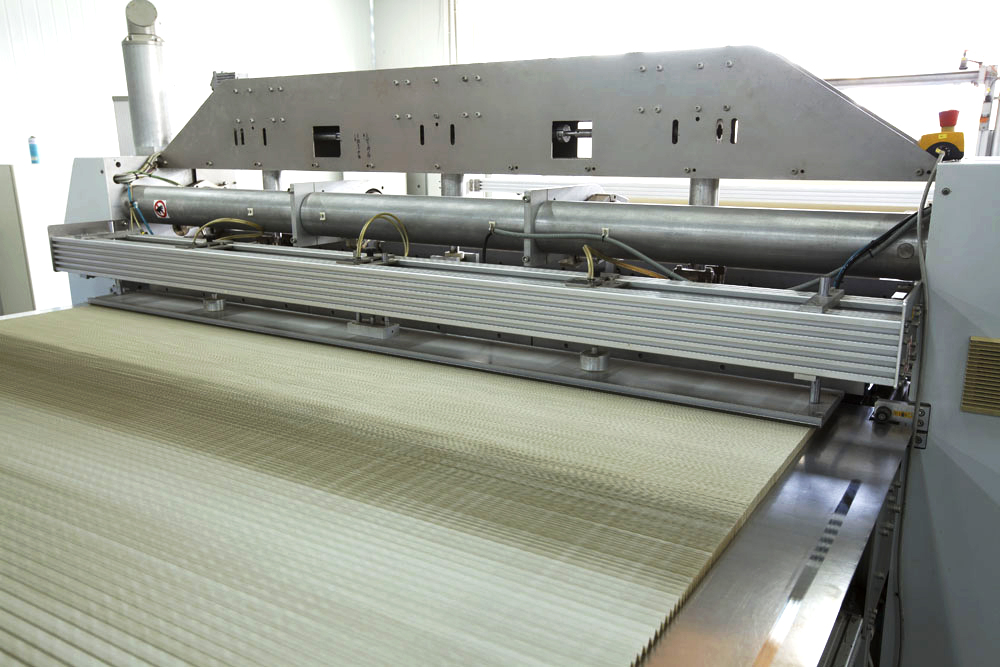

Pleating
	Pleating machines from Germany.

Finished product inspection
	Finished product inspection (100% inspection)

Packing

Applicable System & Accessories

Day-night system	Up-Down matching system	Ball chain controlled system with auto-lowering function

It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system	cordlock system	Arc-shaped motorized system

It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights.	Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated. High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement. This system is also available for day and night blinds.	Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.
