Hamersley

333F/333F-B/333DF/333PF/333GF

Features:

Pleat Height:15mm/20mm/25mm

38mm/46mm

333GF：25mm/38mm/45mm

Products Certification:

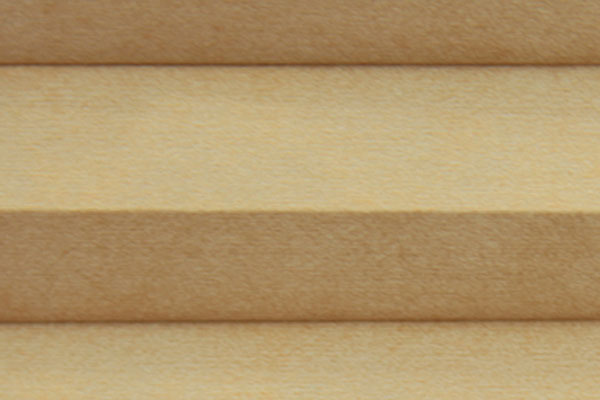

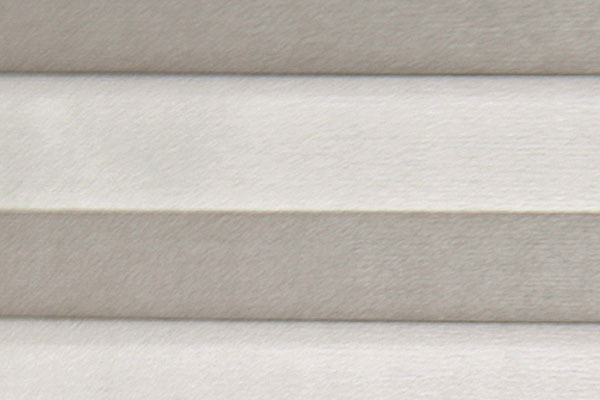

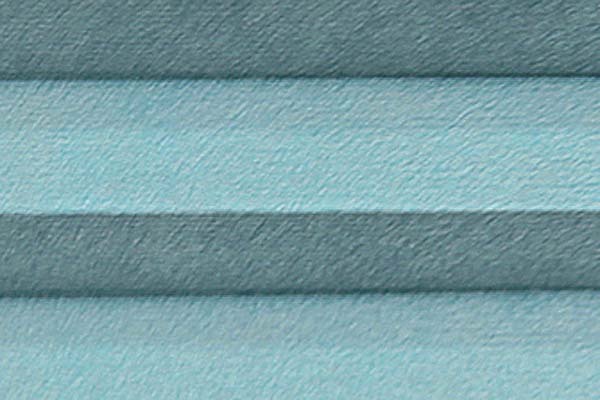

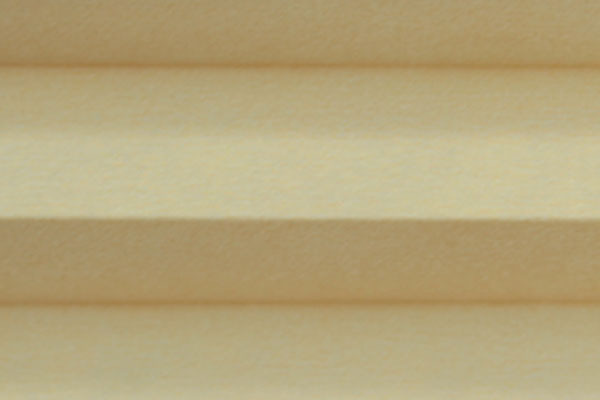

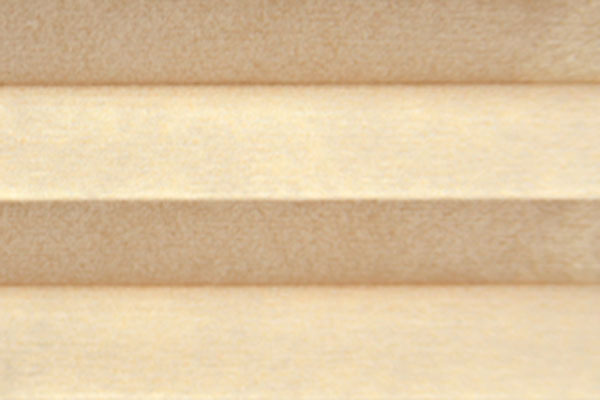

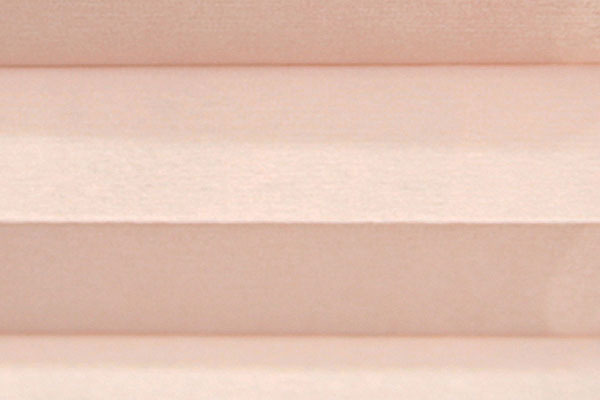

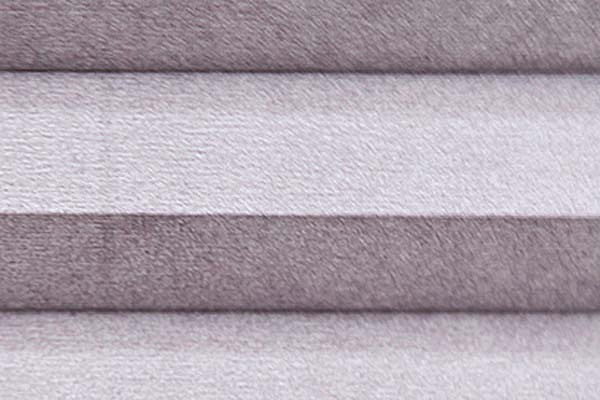

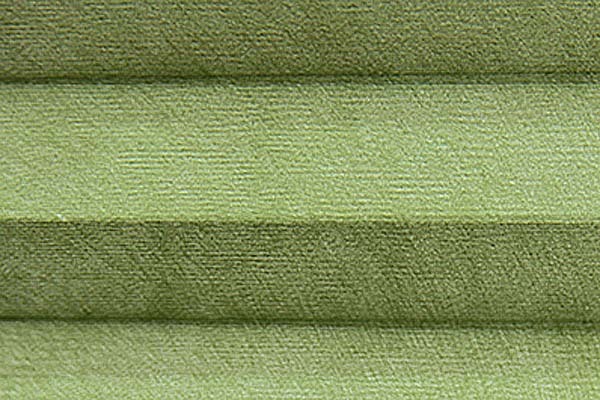

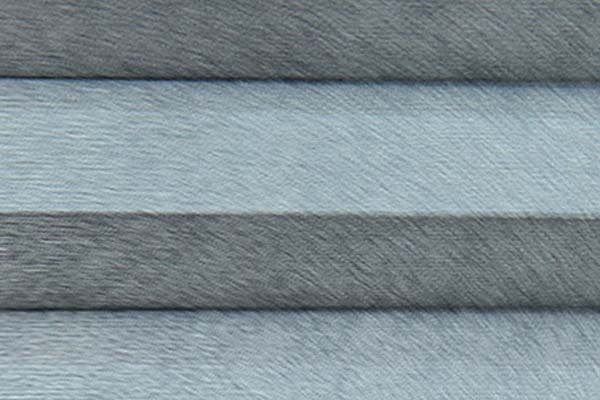

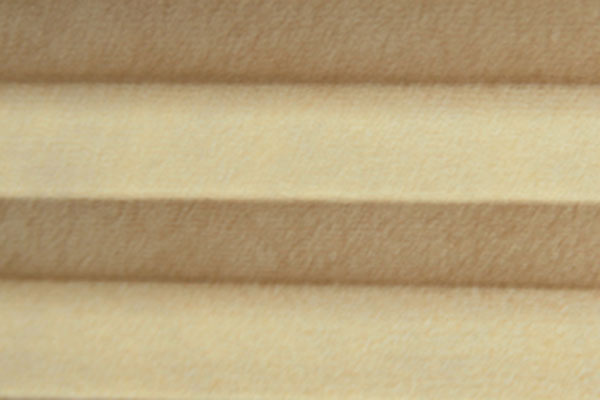

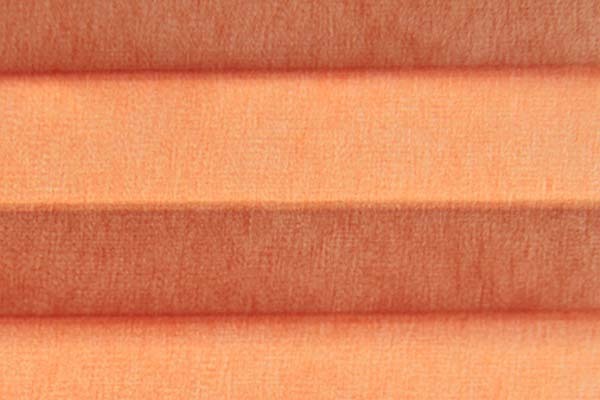

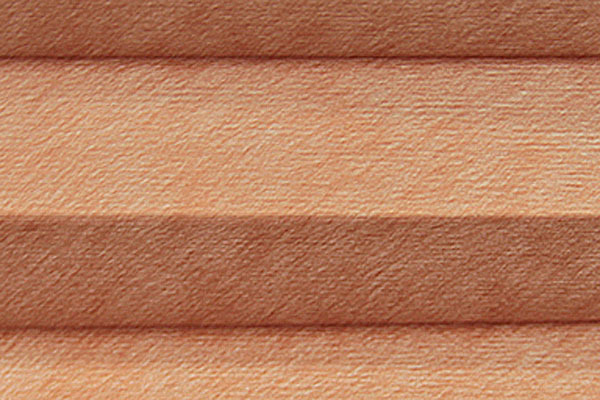

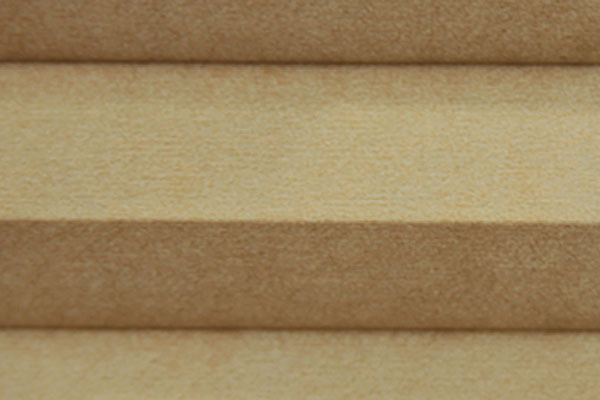

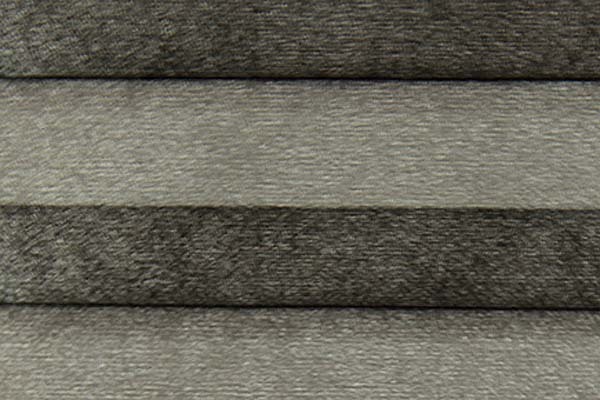

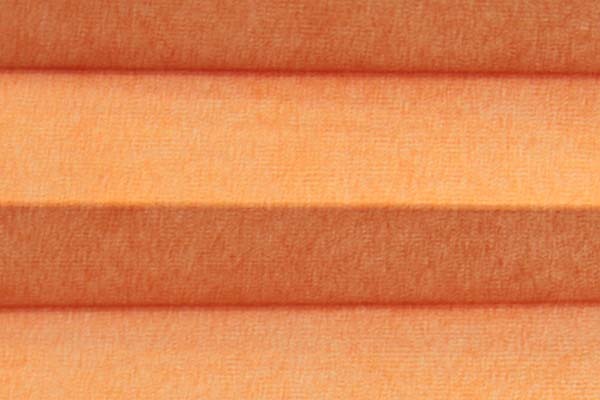

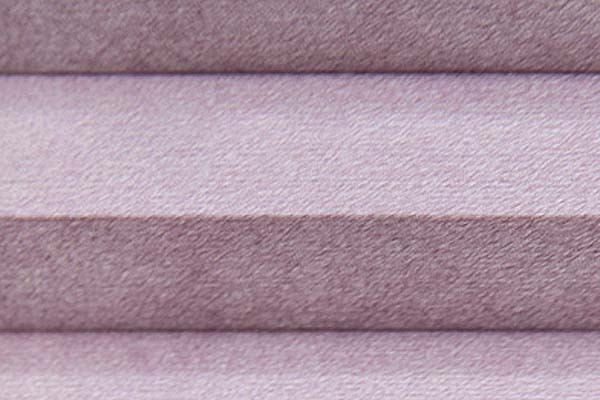

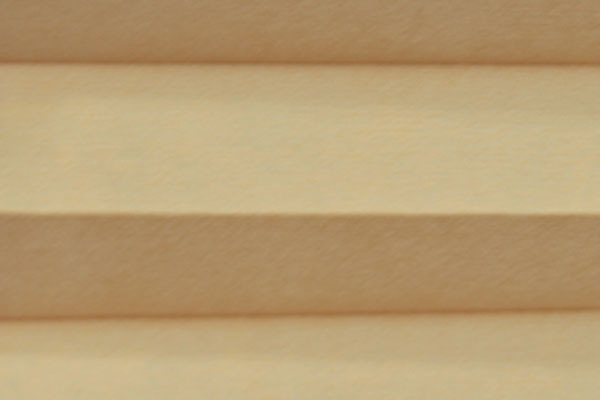

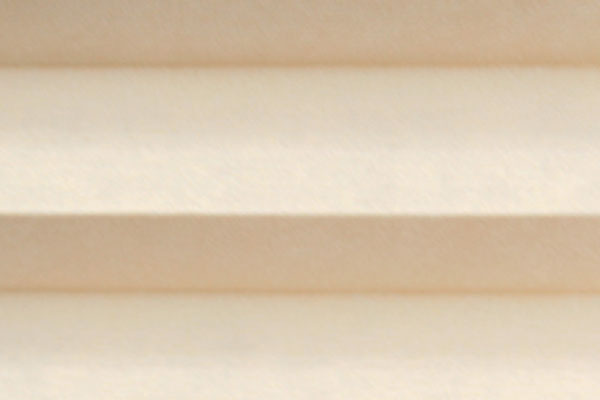

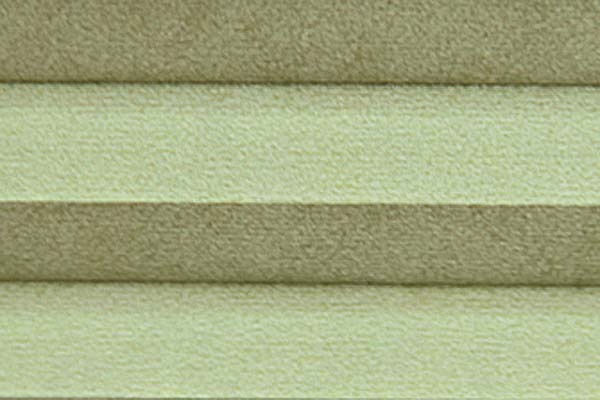

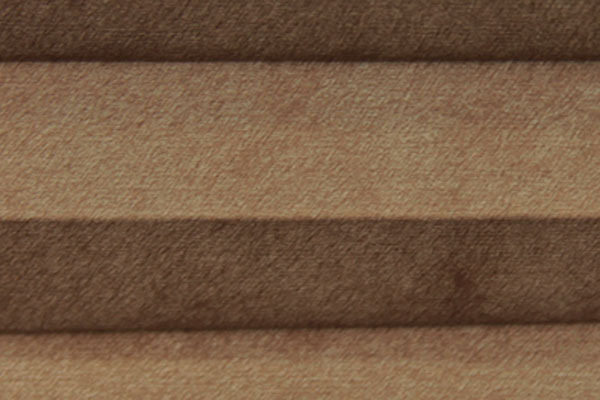

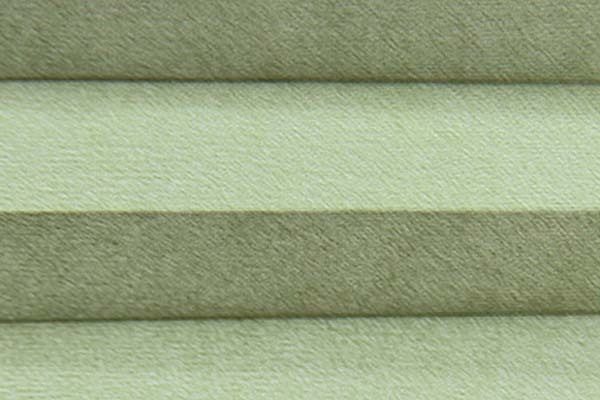

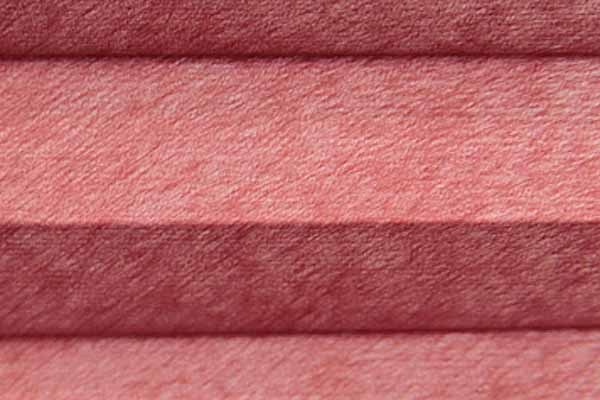

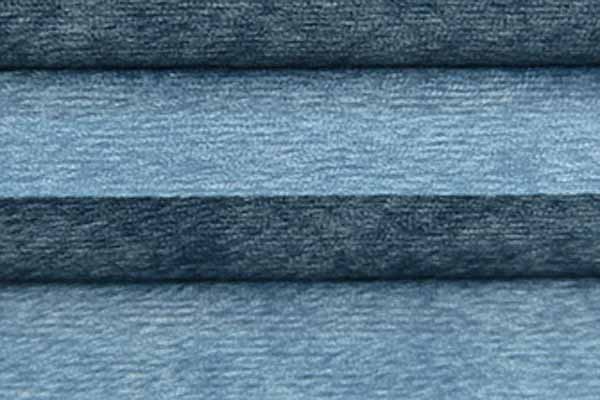

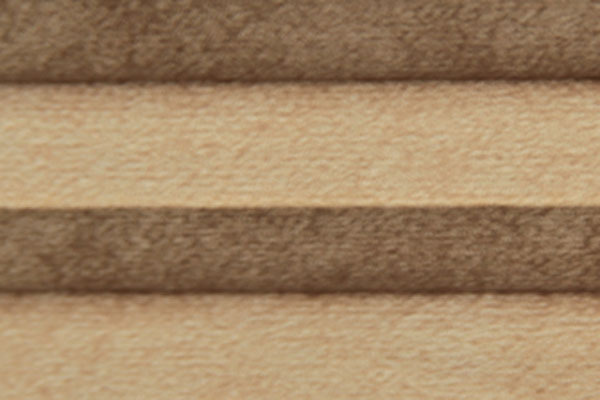

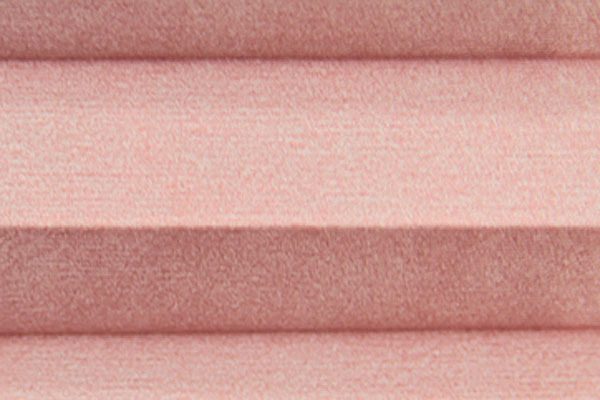

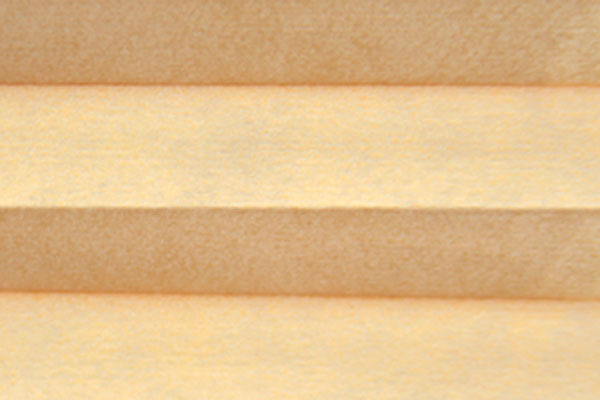

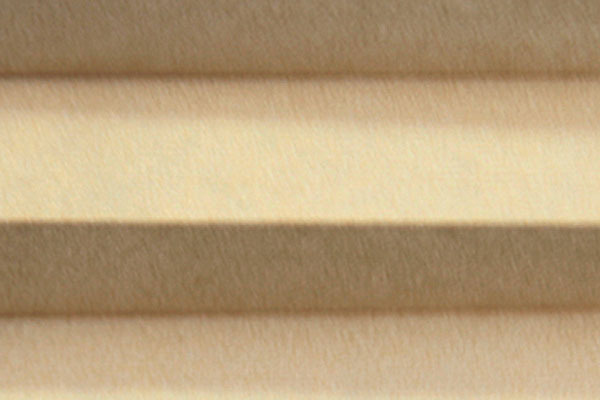

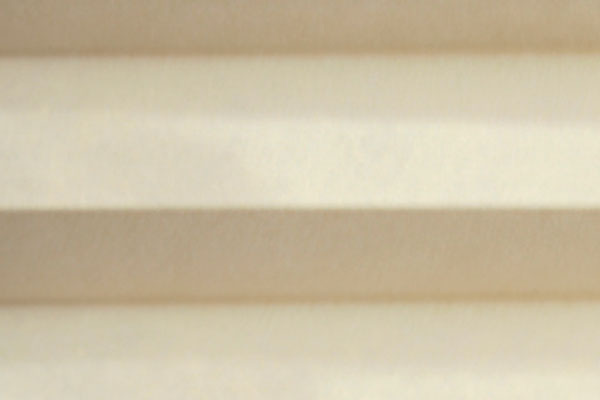

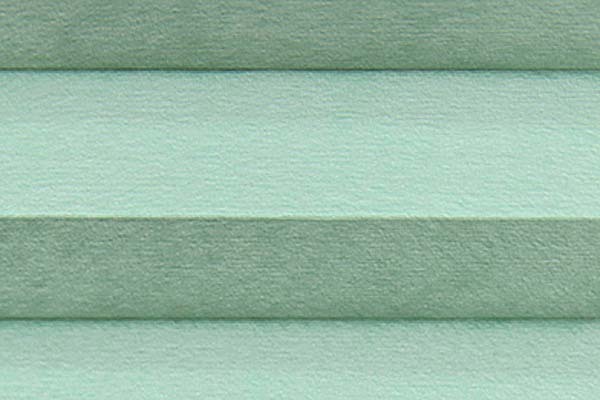

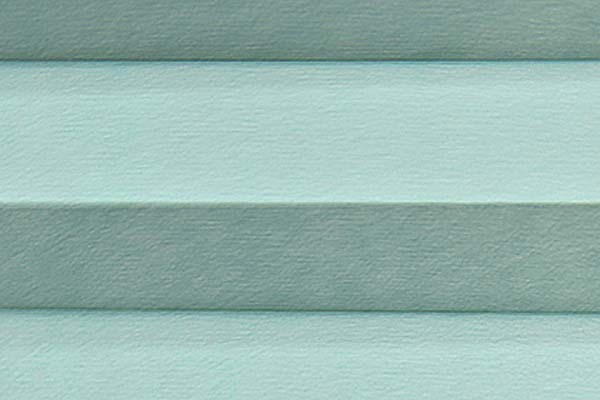

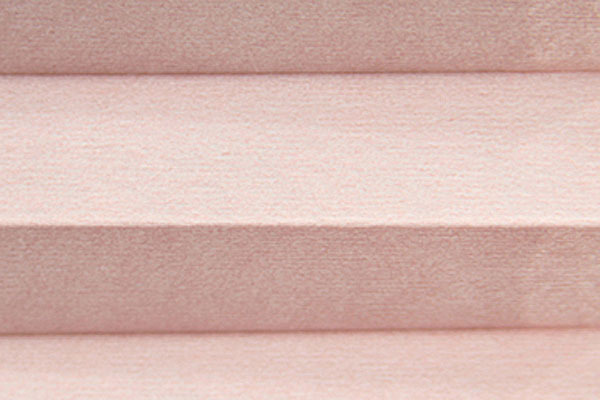

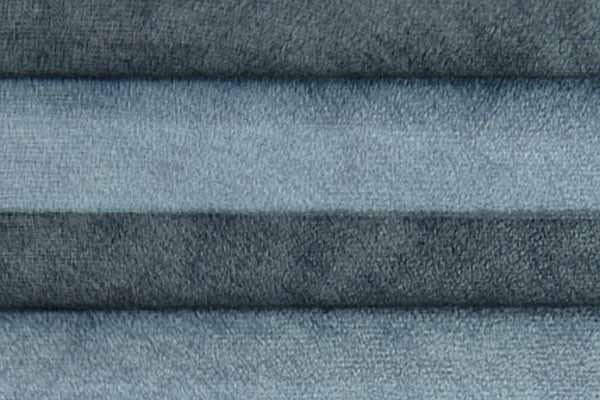

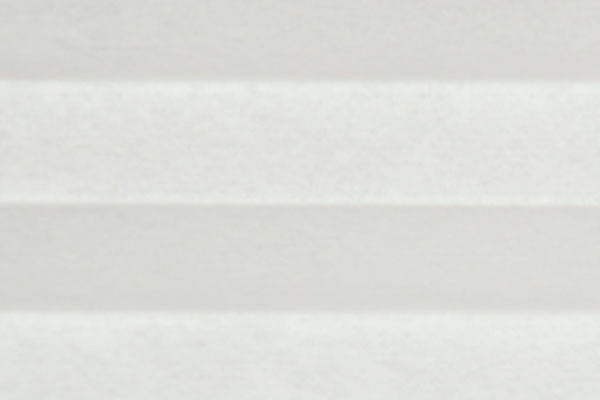

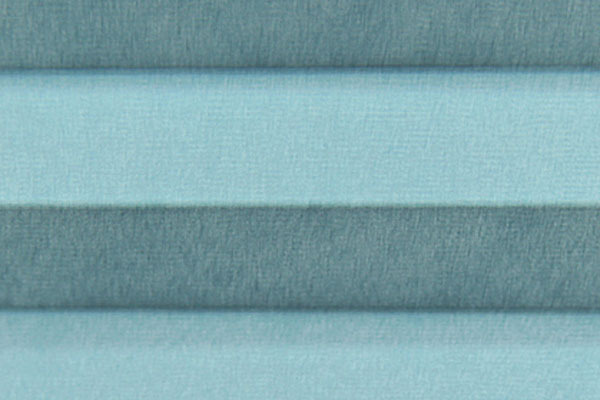

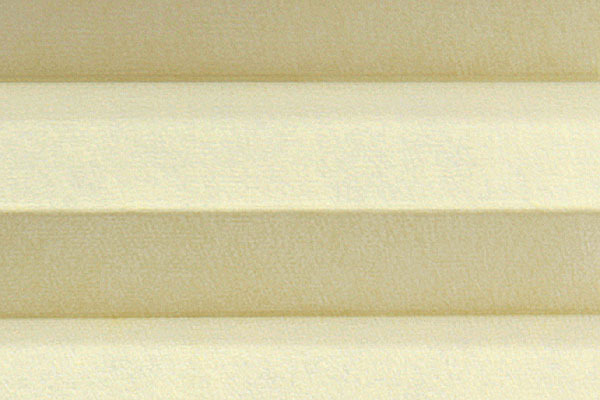

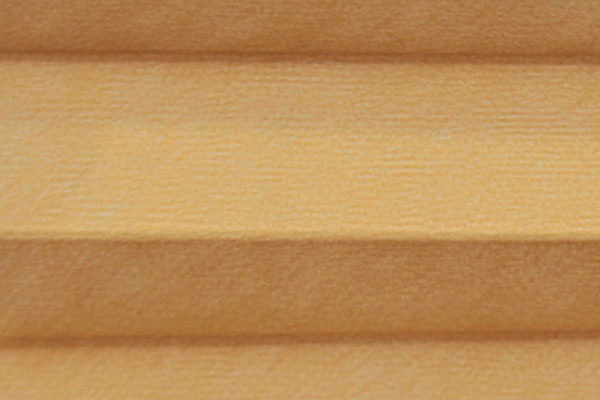

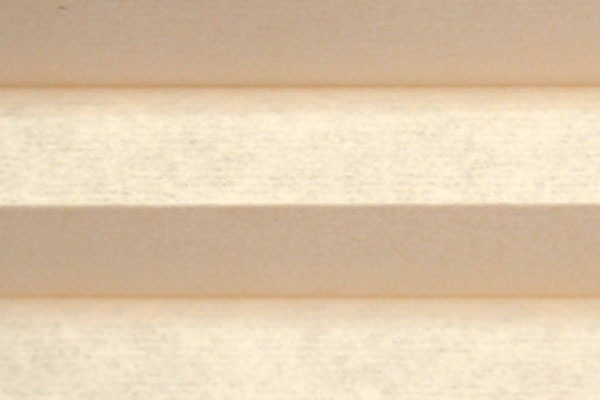

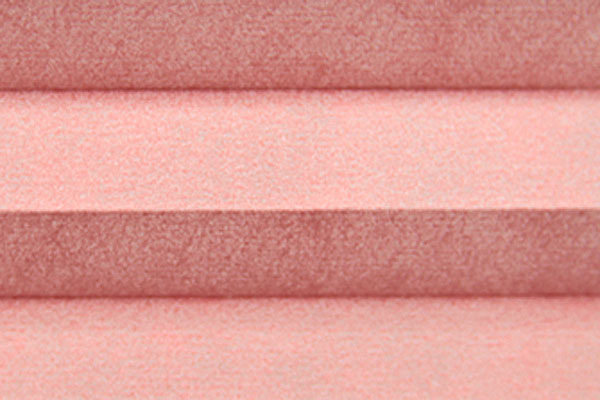

Available Color

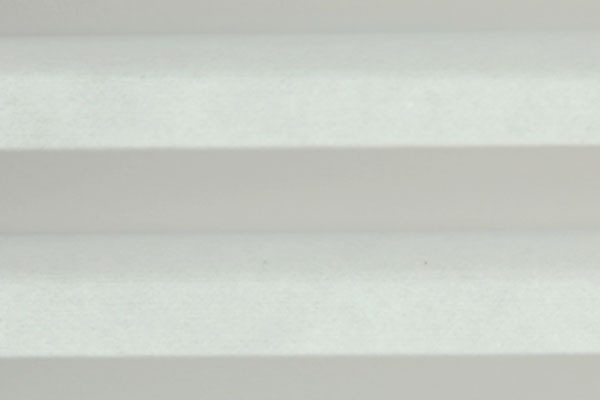

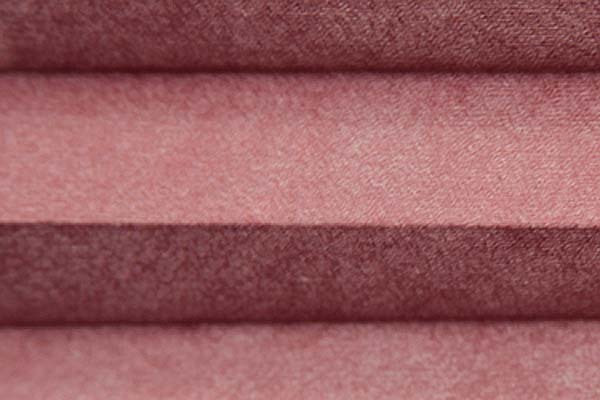

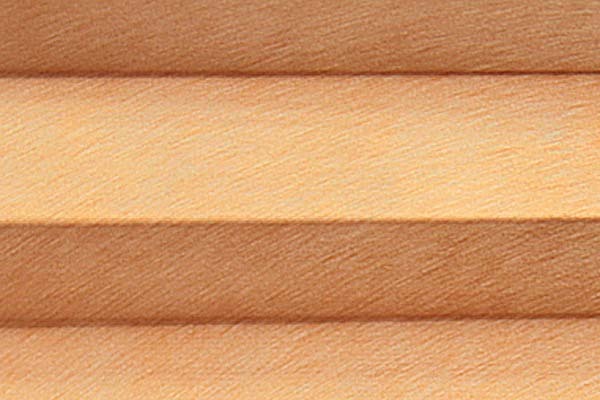

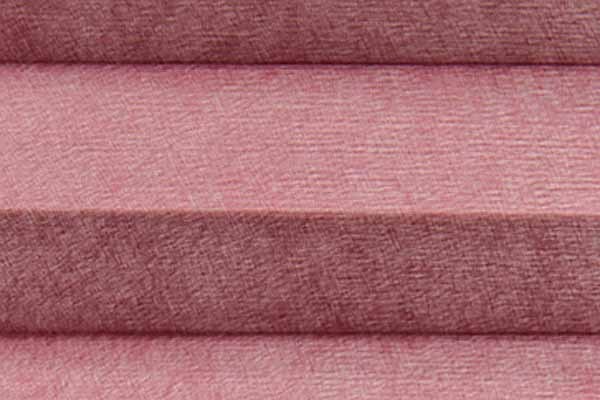

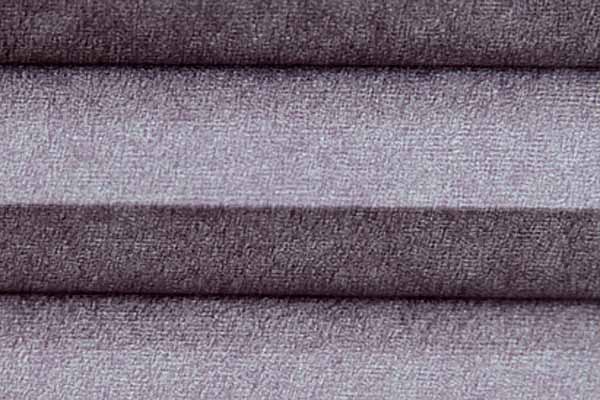

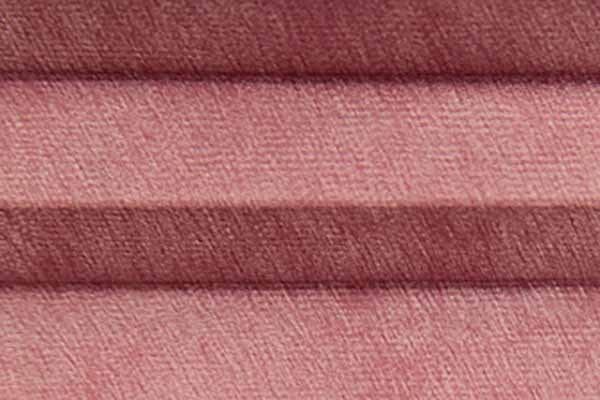

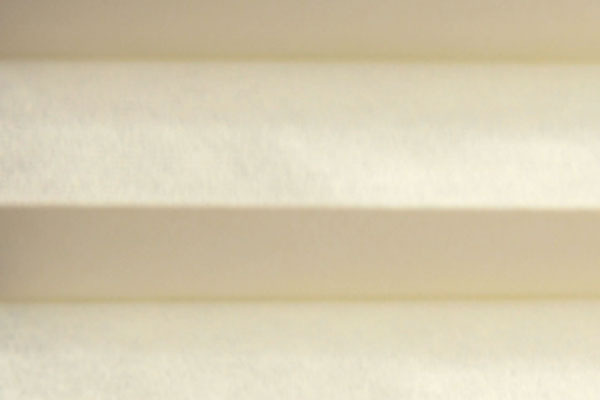

333F01/38 333F02/38 333F03/38 333F04/38 333F05/38 333F06/38 333F07/38 333F08/38 333F09/38 333F10/38 333F11/38 333F12/38 333F13/38 333F14/38 333F15/38 333F16/38 333F17/38 333F18/38 333F19/38 333F20/38 333F21/38 333F22/38 333F23/38 333F24/38 333F25/38 333F26/38 333F27/38 333F28/38 333F29/38 333F30/38 333F31/38 333F32/38 333F33/38 333F34/38 333F35/38 333F36/38 333F01/25 333F03/25 333F04/25 333F06/25 333F08/25 333F09/25 333F12/25 333F15/25 333F18/25 333F24/25 333F27/25 333F29/25

Product Description

Hamersley series are our first honeycomb shades spunlaced non-woven fabrics. The fabrics has outstanding performance in energy saving and sound absorption. it complies with Oeko-Tex 100 and GREENGUARD standard. Cold knife can be applied in processing.

333F: Dim out single cell honeycomb shades fabrics.

333F-B: Black out single cell honeycomb shades fabrics.

333PF: Dim out single cell honeycomb shades fabrics with special design in shape and color ( in the front side, there are two color).

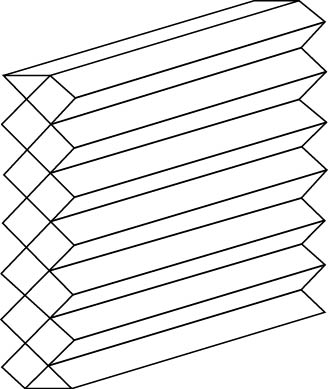

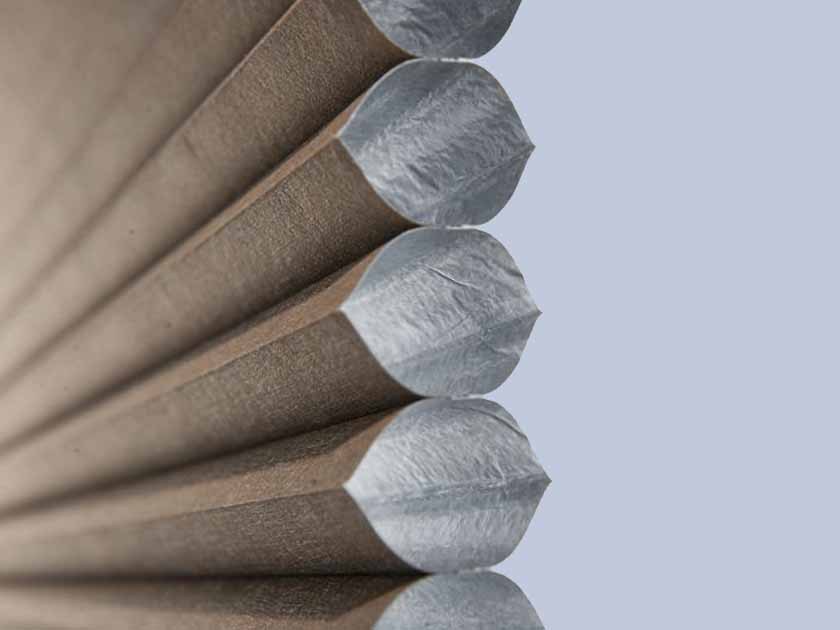

333DF: Dim out double cell honeycomb shades fabrics.

The back side of 333F, 333F-B and 333DF are in white color, you can also choose to be the same color as the front side. Double cell honeycomb fabrics have better performance in energy saving than the single cell honeycomb fabrics.

Standard Width is 3000 mm, 3 type of different pleats height: 25 / 38 / 45 mm.

333GF-25/38/45 series are our first dim out single cell honeycomb shades fabrics with domestic non-woven fabrics.

The fabrics has outstanding performance in energy saving and sound absorption.

It complies with Oeko-Tex 100 and GREENGUARD standard.

Low MOQ requirment.

Features

333F/333PF

Dim-out

333DF

Dim-out

333F-B

Black-out

333GF

Dim-out

Specifications

Series	333F	333F-B	333DF	333PF	333GF
Features	dim out	blackout	double cell	special dim out	dim out
Composition	100% non woven	100% non woven	100% non woven	100% non woven	100% non woven
Standard Width	3000mm	3000mm	3000mm	3000mm	3000mm
Mesh Weight	Abt. 170g/m²	Abt. 220g/m²	Abt. 235g/m²	Abt. 180g/m²	Abt. 200g/m²
Thickness	Abt. 0.2 mm	Abt. 0.2 mm	Abt. 0.2 mm	Abt. 0.2 mm	Abt. 0.2 mm
PVC Content	Free	Free	Free	Free	Free
Shading Rate	-	≥99%	-	-	50%
UV-Blocking	100%	100%	100%	100%	85%
Color Fastness	≥4-5Grade	≥4-5Grade	≥4-5Grade	≥4-5Grade	≥4-5Grade
Fire-retardant and the Standard	-	-	-	-	-

Production Process

Raw material inspection
	Raw material inspection (100% inspection).




Yarn dyed inspection
	Yarn dyed inspection (100% inspection).

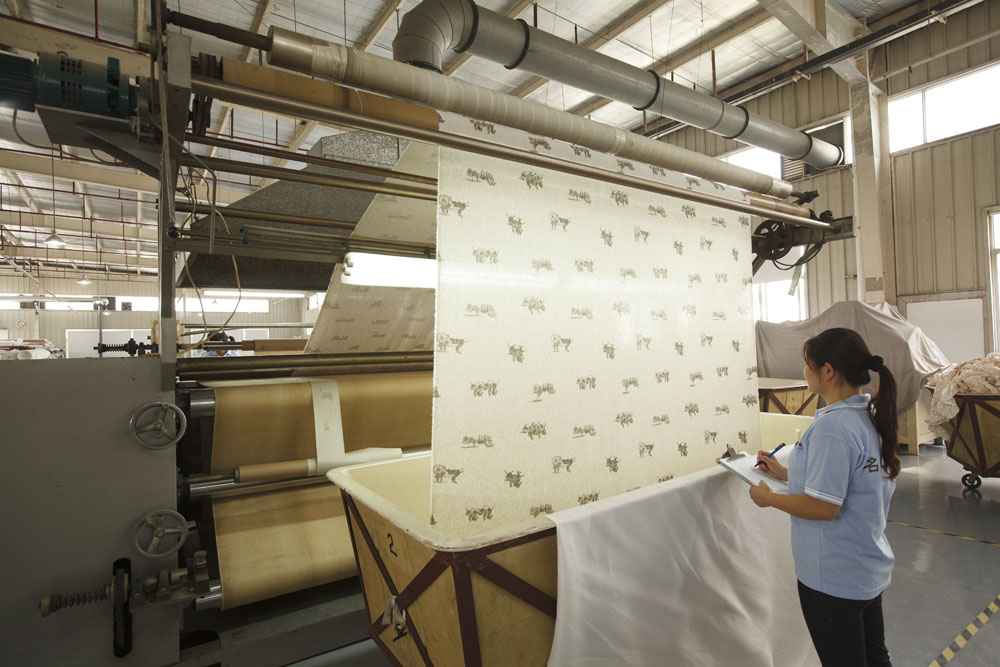

Coating processing inspection
Coating processing inspection (100% inpection)

Pleating
	Pleating machines from Germany.

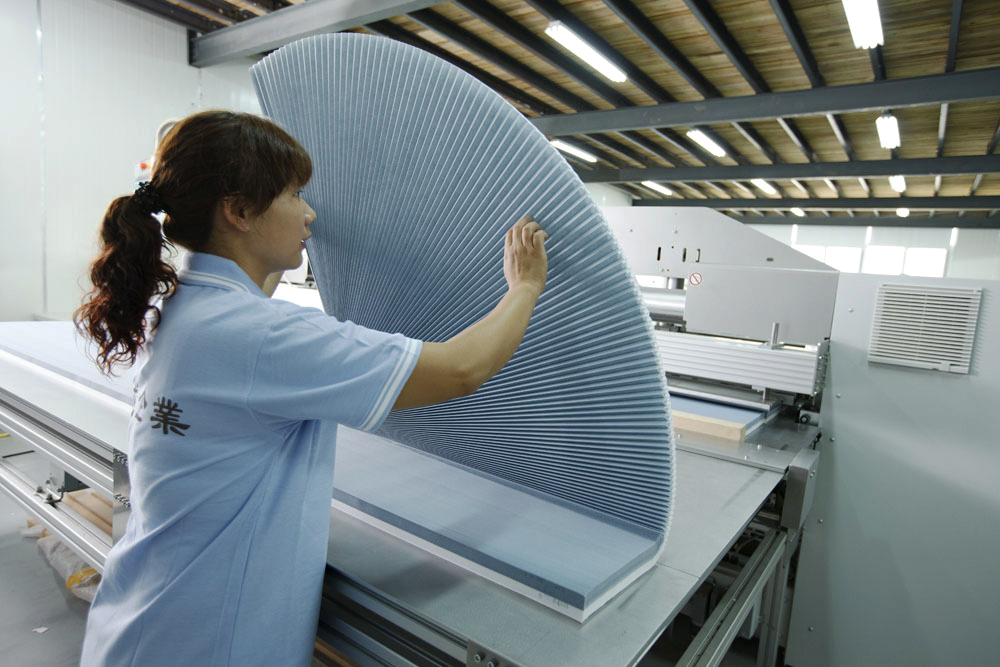

Finished product inspection
	Finished product inspection (100% inspection).

Packing

Applicable System & Accessories

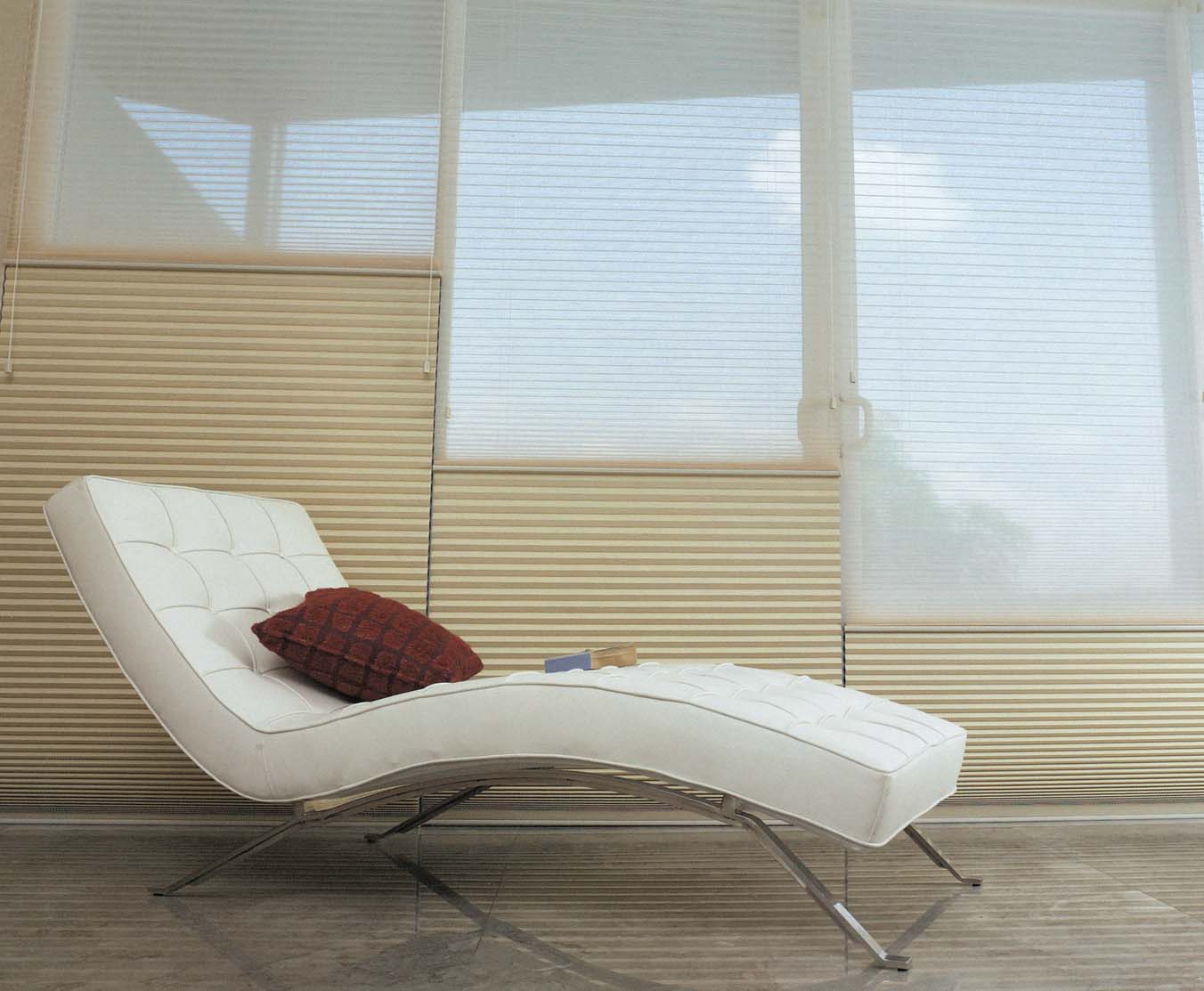

Day-night system	Up-Down matching system	Ball chain controlled system with auto-lowering function

It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system	Cordlock system	Arc-shaped motorized system

It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights.	Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated. High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement. This system is also available for day and night blinds.	Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.
